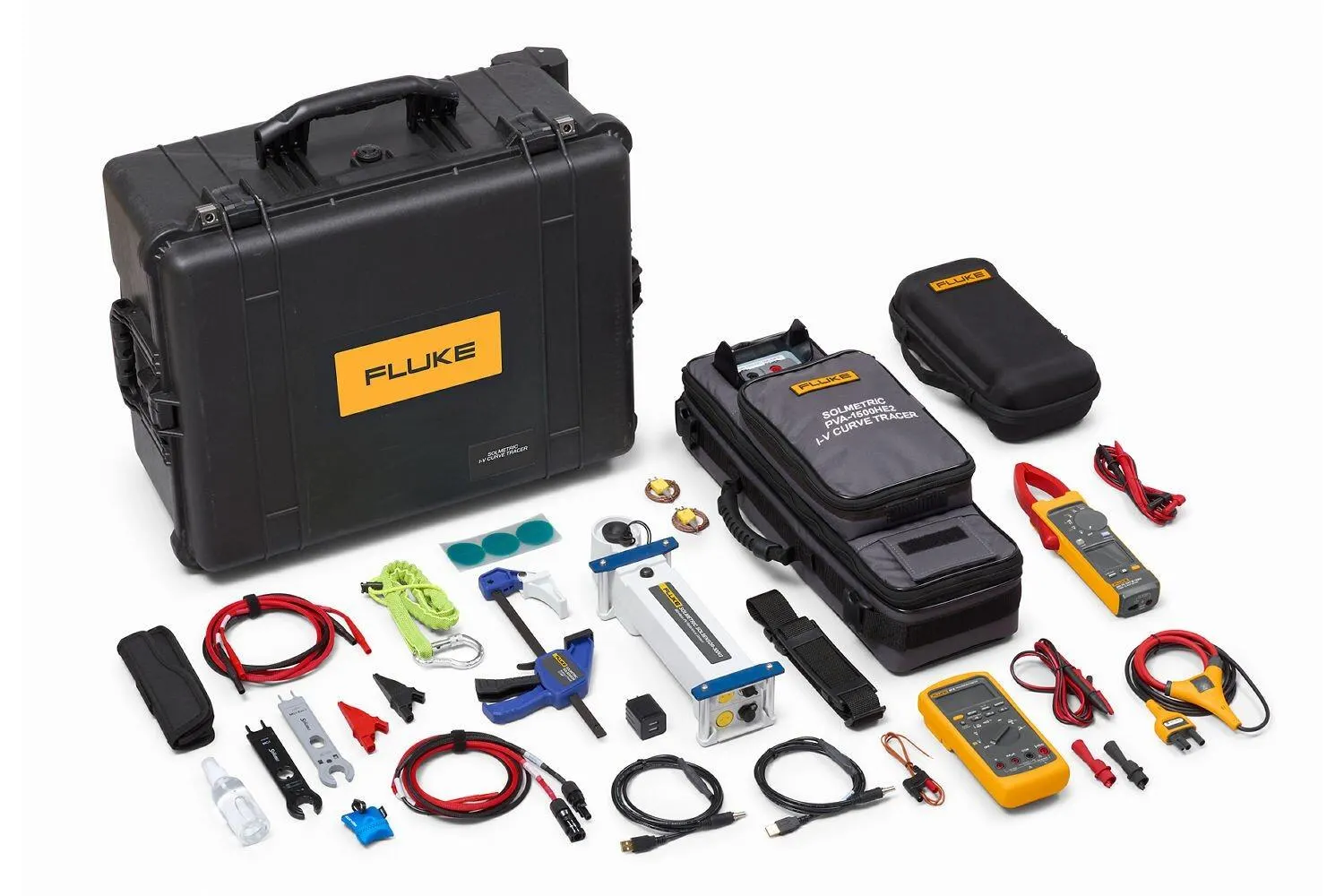

PVA-1500HE2 I-V Curve Tracer, Clamp and Multimeter Kit

Maximize Solar Efficiency with PVA-1500HE2 Analyzer, 393 FC Clamp Meter & 87V Multimeter Toolkit. Enhance performance, streamline inspections, and ensure reliability.

Manufacturer part number (MPN)

5602269

Brand

Fluke

Category

Tools

# sweeps at 18 s sweep-to-sweep delay

unlimited (25 °C, 77 °F ambient) 550 (45 °C, 113 °F ambient)

# sweeps at 9s sweep-to-sweep delay

unlimited (25 °C, 77 °F ambient) 330 (45 °C, 113 °F ambient)

I-V Trace Points

100 or 500 (selectable)

I-V Sweep Duration

0.05 to 2 seconds (typically 0.2 seconds for PV strings)

Operating Temperature Range

0 °C to 45 °C, 32 °F to 113 °F

Storage Temperature Range

-20 °C to 65 °C, -4 °F to 149 °F

Operating Humidity

<90 % RH, non-condensing. Avoid exposing a cold instrument to warm and humid air as condensation will result. Store the instrument in the same conditions in which the instrument will be used.

Altitude

2000 m max

Battery Charging Time

6 hr

Battery Run Time Approx. 8 hr

Approx. 7 hr

Safety and Regulatory

CAT III 1500V IEC 61010-1: Pollution Degree 2

Warning Features

Over-voltage, over-current, over-temperature, reverse polarity

PV Connector Staubli MC4-EVO2

Banana Jacks

Charging/Charged LED

Yes

In-the-field firmware update-ready

Yes

Interface to Tablet/Laptop

Wi-Fi interface between user tablet or laptop, I-V unit and SolSensor™

Weight 6.6 kg, 14.55 lb

7.3 kg, 16.09 lb

43.2 cm, 1.41 ft (including test lead and strain reliefs)

53.3 cm, 1.74 ft

Width

21.6 cm, 8.50 in

Depth

15.2 cm, 5.98 in

Voltage Range

0 to 1500V DC

Current Range

0 to 30A DC

Temperature

0 °C to 45 °C, 32 °F to 113 °F

Humidity

Maximum relative humidity of 80% for temperatures up to 31 °C (87.8 °F) decreasing linearly to 50% relative humidity at 40 °C (104 °F)

Pollution Degree

2

Lead Length

152 cm, 59.84 in

Lead Colors

Positive=red, negative=black

Manufacturer (Test Leads and Alligator Clips)

Staubli

Sensor Type

Silicon photodiode with corrections for temperature, spectral, and angular effects

Measurement Range

100 W/m² to 1500 W/m²

Accuracy

±2 % when used to predict the performance of well characterized poly- and monocrystalline PV modules with direct irradiance >600W/m²

Resolution

1 W/m²

Measurement Interval

Typically, 3.5 s

Measurement Cynchronization with I-V Curve

Typically, <1 s

Wireless Range (open line of sight)

100 m, 328 ft

Battery Run Time

>16 hr typical use

Temperature Coefficients

Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C

Distance from Optimum i2500-10 Flex

i2500-18 Flex

A 0.5 in (12.7 mm)

1.4 in (35.6 mm)

B 0.8 in (20.3 mm)

2.0 in (50.8 mm)

C 1.4 in (35.6 mm)

2.5 in (63.5 mm)

International

IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A

Korea (KCC)

Class A equipment (Industrial Broadcast & Communications Equipment)

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Voltage DC Maximum voltage

1000 V

Voltage DC Accuracy

±(0.05% + 1)

Voltage DC Maximum resolution

10 µV

Voltage AC Maximum voltage

1000 V

Voltage AC Accuracy

±(0.7% + 2) True RMS

Voltage AC AC bandwidth

20 kHz with low pass filter; 3 dB @ 1 kHz

Voltage AC Maximum resolution

0.1 mV

Current DC Maximum amps

10 A (20 A for 30 seconds maximum)

Current DC Amps accuracy

±(0.2% + 2)

Current DC Maximum resolution

0.01 µA

Current AC Maximum amps

10 A (20 A for 30 seconds maximum)

Current AC Amps accuracy

±(1.0% + 2) True RMS

Current AC Maximum resolution

0.1 µA

Resistance Maximum resistance

50 MΩ

Resistance Accuracy

±(0.2% + 1)

Resistance Maximum resolution

0.1 Ω

Capacitance Maximum capacitance

9,999 µF

Capacitance accuracy

±(1% + 2)

Capacitance Maximum resolution

0.01 nF

Frequency Maximum frequency

200 kHz

Frequency Accuracy

±(0.005% + 1)

Frequency Maximum resolution

0.01 Hz

Duty cycle Maximum duty cycle

99.9%

Duty cycle Accuracy

±(0.2% per kHz + 0.1%)

Duty cycle Maximum resolution

0.1%

Temperature measurement

–200.0 °C – 1090 °C –328.0 °F – 1994.0 °F excluding probe

80 BK temperature probe

–40.0 °C – 260 °C –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater

Conductance Maximum conductance

60.00 nS

Conductance Accuracy

±(1.0% + 10)

Conductance Maximum resolution

0.01 nS

Diode Range

3 V

Diode Resolution

1 mV

Diode Accuracy

±(2% + 1)

Duty cycle range Accuracy

Within ±(0.2% per kHz + 0.1%)

Operating temperature

–20 °C to + 55 °C

Storage temperature

–40 °C to + 60 °C

Humidity (without condensation)

0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C)

Operating Altitude

2000 m

Overvoltage category

EN 61010–1 to 1000 V CAT III, 600V CAT IV

Agency approvals

CE, CSA, RCM

Size

201 x 98 x 52 mm (with holster)

Weight

355 g 624 g – with holster

Display Digital

6000 counts updates 4/sec. 19,999 counts in high–resolution mode

Display Analog

32 segments, updates 40/sec

Display Frequency

19,999 counts, updates 3/sec at > 10 Hz

Warranty

Lifetime

Battery Life Alkaline

~400 hours typical, without backlight

Shock

1 Meter drop per IEC 61010–1:2001

Vibration

Per MIL–PRF–28800 for a Class 2 instrument

HS Code

9030.33
