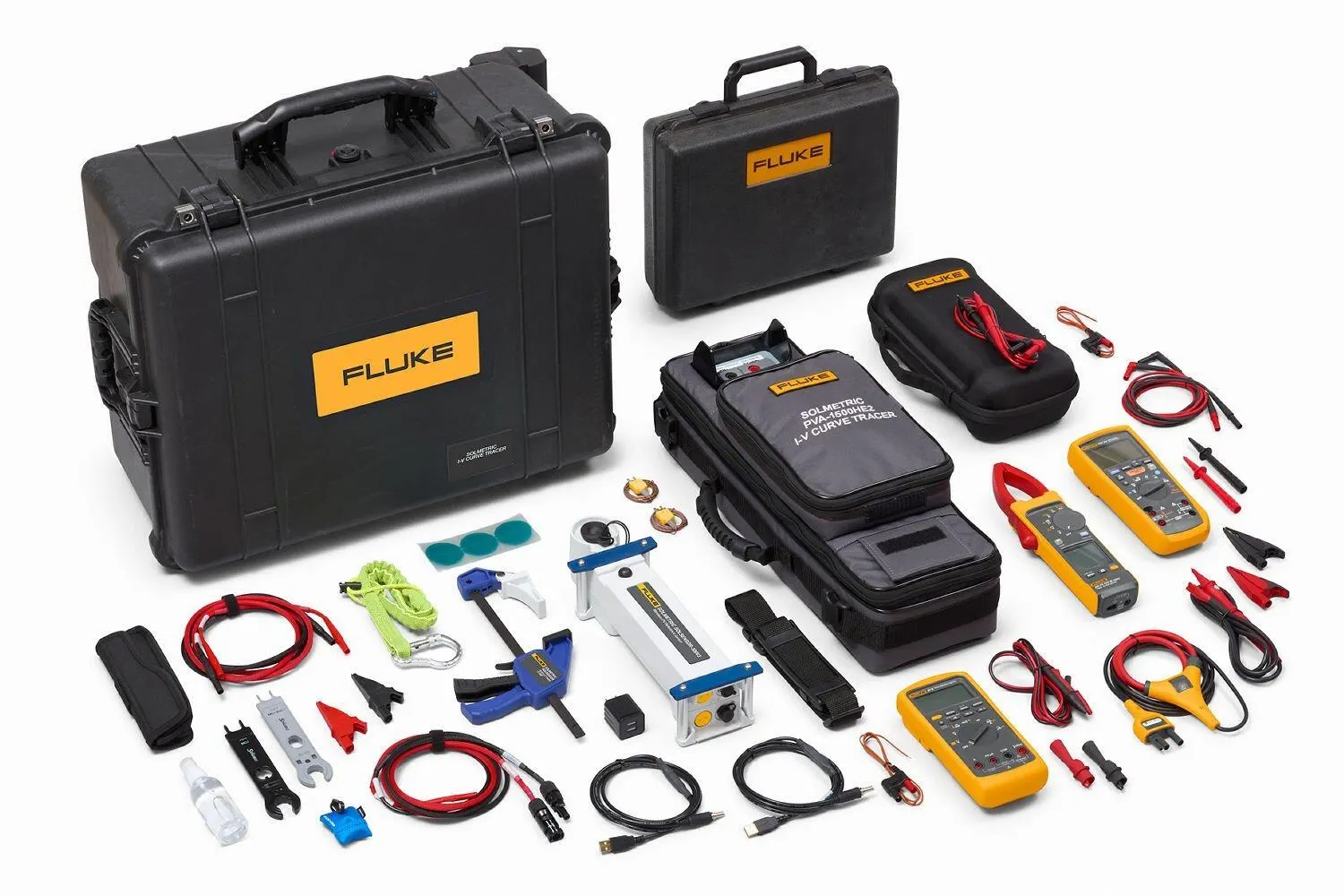

PVA-1500HE2 I-V Curve Tracer, Insulation, Clamp and Multimeter Kit

Maximize Solar Efficiency with PVA-1500HE2 Analyzer, 1587 FC Insulation Multimeter, 393 FC Clamp Meter & 87V Multimeter Toolkit. Enhance performance, streamline inspections, and ensure reliability.

Manufacturer part number (MPN)

5602278

Brand

Fluke

Category

Tools

PVA-1500T2

PVA-1500HE2

Voltage Range (Voc)

20 to 1500V DC

Module Efficiency <19%

0 to 30A DC

Module Efficiency ≥19% 0 to 10A DC

0 to 30A DC

Voltage Accuracy (0 °C to 45 °C)

±(0.5% ±0.25V)

Current Accuracy (0 °C to 45 °C)

±(0.5% ±0.04A)

Power Accuracy (0 °C to 45 °C)

±(1.7 % + 1.0 W) (current ≥3 A, module efficiency <19 %)

Voltage Resolution

25 mV

Current Resolution

2 mA

Sweep-to-sweep delay (@VOC ≤ 1350V)

<9 seconds

Max number of I-V sweeps per hour (@VOC ≤ 1350V)

400 sweeps/hr

Max megawatts measured per hour

3.5 MW/hr

# sweeps at 18 s sweep-to-sweep delay

unlimited (25 °C, 77 °F ambient) 550 (45 °C, 113 °F ambient)

# sweeps at 9s sweep-to-sweep delay

unlimited (25 °C, 77 °F ambient) 330 (45 °C, 113 °F ambient)

I-V Trace Points

100 or 500 (selectable)

I-V Sweep Duration

0.05 to 2 seconds (typically 0.2 seconds for PV strings)

Operating Temperature Range

0 °C to 45 °C, 32 °F to 113 °F

Storage Temperature Range

-20 °C to 65 °C, -4 °F to 149 °F

Operating Humidity

<90 % RH, non-condensing. Avoid exposing a cold instrument to warm and humid air as condensation will result. Store the instrument in the same conditions in which the instrument will be used.

Altitude

2000 m max

Battery Charging Time

6 hr

Battery Run Time Approx. 8 hr

Approx. 7 hr

Safety and Regulatory

CAT III 1500V IEC 61010-1: Pollution Degree 2

Warning Features

Over-voltage, over-current, over-temperature, reverse polarity

PV Connector Staubli MC4-EVO2

Banana Jacks

Charging/Charged LED

Yes

In-the-field firmware update-ready

Yes

Interface to Tablet/Laptop

Wi-Fi interface between user tablet or laptop, I-V unit and SolSensor™

Weight 6.6 kg, 14.55 lb

7.3 kg, 16.09 lb

43.2 cm, 1.41 ft (including test lead and strain reliefs)

53.3 cm, 1.74 ft

Width

21.6 cm, 8.50 in

Depth

15.2 cm, 5.98 in

Voltage Range

0 to 1500V DC

Current Range

0 to 30A DC

Temperature

0 °C to 45 °C, 32 °F to 113 °F

Humidity

Maximum relative humidity of 80% for temperatures up to 31 °C (87.8 °F) decreasing linearly to 50% relative humidity at 40 °C (104 °F)

Pollution Degree

2

Lead Length

152 cm, 59.84 in

Lead Colors

Positive=red, negative=black

Manufacturer (Test Leads and Alligator Clips)

Staubli

Sensor Type

Silicon photodiode with corrections for temperature, spectral, and angular effects

Measurement Range

100 W/m² to 1500 W/m²

Accuracy

±2 % when used to predict the performance of well characterized poly- and monocrystalline PV modules with direct irradiance >600W/m²

Resolution

1 W/m²

Measurement Interval

Typically, 3.5 s

Measurement Cynchronization with I-V Curve

Typically, <1 s

Wireless Range (open line of sight)

100 m, 328 ft

Battery Run Time

>16 hr typical use

600.0 mV Resolution

0.1 mV

600.0 mV Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)

±(1% + 3)

600.0 mV Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)

±(2% + 3)

6.000 V Resolution

0.001 V

6.000 V Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)

±(1% + 3)

6.000 V Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)

±(2% + 3)

1000 V Resolution

1 V

1000 V Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)

±(2% + 3)

1000 V Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)

±(2% + 3)¹

600.0 mV Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)

+(2% + 3), -(6% - 3)

6.000 V Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)

+(2% + 3), -(6% - 3)

1000 V Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)

+(2% + 3), -(6% - 3)

Range Resolution

Accuracy ±(% of Rdg + Counts)

6.000 V dc 0.001 V

±(0.09% + 2)

60.00 V dc 0.01 V

±(0.09% + 2)

600.0 V dc 0.1 V

±(0.09% + 2)

1000 V dc 1 V

±(0.09% + 2)

Input impedance

10 MΩ (nominal), <100 pF

Normal mode rejection ratio

>60 dB @ 50 Hz or 60 Hz

Common mode rejection ratio

>120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance)

600.0 mVdc 0.1 mV

±(0.1% + 1)

Range

400 mA

Accuracy ±(% of Rdg+Counts)

±(1.5% + 2)¹

Burden voltage (Typical)

2 mV/mA

Overload

600 mA for 2 minutes maximum

Fuse protection for mA input

0.44 mA, 1000 V, IR 10 kA

AC conversion

Inputs are ac-coupled and calibrated to the rms value of its wave input

600.0 Ω 0.1 Ω

±(0.9% + 2)

6.000 kΩ 0.001 kΩ

±(0.9% + 2)

60.00 kΩ 0.01 kΩ

±(0.9% + 2)

600.0 kΩ 0.1 KΩ

±(0.9% + 2)

6.000 MΩ 0.001 MΩ

±(0.9% + 2)

50.0 MΩ ² 0.01 MΩ

±(1.5% + 3)

Overload protection

1000 V rms or dc

Open circuit test voltage

<8.0 V dc

Short circuit current

<1.1 mA

Diode test indication

Display voltage drop: 0.6 V at1.0 mA nominal test current:

Continuity indication

Continuous audible tone for testresistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω

Open circuit voltage

<8.0 V

Response time

>1 m sec

99.99 Hz 0.01 Hz

±(0.1% + 1)

999.9 Hz 0.1 Hz

±(0.1% + 1)

9.999 kHz 0.001 kHz

±(0.1% + 1)

99.99 kHz 0.01 kHz

±(0.1% + 1)

600.0 mV ac V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

100.0 mV

V ac Sensitivity (RMS Its Wave)¹ 20 kHz to 100 kHz

150.0 mV

6.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

1.0 V

6.0 V V ac Sensitivity (RMS Its Wave)¹ 20 kHz to 100 kHz

1.5 V

6.0 V DC Trigger Levels¹ to 20 kHz²

-400.0 mV and 2.5 V

60.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

10.0 V

60.0 V V ac Sensitivity (RMS Its Wave)¹ 20 kHz to 100 kHz

36.0 V

60.0 V DC Trigger Levels¹ to 20 kHz²

1.2 V and 4.0 V

600.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

100.0 V

600.0 V DC Trigger Levels¹ to 20 kHz²

12.0 V and 40.0 V

1000.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

300.0 V

1000.0 V DC Trigger Levels¹ to 20 kHz²

12.0 V and 40.0 V

1000 nF 1 nF

±(1.2% + 2)

10.00 μF 0.01 μF

±(1.2% + 2)

100.0 μF 0.1 μF

±(1.2% ±90 counts)

9999 μF 1 μF

±(1.2% ±90 counts)

-40 ° C to 537 ° C 0.1 °C

±(1% + 10 counts)

-40 ° F to 998 ° F 0.1 °F

±(1% + 18 counts)

Test voltages

50, 100, 250, 500, 1000 V

Test voltage accuracy

+20%, -0%

Short-circuit test current

1 mA nominal

Auto discharge

Discharge time <0.5 second for C = 1 μF or less

Live circuit detection

Inhibit test if terminal voltage > 30 V prior to initialization of test

Maximum capacitive load

Operable with up to 1 μF load

50 V (0% to +20%) Display range

0.01 to 6.00 MΩ

HS Code

9030.33
