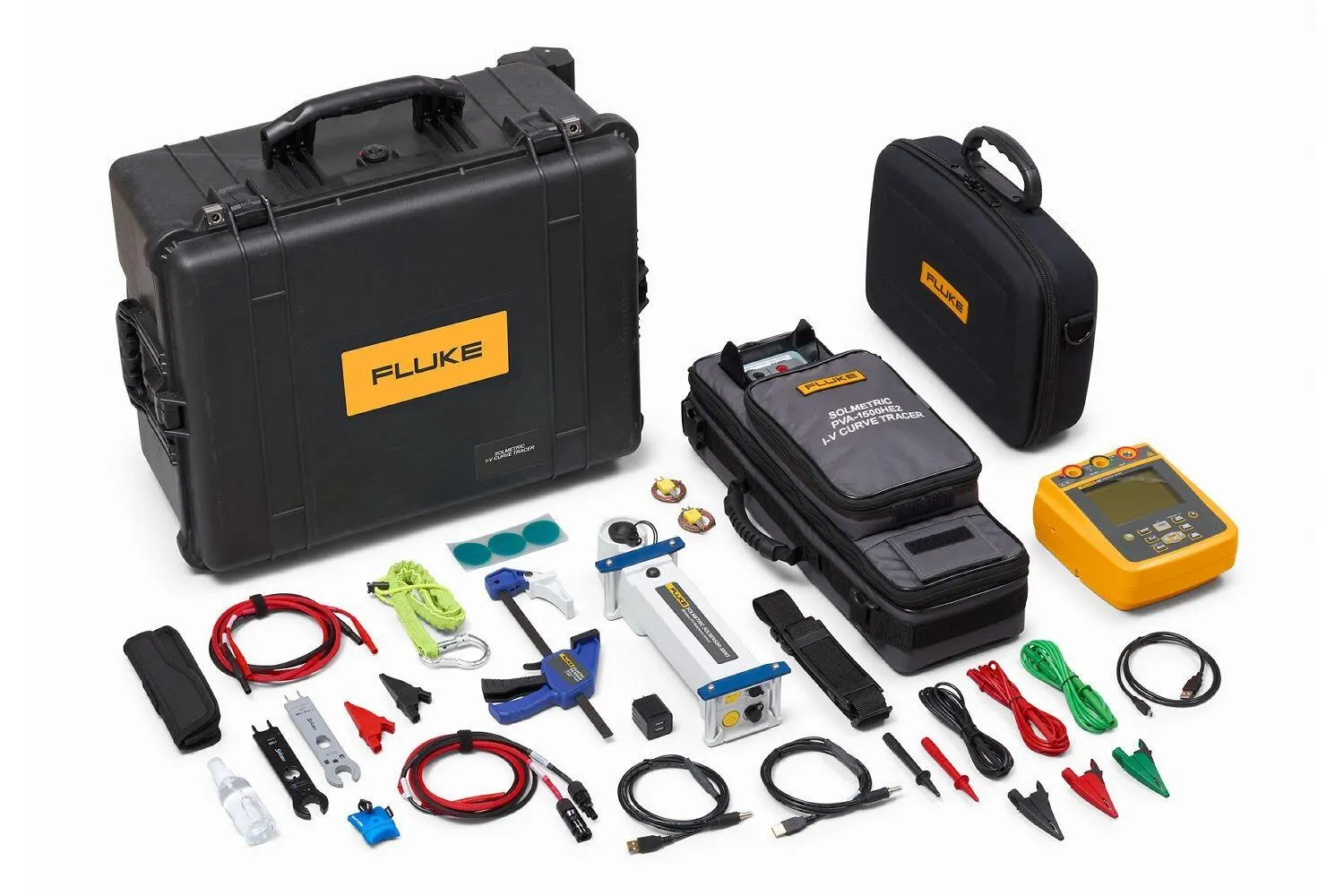

PVA-1500HE2 I-V Curve Tracer and 1537 Insulation Tester 2500V Kit

Maximize Solar Efficiency with PVA-1500HE2 I-V Curve Tracer and 1537 Insulation Tester 2500V Toolkit. Enhance performance, streamline inspections, and ensure reliability.

Manufacturer part number (MPN)

5602284

Brand

Fluke

Category

Tools

PVA-1500T2

PVA-1500HE2

Voltage Range (Voc)

20 to 1500V DC

Module Efficiency <19%

0 to 30A DC

Module Efficiency ≥19% 0 to 10A DC

0 to 30A DC

Voltage Accuracy (0 °C to 45 °C)

±(0.5% ±0.25V)

Current Accuracy (0 °C to 45 °C)

±(0.5% ±0.04A)

Power Accuracy (0 °C to 45 °C)

±(1.7 % + 1.0 W) (current ≥3 A, module efficiency <19 %)

Voltage Resolution

25 mV

Current Resolution

2 mA

Sweep-to-sweep delay (@VOC ≤ 1350V)

<9 seconds

Max number of I-V sweeps per hour (@VOC ≤ 1350V)

400 sweeps/hr

Max megawatts measured per hour

3.5 MW/hr

# sweeps at 18 s sweep-to-sweep delay

unlimited (25 °C, 77 °F ambient) 550 (45 °C, 113 °F ambient)

# sweeps at 9s sweep-to-sweep delay

unlimited (25 °C, 77 °F ambient) 330 (45 °C, 113 °F ambient)

I-V Trace Points

100 or 500 (selectable)

I-V Sweep Duration

0.05 to 2 seconds (typically 0.2 seconds for PV strings)

Operating Temperature Range

0 °C to 45 °C, 32 °F to 113 °F

Storage Temperature Range

-20 °C to 65 °C, -4 °F to 149 °F

Operating Humidity

<90 % RH, non-condensing. Avoid exposing a cold instrument to warm and humid air as condensation will result. Store the instrument in the same conditions in which the instrument will be used.

Altitude

2000 m max

Battery Charging Time

6 hr

Battery Run Time Approx. 8 hr

Approx. 7 hr

Safety and Regulatory

CAT III 1500V IEC 61010-1: Pollution Degree 2

Warning Features

Over-voltage, over-current, over-temperature, reverse polarity

PV Connector Staubli MC4-EVO2

Banana Jacks

Charging/Charged LED

Yes

In-the-field firmware update-ready

Yes

Interface to Tablet/Laptop

Wi-Fi interface between user tablet or laptop, I-V unit and SolSensor™

Weight 6.6 kg, 14.55 lb

7.3 kg, 16.09 lb

43.2 cm, 1.41 ft (including test lead and strain reliefs)

53.3 cm, 1.74 ft

Width

21.6 cm, 8.50 in

Depth

15.2 cm, 5.98 in

Voltage Range

0 to 1500V DC

Current Range

0 to 30A DC

Temperature

0 °C to 45 °C, 32 °F to 113 °F

Humidity

Maximum relative humidity of 80% for temperatures up to 31 °C (87.8 °F) decreasing linearly to 50% relative humidity at 40 °C (104 °F)

Pollution Degree

2

Lead Length

152 cm, 59.84 in

Lead Colors

Positive=red, negative=black

Manufacturer (Test Leads and Alligator Clips)

Staubli

Sensor Type

Silicon photodiode with corrections for temperature, spectral, and angular effects

Measurement Range

100 W/m² to 1500 W/m²

Accuracy

±2 % when used to predict the performance of well characterized poly- and monocrystalline PV modules with direct irradiance >600W/m²

Resolution

1 W/m²

Measurement Interval

Typically, 3.5 s

Measurement Cynchronization with I-V Curve

Typically, <1 s

Wireless Range (open line of sight)

100 m, 328 ft

Battery Run Time

>16 hr typical use

Display

73.5 mm x 104 mm

Battery

8 AA alkaline cells, IEC LR6

Dimensions (H x W x L)

184 mm x 211 mm x 93 mm

Weight

1.3 kg

Operating temperature

-10 °C to +50 °C

Storage temperature

-20 °C to +60 °C

Operating altitude

2000 m

Storage altitude

12000 m

Overvoltage category

CAT IV 600 V

General

IEC 61010-1, Pollution Degree 2 IEC 61557-1

Measurement

IEC 61010-2-030: CAT IV 600 V IEC 61010-2-034: 2500 V dc

Insulation resistance measurement

IEC 61557-1, IEC 61557-2

IP Rating

IEC 60529 IP40

International

IEC 61326-1: Electromagnetic environment for portable equipments IEC 61326-2-2 CISPR 11: Group 1, Class A

Test voltage Range

Resolution

250 V <200 kΩ

Unspecified

200 kΩ to 500 kΩ 1 kΩ

5 %

0.50 MΩ to 5.00 MΩ .01 MΩ

5 %

5.0 MΩ to 50.0 MΩ 0.1 MΩ

5 %

50 MΩ to 500 MΩ 1 MΩ

5 %

0.50 GΩ to 5.00 GΩ 0.01 GΩ

5 %

5.0 GΩ to 50.0 GΩ 0.1 GΩ

20 %

500 V <200 kΩ

Unspecified

5.0 GΩ to 10.0 GΩ 0.1 GΩ

5 %

10.0 GΩ to 50.0 GΩ 0.5 GΩ

20 %

50 GΩ to 100 GΩ 5 GΩ

20 %

1000 V <200 kΩ

Unspecified

5.0 GΩ to 20.0 GΩ 0.1 GΩ

5 %

20.0 GΩ to 50.0 GΩ 0.5 GΩ

20 %

50 GΩ to 200 GΩ 5 GΩ

20 %

2500 V <200 kΩ

Unspecified

0.50 MΩ to 5.00 MΩ 0.01 MΩ

5 %

50 GΩ to 500 GΩ 5 GΩ

20 %

Range

Accuracy

Leakage current measurement 1 nA to 2 mA

±(20 % + 2 nA)

Capacitance measurement 0.01 μF to 2.00 μF

±(15 % rdg + 0.03 μF)

Test voltage for insulation resistance 250 V to 2500 V

±(3 % + 3 V)

Warning range

>30 V

F1535

>2 mA

F1537

>5 mA

Function Range

Resolution

VAC 0 V to 600.0 V

0.1 V

VDC 0 V to 600.0 V

0.1 V

Resistance 0 Ω to 600.0 Ω

0.1 Ω

Resistance 600 Ω to 6000 Ω

1 Ω

Resistance 6.00 kΩ to 60.00k Ω

0.01 kΩ

HS Code

9030.33
