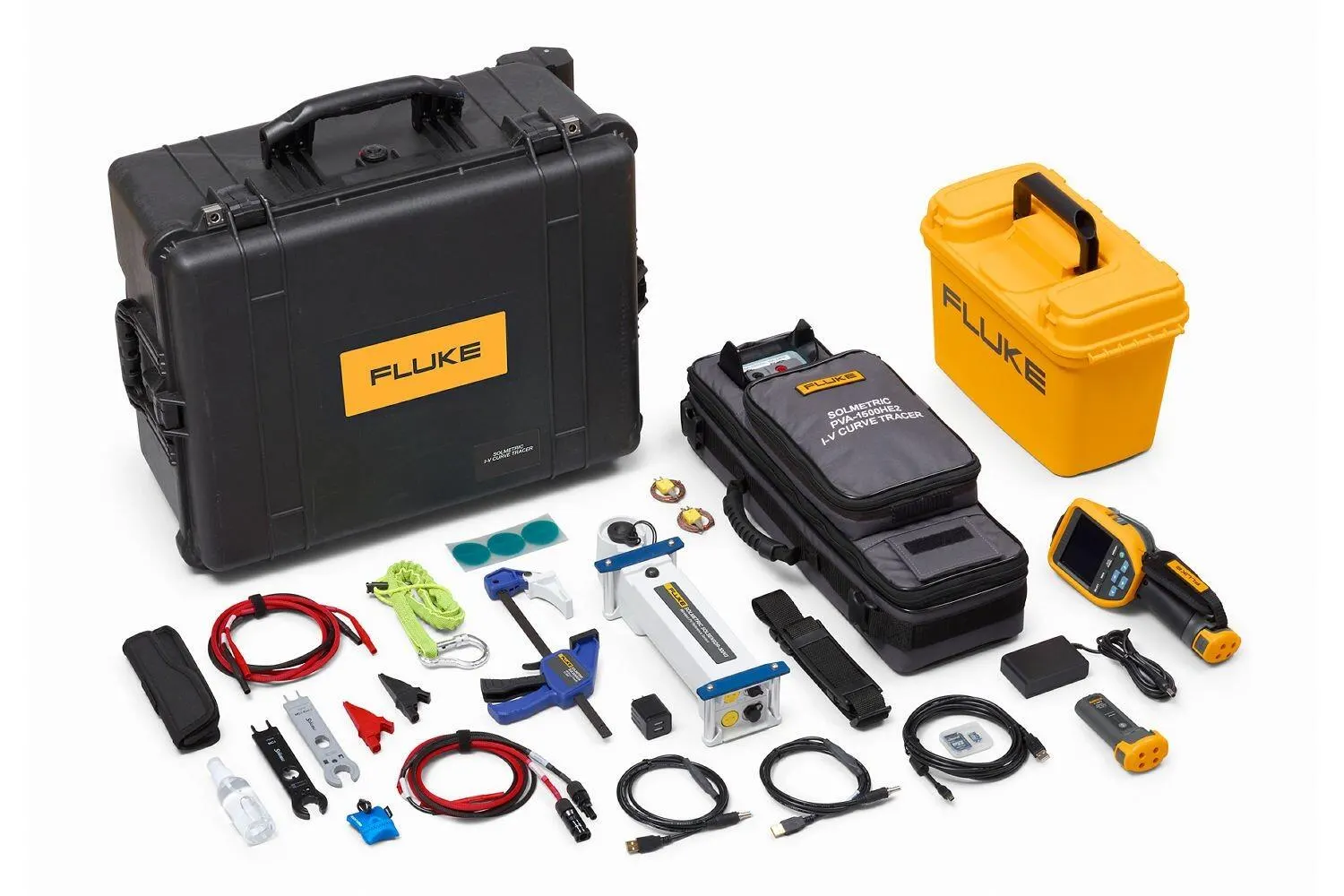

PVA-1500HE2 I-V Curve Tracer Thermography Kit

Maximize Solar Efficiency with PVA-1500HE2 Analyzer & TiS75+ Thermal Camera Toolkit. Enhance performance, streamline inspections, and ensure reliability.

Manufacturer part number (MPN)

5610654 Brand: Fluke Category: Tools PVA-1500T2: PVA-1500HE2 Voltage Range (Voc): 20 to 1500V DC Module Efficiency <19%: 0 to 30A DC Module Efficiency ≥19% 0 to 10A DC: 0 to 30A DC Voltage Accuracy (0 °C to 45 °C): ±(0.5% ±0.25V) Current Accuracy (0 °C to 45 °C): ±(0.5% ±0.04A) Power Accuracy (0 °C to 45 °C): ±(1.7 % + 1.0 W) (current ≥3 A, module efficiency <19 %) Voltage Resolution: 25 mV Current Resolution: 2 mA Sweep-to-sweep delay (@VOC ≤ 1350V): <9 seconds Max number of I-V sweeps per hour (@VOC ≤ 1350V): 400 sweeps/hr Max megawatts measured per hour: 3.5 MW/hr # sweeps at 18 s sweep-to-sweep delay: unlimited (25 °C, 77 °F ambient) 550 (45 °C, 113 °F ambient) # sweeps at 9s sweep-to-sweep delay: unlimited (25 °C, 77 °F ambient) 330 (45 °C, 113 °F ambient) I-V Trace Points: 100 or 500 (selectable) I-V Sweep Duration: 0.05 to 2 seconds (typically 0.2 seconds for PV strings) Operating Temperature Range: 0 °C to 45 °C, 32 °F to 113 °F Storage Temperature Range: -20 °C to 65 °C, -4 °F to 149 °F Operating Humidity: <90 % RH, non-condensing. Avoid exposing a cold instrument to warm and humid air as condensation will result. Store the instrument in the same conditions in which the instrument will be used. Altitude: 2000 m max Battery Charging Time: 6 hr Battery Run Time Approx. 8 hr: Approx. 7 hr Safety and Regulatory: CAT III 1500V IEC 61010-1: Pollution Degree 2 Warning Features: Over-voltage, over-current, over-temperature, reverse polarity PV Connector Staubli MC4-EVO2: Banana Jacks Charging/Charged LED: Yes In-the-field firmware update-ready: Yes Interface to Tablet/Laptop: Wi-Fi interface between user tablet or laptop, I-V unit and SolSensor™ Weight 6.6 kg, 14.55 lb: 7.3 kg, 16.09 lb 43.2 cm, 1.41 ft (including test lead and strain reliefs): 53.3 cm, 1.74 ft Width: 21.6 cm, 8.50 in Depth: 15.2 cm, 5.98 in Voltage Range: 0 to 1500V DC Current Range: 0 to 30A DC Temperature: 0 °C to 45 °C, 32 °F to 113 °F Humidity: Maximum relative humidity of 80% for temperatures up to 31 °C (87.8 °F) decreasing linearly to 50% relative humidity at 40 °C (104 °F) Pollution Degree: 2 Lead Length: 152 cm, 59.84 in Lead Colors: Positive=red, negative=black Manufacturer (Test Leads and Alligator Clips): Staubli Sensor Type: Silicon photodiode with corrections for temperature, spectral, and angular effects Measurement Range: 100 W/m² to 1500 W/m² Accuracy: ±2 % when used to predict the performance of well characterized poly- and monocrystalline PV modules with direct irradiance >600W/m² Resolution: 1 W/m² Measurement Interval: Typically, 3.5 s Measurement Synchronization with I-V Curve: Typically, <1 s Wireless Range (open line of sight): 100 m, 328 ft Battery Run Time: >16 hr typical use Key Features: TiS75+ Infrared resolution: 384 x 288 (110,592 pixels) IFOV: 1.91 mRad Field of view: 42° x 30° minimum focus distance: 0.15 m Focus system: Manual focus Wireless connectivity: Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available) Fluke Connect app compatible: Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing Fluke Connect Assets optional software: Yes*, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location Asset Tagging: Scan a QR code to automatically organize and file thermal images with Fluke Connect™ IR-Fusion technology: AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image Picture-InPicture (PIP): Yes Display: 3.5" (8.9 cm landscape) touchscreen 640 x 480 LCD Ergonomic design: Designed for one-handed use Thermal sensitivity: 40mk Level and span: Smooth auto and manual scaling Fast auto-rescale in manual mode: Yes minimum span (in manual mode): 3° °C (4.5 °F) minimum span (In auto mode): 5°C (9.0 °F) Built-in digital camera (visible light): 640 x 480 Frame rate: 9 Hz or 27 Hz models Dew point calculation: Yes Internal memory: ∼500 images External memory: ≥4 GB SD card (>1000 images) Image capture, review, save mechanism: One-handed image capture, review, and save capability Image file formats: Non-radiometric BMP or JPEG or fully-radiometric is2 Memory review: Yes Software: Fluke Connect software—full analysis and reporting software with access to the Fluke Connect Analyze and store radiometric data on a PC: Yes Export file formats with Fluke Connect software: is2, BMP, GIF, JPEG, PNG, TIFF Voice annotation: Yes, 60 second maximum audio recording via Bluetooth Audio Headset Profile (HSP) connection to external device. IR-PhotoNotes: Yes. Up to 3 extra user-selectable visible light image capture to be included in IS2 file. Text annotations: After IS2 capture, user can type in a note using on-screen keyboard. Video recording and formats: Standard and radiometric video. Up to 5 minute recording length. avi and is3 Remote control operations: No Auto capture (temperature and interval): Yes. User-selectable time interval for capturing IS2 or Jpeg files. Batteries (field-replaceable, rechargeable): Lithium-ion rechargeable battery Battery life: ≥3.5 hours continuous without WiFi (Actual life depends on settings and usage) Battery charging system: Ti SBC3B Two-Bay Battery Charger or in-Imager charging. AC operation: AC operation with included power supply, universal adapters included Output: 15 VDC, 2 A Power saving: User-selectable sleep and power off Temperature range (not calibrated below -10 °C): -20 °C to 550°C (not calibrated below -10 °C) On-screen emissivity correction: Yes, “top ten” material list plus numerical adjustment between 0.01 and 1.00 Standard palettes: 6 Color alarms: Yes. User-selectable hot and cold point and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colors based on the pixel temperature. Infrared spectral band: ~8-14μm Operating temperature: -10 °C to 50 °C (14 °F to 122 °F) Storage temperature: -20 °C to 50 °C (-4 °F to 122 °F) without batteries Relative humidity: 10 % to 95 % non-condensing Spot temperature: Center spot (unmovable) User-definable spot markers: Yes, 5 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can choose to switch display on/off for each marker. User defined measurement boxes: Yes, 5 user-adjustable rectangles. Size and position are adjustable. Rectangle statistics shown on screen: Min, Max, Average temperature. User can choose to switch display on/off for each marker. Hard case: Rugged hard carrying case with soft transport bag, including adjustable strap Safety standards: IEC 61010-1: Pollution Degree 2 Electromagnetic combability: IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A Australian RCM: RCM IEC 61326-1 US FCC: 47 CFR 15 Subpart C Sections 15.207, 15.209, 15.249 Vibration: 10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6 Shock: 30 g, 11 ms, IEC 60068-2-27 Drop: Engineered to withstand 2m drop Sized (H x W x L): ∼(26.7 cm x 10.1 cm x 14.5 cm) ∼ (10.5 in x 4.0 in x 5.7 in) Weight (battery included): 0.885 kg (1.95 lbs) Enclosure rating: IP54 Warranty: Two-years (standard) Recommended calibration cycle: Two-years (assumes normal operation and normal aging) Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish RoHS compliant: Yes
