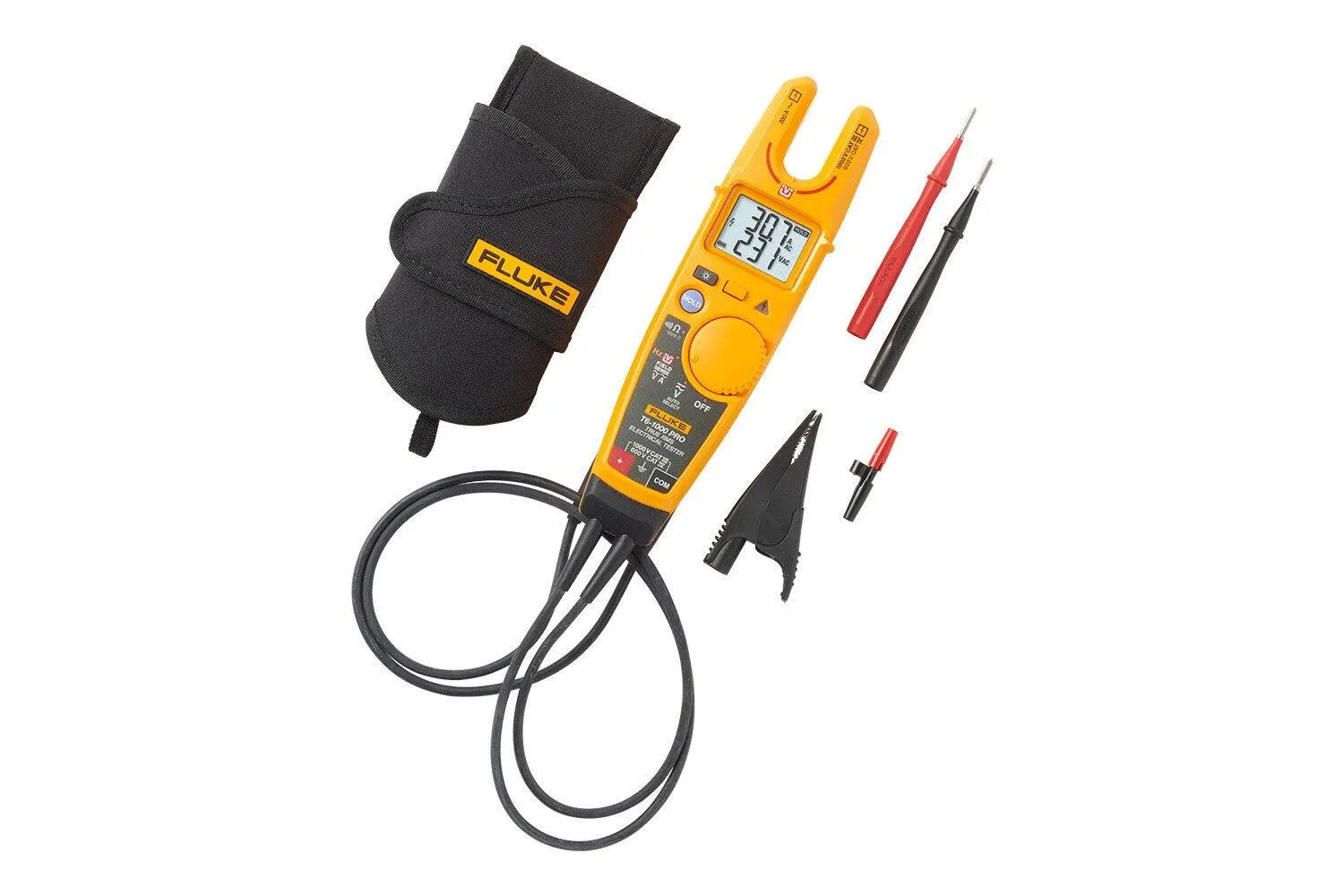

Fluke T6-1000 PRO Electrical Tester

Simultaneous voltage and current display–save time by seeing voltage and current measurements at the same time when trouble shooting motors, pumps or other equipment.

Manufacturer part number (MPN)

5134747

Brand

Fluke

Category

Tools

FieldSense ac voltage Requires test leads

No

FieldSense ac voltage Range

1000 V

FieldSense ac voltage Resolution

1 V

FieldSense ac voltage Accuracy

±(3 % + 3 counts) 45 Hz - 66 Hz[1] [2]

FieldSense ac current Requires test leads

No

FieldSense ac current Range

200.0 A

FieldSense ac current Resolution

0.1 A

FieldSense ac current Accuracy

±(3 % + 3 counts) 45 Hz - 66 Hz

FieldSense frequency (Hz) Requires test leads

No

FieldSense frequency (Hz) Range

45 Hz – 66 Hz

FieldSense frequency (Hz) Resolution

1 Hz

FieldSense frequency (Hz) Accuracy

±(1 % + 2 counts)

Volts ac Requires test leads

Yes

Volts ac Range

1000 V

Volts ac Resolution

1 V

Volts ac Accuracy

±(1.5 % + 2 counts) 45 Hz - 66 Hz

Volts dc Requires test leads

Yes

Volts dc Range

1000 V

Volts dc Resolution

1 V

Volts dc Accuracy

±(1 % + 2 counts)

Resistance Requires test leads (all ranges)

Yes

Resistance Range

2000 Ω

Resistance Resolution

1 Ω

Resistance Accuracy (all ranges)

±(1 % + 2 counts)

Calibration

1-year calibration cycle

Dimensions

61 mm x 259 mm x 43 mm

Weight

0.35 kg (0.78 lb)

Fork opening

17.8 mm (0.7”)

Relative Humidity

0 % to 90 %, 5 °C to 30 °C (41 °F to 86 °F) 0 % to 75 %, 30°C to 40 °C (86 °F to 104 °F) 0 % to 45 %, 40°C to 50 °C (104 °F to 122 °F)

Temperature coefficient

0.1 x (specified accuracy) / °C for 28 °C ( 82.4 °F)

Electromagnetic Compatibility

IEC/EN 61326-1: Portable

HS Code

9030.33
