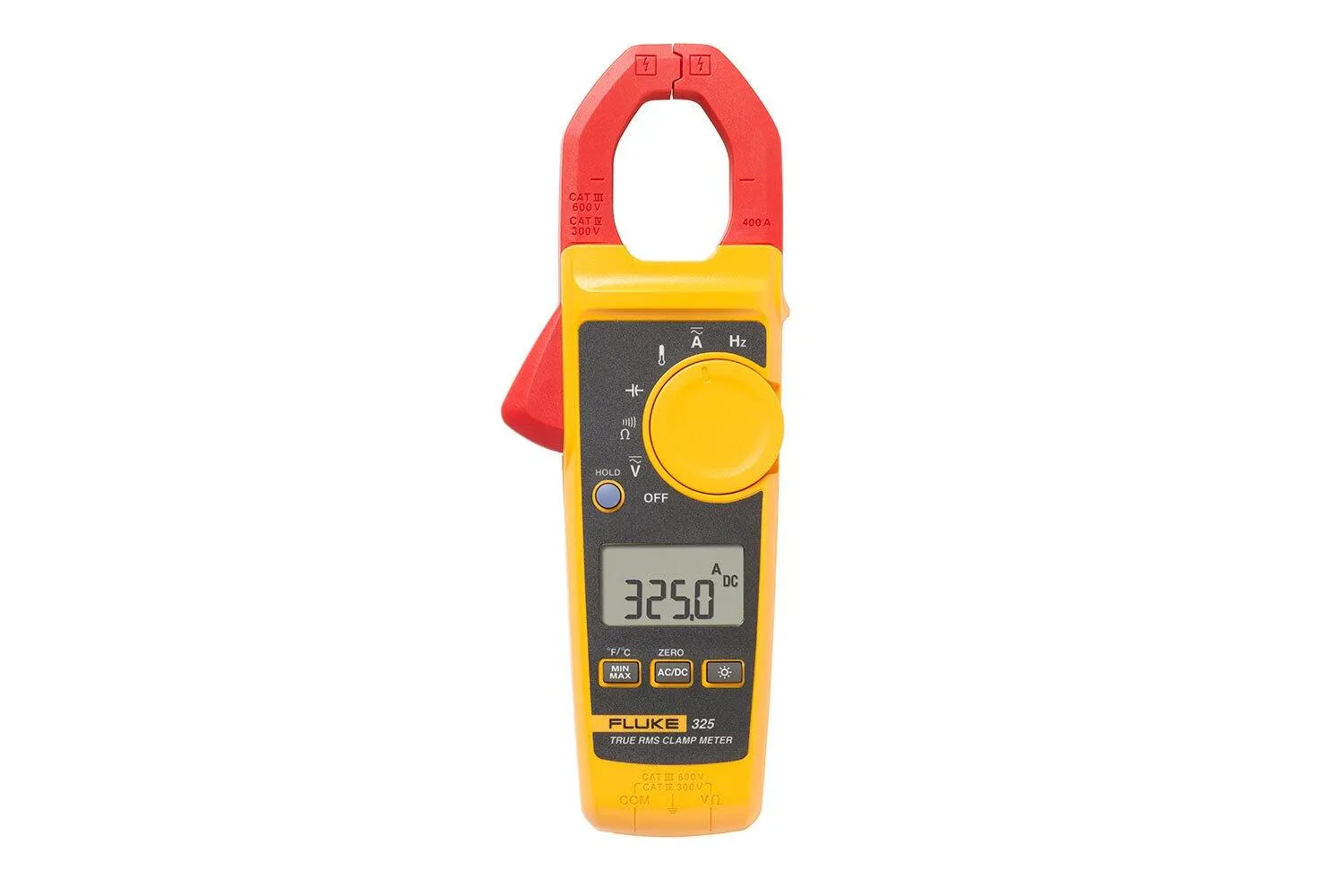

Fluke 325 True RMS Clamp Meter

Designed to verify the presence of load current, AC voltage & circuits & switches, the Fluke 325 Clamp Multimeter offers big features in a small form.

Manufacturer part number (MPN)

5065866

Brand

Fluke

Category

Tools

AC current Range

40.00 A / 400.0 A

AC current Accuracy

2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz)

DC current Range

40.00 A / 400.0 A

DC current Accuracy

2% ± 5 digits

AC voltage Range

600.0 V

AC voltage Accuracy

1.5% ± 5 digits

DC voltage Range

600.0 V

DC voltage Accuracy

1.0% ± 5 digits

Resistance Range

400.0 Ω / 4000 Ω / 40.00 kΩ

Resistance Accuracy

1.0% ± 5 digits

Continuity

≤ 30 Ω

Capacitance

0 to 100.0 μF / 100μF to 1000 μF

Frequency

5.0 Hz to 500.0 Hz

AC response

True-RMS

Backlight

Yes

Data hold

Yes

Contact temperature

-10.0°C to 400.0°C (14.0°F to 752.0°F)

Min/Max

Yes

Size H x W x D (mm)

207 x 75 x 34

Size Max wire diameter

30 mm (600 MCM)

Size Weight

283 g

Category rating

CAT III 600 V CAT IV 300 V

Warranty

Two-year

HS Code

9030.33
