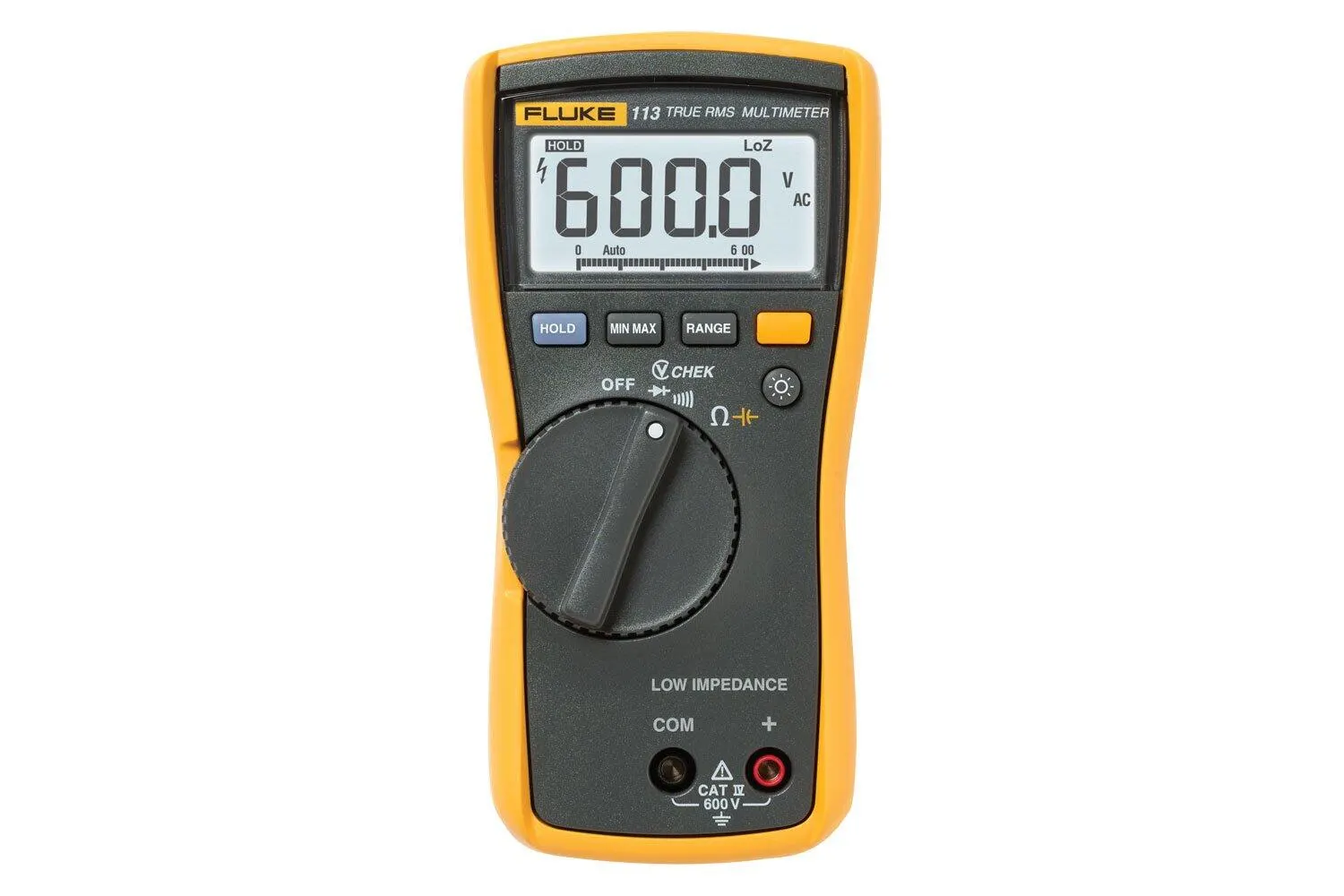

Fluke 113 Digital Multimeter

The Fluke 113 is an easy-to-use basic multimeter with VCHEK™ LoZlow impedance measurement function for ghost voltage detection which can measure and display both AC and DC voltages.

Manufacturer part number (MPN)

3078875

Brand

Fluke

Category

Tools

VCHEK1 2 3 Range

6.000 V / 60.00 V / 600.0 V

VCHEK1 2 3 Resolution

0.001 V / 0.01 V/ 0.1 V

VCHEK1 2 3 Accuracy

DC, 45 to 500 Hz: 2.0% + 3 500 Hz to 1 kHz: 4.0% + 3

Diode test4 Range

2.000 V

Diode test4 Resolution

0.001 V

Diode test4 Accuracy

2.0% + 3

Continuity4 Accuracy

Beeper on 250 Ω detects opens or shorts of 500 μs or longer

Ω4 Range

600.0 Ω / 6.000 kΩ / 60.00 kΩ

Ω4 Resolution

0.1 Ω / 0.001 kΩ / 0.01 kΩ

Ω4 Accuracy

0.9% + 2 / 0.9% + 1 / 0.9% + 1

Capacitance4 Range

1000 nF / 10.00 μF / 100.0 μF / 9999 μF

Capacitance4 Resolution

1 nF / 0.01 μF / 0.1 μF / 1 μF

Capacitance4 Accuracy

1.9% + 2 100 μF - 1000 μF: 1.9% + 2 1000 μF: 5% + 20

Maximum voltage between any terminal and earth ground

600 V

Display

3 3/4-digits, 6000 counts, updates 4/sec

Operating temperature

-10°C to 50°C (14°F to 122°F)

Storage temperature

-40°C to 60°C (-22°F to 140°F)

Temperature coefficient

0.1 x (specified accuracy) / °C ( 28°C)

Operating altitude

2,000 m

Storage altitude

10,000 m

Relative humidity

95% to 30°C 75% to 40°C 45% to 50°C

Battery type

9 Volt Alkaline, IEC 6F22

Battery life

Alkaline: 300 hours typical, without backlight

Size (H x W x L)

167.1 x 85.1 x 46.0 mm (6.58 x 3.35 x 1.81 in)

Weight

13.0 oz (404 g)

Safety

IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT IV 600V

EMI regulations

Complies with FCC Part 15, Class B

VCHEK Input impedance (nominal)

~3 kΩ < 300 pF

VCHEK Common mode rejection ratio (1 kΩ unbalanced)

> 60 dB at DC, 50 or 60 Hz

Ω Open circuit test voltage

< 2.7 VDC

Ω Full scale voltage

< 0.7 VDC

Diode test Open circuit test voltage

2.7 VDC

Diode test Full scale voltage

2.000 VDC

Ω Short circuit current

< 350 μA

Diode test Short circuit current

< 1.0 mA

HS Code

9030.33
