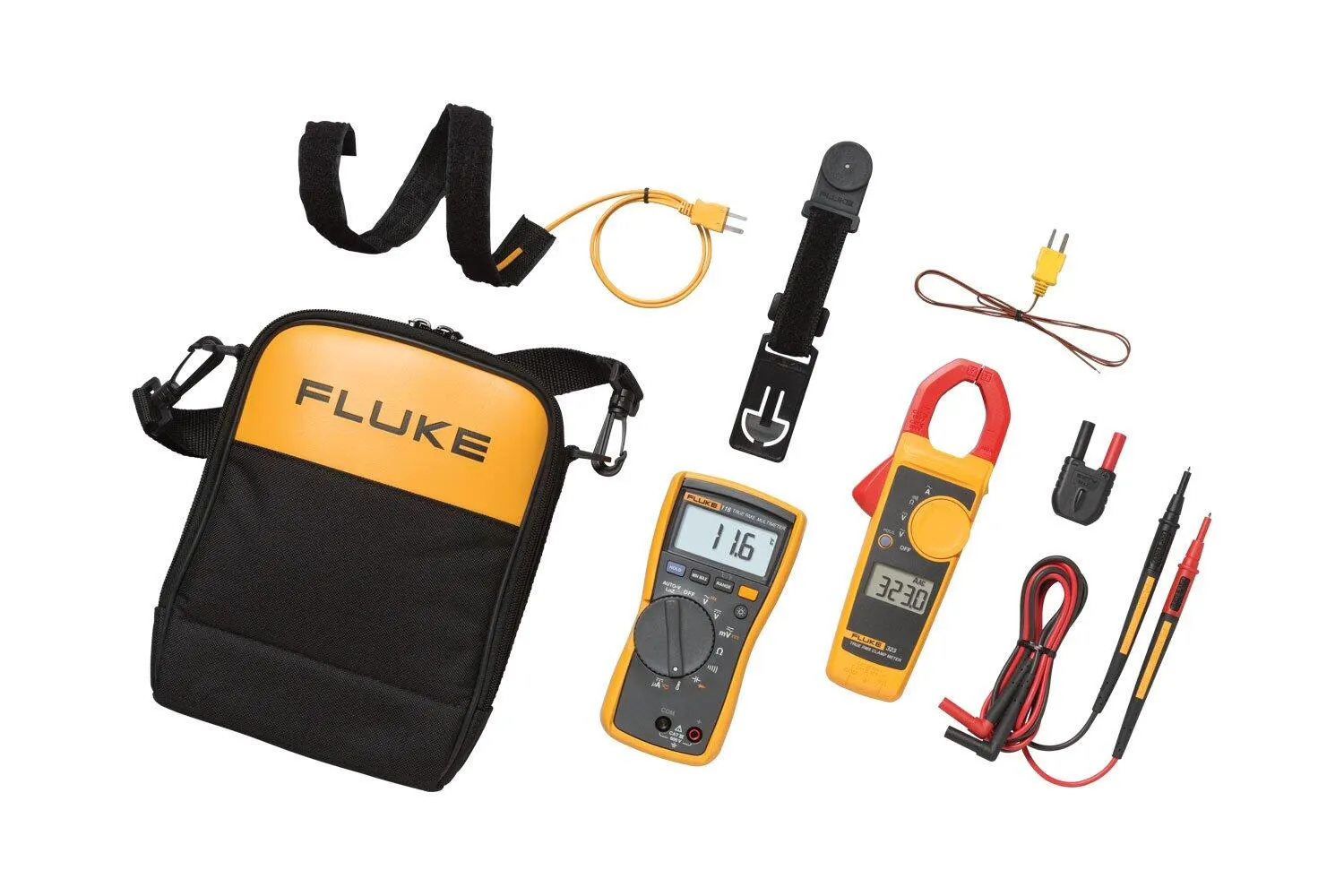

Fluke 116/323 HVAC Combo Kit - Includes Multimeter and Clamp Meter

Combine the power of Fluke's 116 HVAC Multimeter with a Fluke 323 clamp meter for productive and effective troubleshooting.

Manufacturer part number (MPN)

4296029

Brand

Fluke

Category

Tools

Maximum voltage between any terminal and earth ground

600 V

Surge protection

6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2

Display

6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating temperature

-10°C to +50°C

Storage temperature

-40°C to +60°C

Battery type

9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery life

400 hours typical, without backlight

DC millivolts Range/Resolution

600.0 mV / 0.1 mV

DC millivolts Accuracy

±([% of reading] + [counts]): 0.5% + 2

DC volts Range/Resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V

DC volts Accuracy

±([% of reading] + [counts]): 0.5% + 2

Auto volts Range/Resolution

600.0 V / 0.1 V

Auto volts Accuracy

2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)

AC millivolts¹ True RMS Range/Resolution

600.0 mV / 0.1 mV

AC millivolts¹ True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

AC volts¹ True RMS Range/Resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V

AC volts¹ True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

Continuity Range/Resolution

600 Ω / 1 Ω

Continuity Accuracy

Beeper on 250 Ω; detects opens or shorts of 500 μs or longer.

Ohms Range/Resolution

600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ

Ohms Accuracy

0.9% + 1

Diode test Range/Resolution

2.000 V / 0.001 V

Diode test Accuracy

0.9% + 2

Capacitance Range/Resolution

1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF

Capacitance Accuracy

1.9% + 2

LoZ capacitance Range

1 nF to 500 μF

LoZ capacitance Accuracy

10% + 2 typical

Temperature² (Type-K thermocouple) Range/Resolution

-40°C to 400°C / 0.1°C

Temperature² (Type-K thermocouple) Accuracy

1% + 10²

AC μamps True RMS (45 Hz to 500 Hz) Range/Resolution

600.0 μA / 0.1 μA

AC μamps True RMS (45 Hz to 500 Hz) Accuracy

1.0% + 2

DC μamps Range/Resolution

600.0 μA / 0.1 μA

DC μamps Accuracy

1.0% + 2

Hz (V or A input)² Range/Resolution

99.99 Hz / 0.01 Hz 999.99 Hz / 0.1 Hz 9.999 Hz / 0.001 Hz 50.00 Hz / 0.01 Hz

Hz (V or A input)² Accuracy

0.1% + 2

Size

167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

Weight

550 g

Warranty

3 years

AC current Range

400.0 A

AC current Accuracy

2% ±5 digits (45 Hz to 65 Hz) 2.5% ±5 digits (65 Hz to 400 Hz)

AC voltage Range

600.0 V

AC voltage Accuracy

1.5% ±5 digits

DC voltage Range

600.0 V

DC voltage Accuracy

1.0% ±5 digits

Resistance Range/Resolution

400.0 Ω/ 4000 Ω

Resistance Accuracy

1.0% ±5 digits

Continuity

≤ 70 Ω

AC response

True-rms

Data hold

Yes

Size H x W x D (mm)

207 x 75 x 34

Size Max wire diameter

30 mm (600 MCM)

Size Weight

265 g

Category rating

CAT III 600 V CAT IV 300 V

HS Code

9030.33
