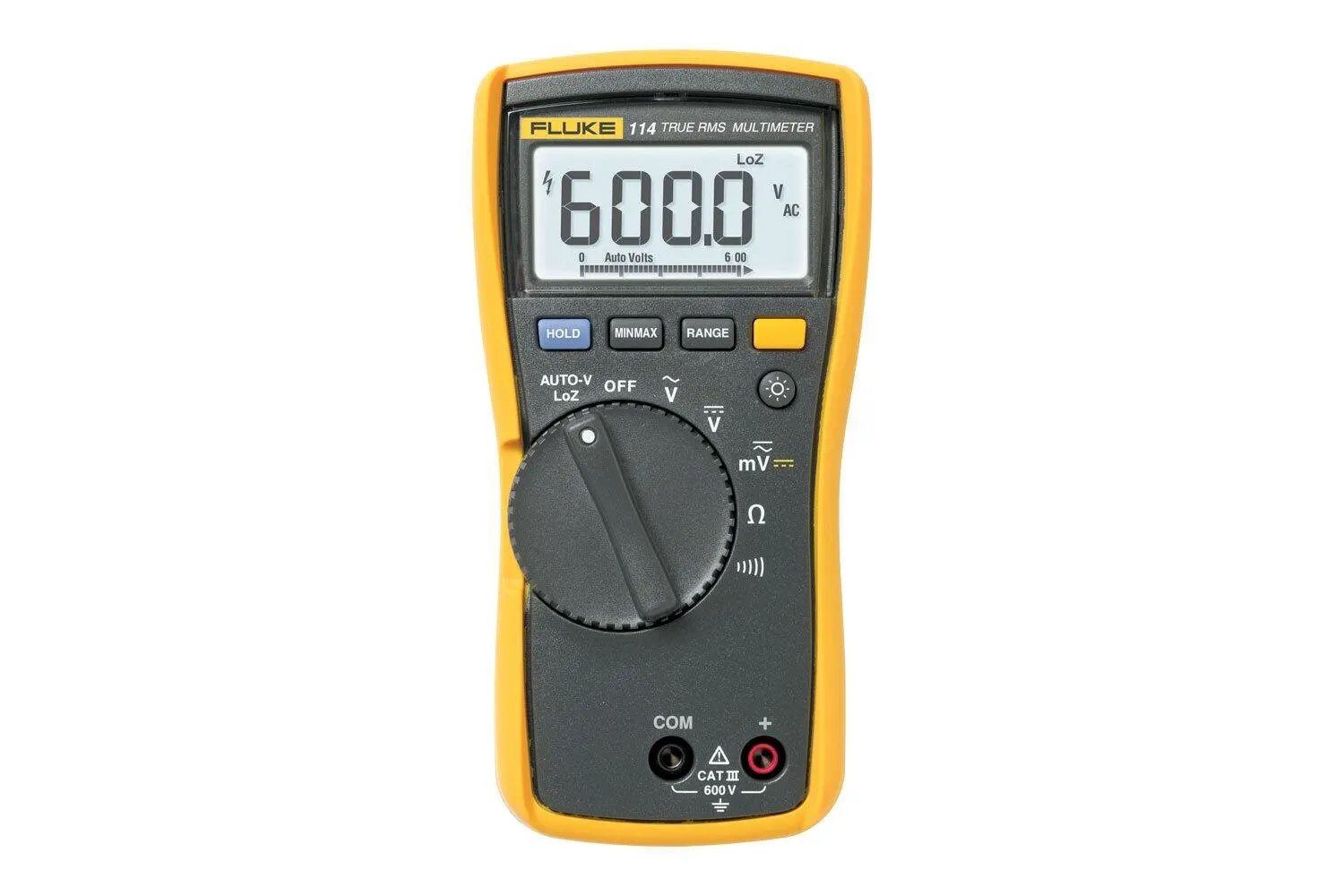

Fluke 114 Electrical Multimeter
Pricing
Request a quote
We reply within 24 hours
Product Description
Ideal for most electricians, the Fluke 114 Electrical Multimeter is CAT III 600 V safety rated & is a compact true-rms meter for any troubleshooting.
Technical Specifications
- Manufacturer part number (MPN)
- 2538783
- Brand
- Fluke
- Category
- Tools
- Maximum voltage between any terminal and earth ground
- 600 V
- Safety
- IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
- Display
- Digital: 6,000 counts, updates 4 per second
- Bar graph
- 33 segments, updates 32 per second
- Operating temperature
- -10°C to + 50°C
- Storage temperature
- -40°C to + 60°C
- Battery type
- 9 volt Alkaline, IEC 6LR61
- Battery life
- 400 hours typical, without backlight
- DC millivolts Range/resolution
- 600.0 mV / 0.1 mV
- DC millivolts Accuracy
- ± ([% of reading] + [counts]): 0.5% + 2
- DC volts Range/resolution
- 6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
- DC volts Accuracy
- ± ([% of reading] + [counts]): 0.5% + 2
- Auto volts Range/resolution
- 600.0 V / 0.1 V
- Auto volts Accuracy
- 2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
- AC millivolts1 True RMS Range/resolution
- 600.0 mV / 0.1 mV
- AC millivolts1 True RMS Accuracy
- 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
- AC volts1 True RMS Range/resolution
- 6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
- AC volts1 True RMS Accuracy
- 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
- Continuity Range/resolution
- 600 Ω / 1 Ω
- Continuity Accuracy
- Beeper on 250 Ω detects opens or shorts of 500 μs or longer.
- Ohms Range/resolution
- 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
- Ohms Accuracy
- 0.9% + 1
- Size
- 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
- Weight
- 550 g
- Warranty
- 3 years
Standards & Compliance
- HS Code
- 9030.33
Cross References
- OEM-URL https://www.fluke.com/en-us/product/electrical-testing/digital-multimeters/fluke-114
