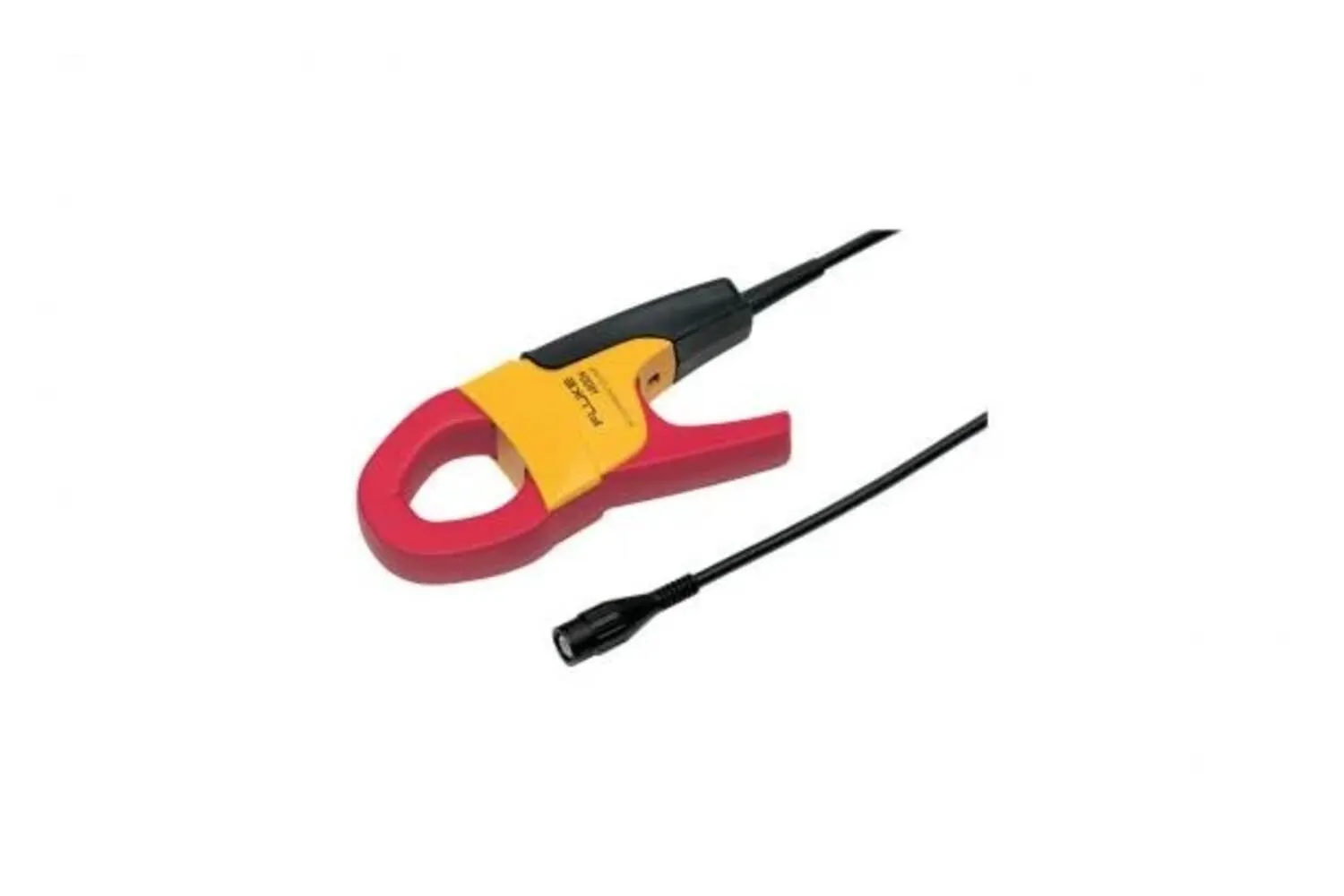

Fluke I400S AC Current Clamp

This AC current clamp with BNC output extends the functionality of portable oscilloscopes or power quality meters to measure up to 400 A AC. Buy Online Now.

Manufacturer part number (MPN)

2277202

Brand

Fluke

Category

Tools

Nominal current range 40 A Range

0.5 A to 40 A

Nominal current range 400 A Range

5 A to 400 A

Basic accuracy 40 A Range

2% + 0.015 A (45-400 Hz)

Basic accuracy 400 A Range

2% + 0.04 A (45-400 Hz)

Phase shift

40 A Range

0.5 to 1 A

Unspecified

1 A to 5 A

4°

5 A to 10 A

3°

10 A to 20 A

3°

20 A to 40 A

2°

40 A to 400 A

1.5°

Typical bandwidth 40 A Range

5 Hz - 10 kHz

Typical bandwidth 400 A Range

5 Hz - 10 kHz

Output level(s) 40 A Range

10 mV/A

Output level(s) 400 A Range

1 mV/A

Crest factor 40 A Range

≤ 3

Crest factor 400 A Range

≤ 3 to 300 A

Safety

CAT IV, 600 V, CAT III, 1000 V

Maximum non-destructive current

1000 V AC

Warranty

1 year

Maximum conductor size

32 mm (1.25 inches)

Output cable length

2.5 m (8.2 ft)

BNC adapter

Yes

Dimensions

150 x 70 x 30 mm

Weight

114 g

HS Code

9030.33
