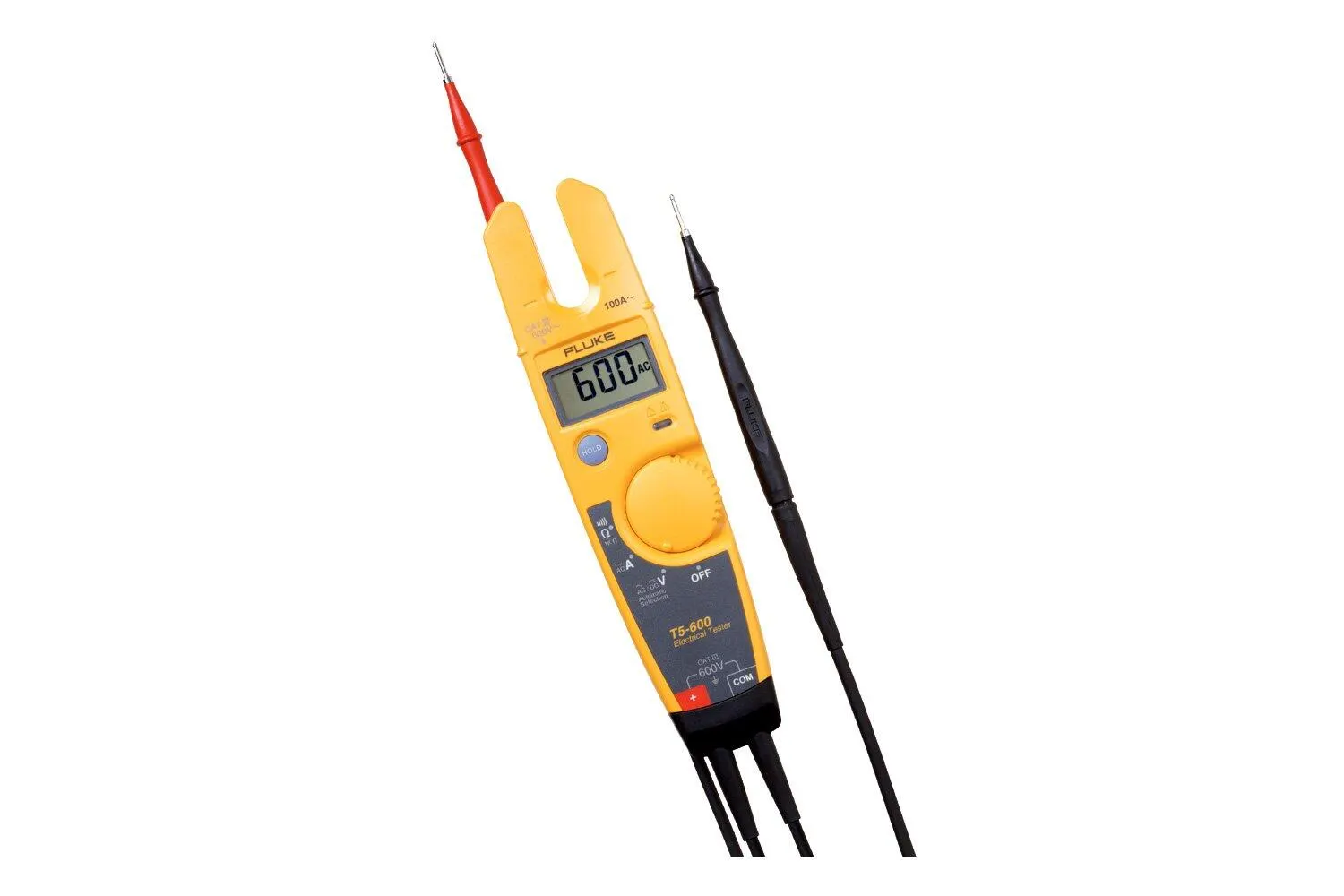

Fluke T5-600 Electrical Tester

Check voltage, continuity and current with Fluke T5-600 V digital voltmeter. Just select volts, ohms, or current, and light the tester do the rest!

Manufacturer part number (MPN)

648227

Brand

Fluke

Category

Tools

Jaw opening

12.9 mm (0.5 in)

Max wire size

1/0 THHN Cable

AC response

Averaging

Voltage AC 600V rms

1V Resolution

Accuracy AC current (50/60 Hz)

3% ± 3 counts

Range & Accuracy DC 600V

1V Resolution

AC Current (50/60Hz) 100.0A AC

0.1A Resolution

DC

1% ± 1 count

Resistance (Ohms) 1000 Ohms

1 Ohm Resolution

Continuity beeper threshold

On at 400 Ω

Volts indicator LED threshold

Guaranteed on by 30 V AC

Operating temperature

-10°C to 50°C

Storage temperature

-30°C to 60°C

Humidity (without condensation)

0% to 95% (5°C to 30°C); 0% to 75% (30°C to 40°C); 0% to 45% (40°C to 50°C)

Dust/water resistance

Yes

Operating altitude

2000 meters max

Temperature coefficient

0.1 x (specified accuracy)/°C ( 28°C)

Measurement Category

IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac

Agency approvals

CSA, TUV

Maximum voltage

600 V between any terminal and earth ground

Size

30.5 x 51 x 203 mm

Weight

300 g

Warranty

Two-years

Battery life

200 hour zinc chloride, 400 hour alkaline

Battery type

2 x AA

Low battery indicator

Yes

Current sensor opening

12.9 mm

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/basic-testers/fluke-t5-600
