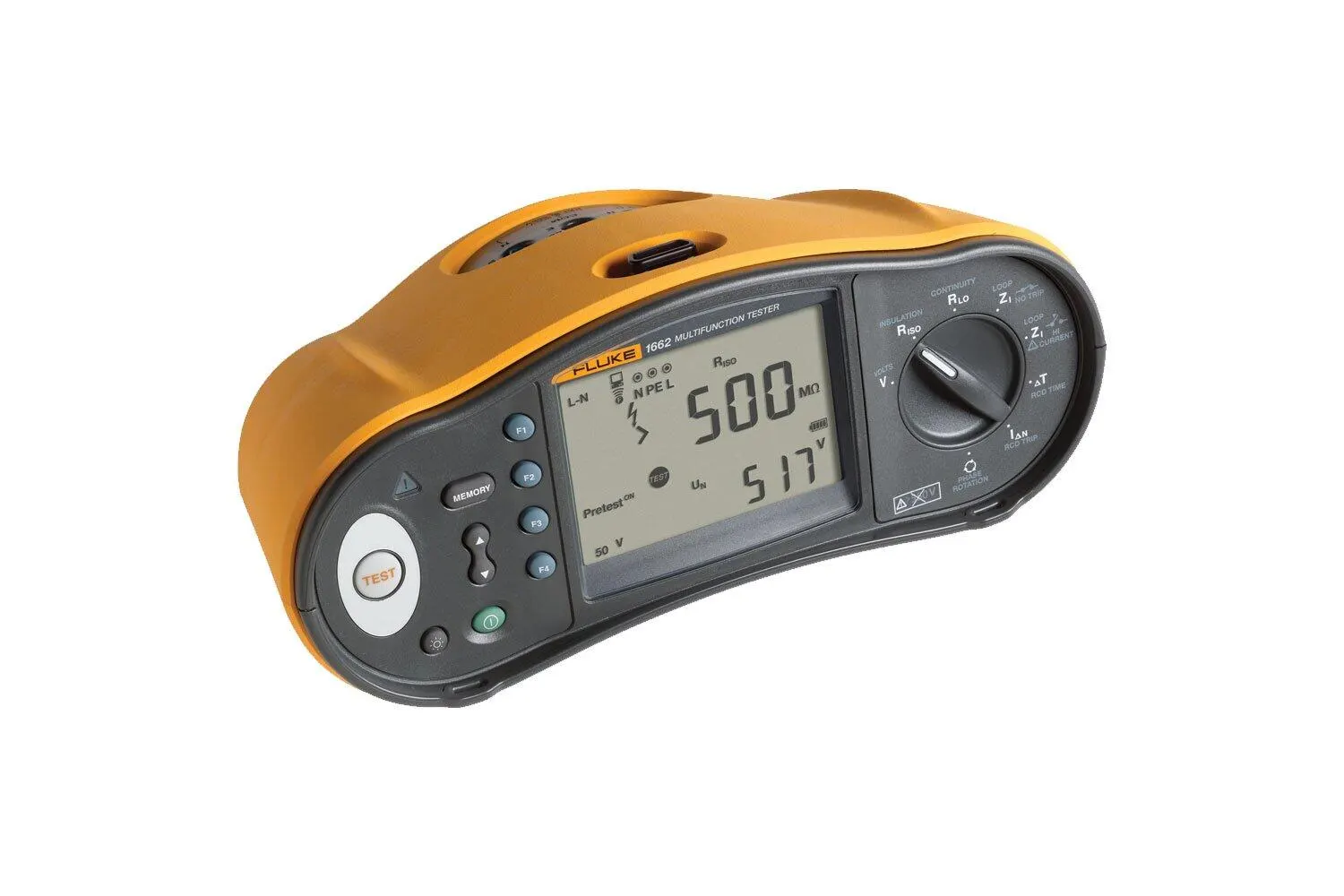

Fluke 1662 Multifunction Testers

The 1662, one of our multifunction testers, tests to all local regulations & provides test results for complete documentation. Learn more today!

Manufacturer part number (MPN)

4884263

Brand

Fluke

Category

Tools

Range

500 V

Resolution

0.1 V

Accuracy 45 Hz – 66 Hz

0.8% + 3

Input impedance

360 kΩ

Overload protection

660 V rms

Range (autoranging)

20 Ω / 200 Ω / 2000 Ω

Open Circuit Voltage

>4 V

Accuracy of test voltage (at rated test current)

+10%, -0%

Test voltage

100 V 250 V 500 V 1000 V

Insulation resistance range

20 MΩ / 50 MΩ 20 MΩ / 100 MΩ 20 MΩ / 200 MΩ 20 MΩ / 200 MΩ / 500 MΩ 20 MΩ / 200 MΩ / 1000 MΩ

Test current

1 mA @ 50 kΩ 1 mA @ 100 kΩ 1 mA @ 250 kΩ 1 mA @ 500 kΩ 1 mA @ 1 MΩ

Computation

Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively.

RCD Type

A4, AC¹, G², S³

Notes

¹Responds to AC ²General, no delay ³Time delay 4Responds to pulsed signal 5Responds to smooth DC signal

Current settings¹

10-30-100-300-500-1000 mA – VAR 10-30-100 mA

Multiplier

x ½, x 1 x 5

Measurement range RCD Type G

310 ms 50 ms

Measurement range RCD Type S

510 ms 160 ms

Current range

30% to 110% of RCD rated current¹

Step size

10% of IΔN²

Dwell time Type G

300 ms/step

Dwell time Type S

500 ms/step

Measurement accuracy

±5%

Specified trip current ranges (EN 61008-1)

50% to 100% for Type AC 35% to 140% for Type A (>10 mA) 35% to 200% for Type A (≤10 mA) 50% to 200% for Type B ²5% for Type B

Icon

Phase Sequence indicator is active.

Size (L x W x H)

10 x 25 x 12.5 cm

Weight (incl. batteries)

1.3 (kg)

Battery size, quantity

Type AA, 6 ea.

Sealing

IP-40

Safety

Complies with EN/IEC 61010-1 and EN/IEC 61010-2-034

Overvoltage

CAT III / 500V; CAT IV 300V

Performance

EN61557-1 to EN61557-7 and EN61557-10
