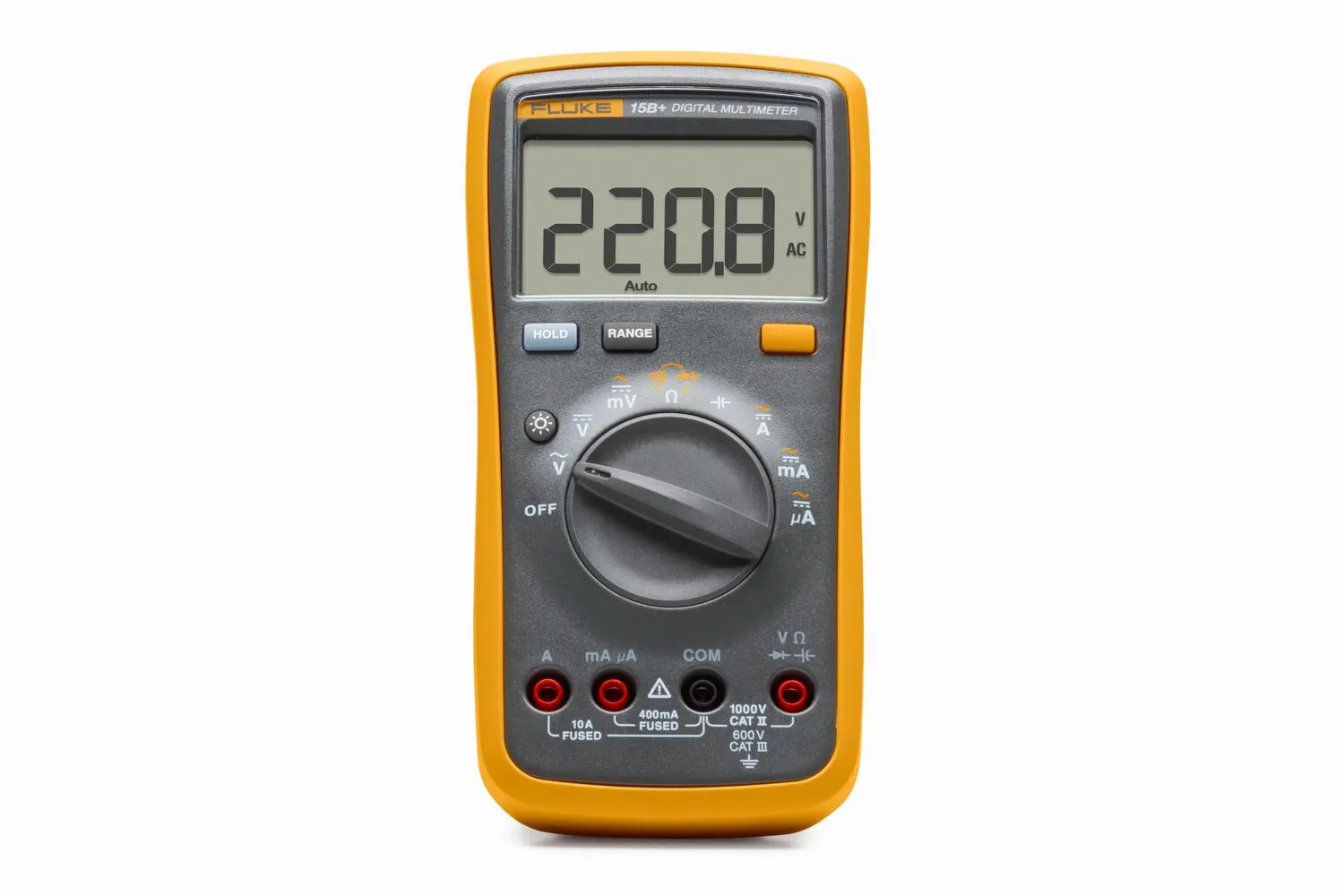

Fluke 15B+ digital Multimeter

The Fluke 15B+ digital multimeter is a compact, easy to use tool that delivers safe, reliable measurements

Manufacturer part number (MPN)

4404210 Brand: Fluke Category: Tools Function Range: Resolution AC volts (40 Hz to 500Hz)1 4.000 V 40.00 V 400.0 V 1000 V: 0.001 V 0.01 V 0.1 V 1 V DC volts 4.000 V 40.00 V 400.0 V 1000 V: 0.001 V 0.01 V 0.1 V 1 V AC millivolts 400.0 mV: 0.1 mV DC millivolts 400.0 mV: 0.1 mV Diode test2 2.000 V: 0.001 V 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ: 0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ 40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF: 0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF AC current μA (40 Hz to 400 Hz) 400.0 μA 4000 μA: 0.1 μA 1 μA AC current mA (40 Hz to 400 Hz) 40.00 mA 400.0 mA: 0.01 mA 0.1 mA AC current A (40 Hz to 400 Hz) 4.000 A 10.00 A: 0.001 A 0.01 A DC current μA 400.0 μA 4000 μA: 0.1 μA 1 μA DC current mA 40.00 mA 400.0 mA: 0.01 mA 0.1 mA DC current A 4.000 A 10.00 A: 0.001 A 0.01 A Function Overload protection: Input impedance (Nominal) AC volts 1000 V 1: >10 MΩ <100 pF AC millivolts 400 mV: >1MΩ, <100 pF DC volts 1000 V 1: >10 MΩ <100 pF DC millivolts 400 mV: >1MΩ, <100 pF Maximum voltage between any terminal and earth ground: 1000 V Display (LCD): 4000 counts, updates 3/sec Battery type: 2 AA, NEDA 15A, IEC LR6 Battery life: 500 hours minimum Operating: 0 °C to 40 °C Storage: -30 °C to 60 °C Operating humidity: Non-condensing (<10°C) ≤90% RH at 10 °C to 30 °C; ≤75% RH at 30 °C to 40 °C Temperature coefficient: 0.1 X (specified accuracy) /°C (28 °C) Fuse protection for current inputs: 440 mA, 1000 V Fast Fuse, Fluke specified part only. 11A, 1000V Fast Fuse, Fluke specified part only. Size (H x W x L): 183 x 91 x 49.5 mm Weight: 455 g IP rating: IP 40 Safety: IEC 61010-1, IEC61010-2-030 CAT III 600 V, Pollution Degree 2 Electromagnetic Compatibility: IEC 61326-1: Portable EMC Environment

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/digital-multimeters/fluke-15b-plus
