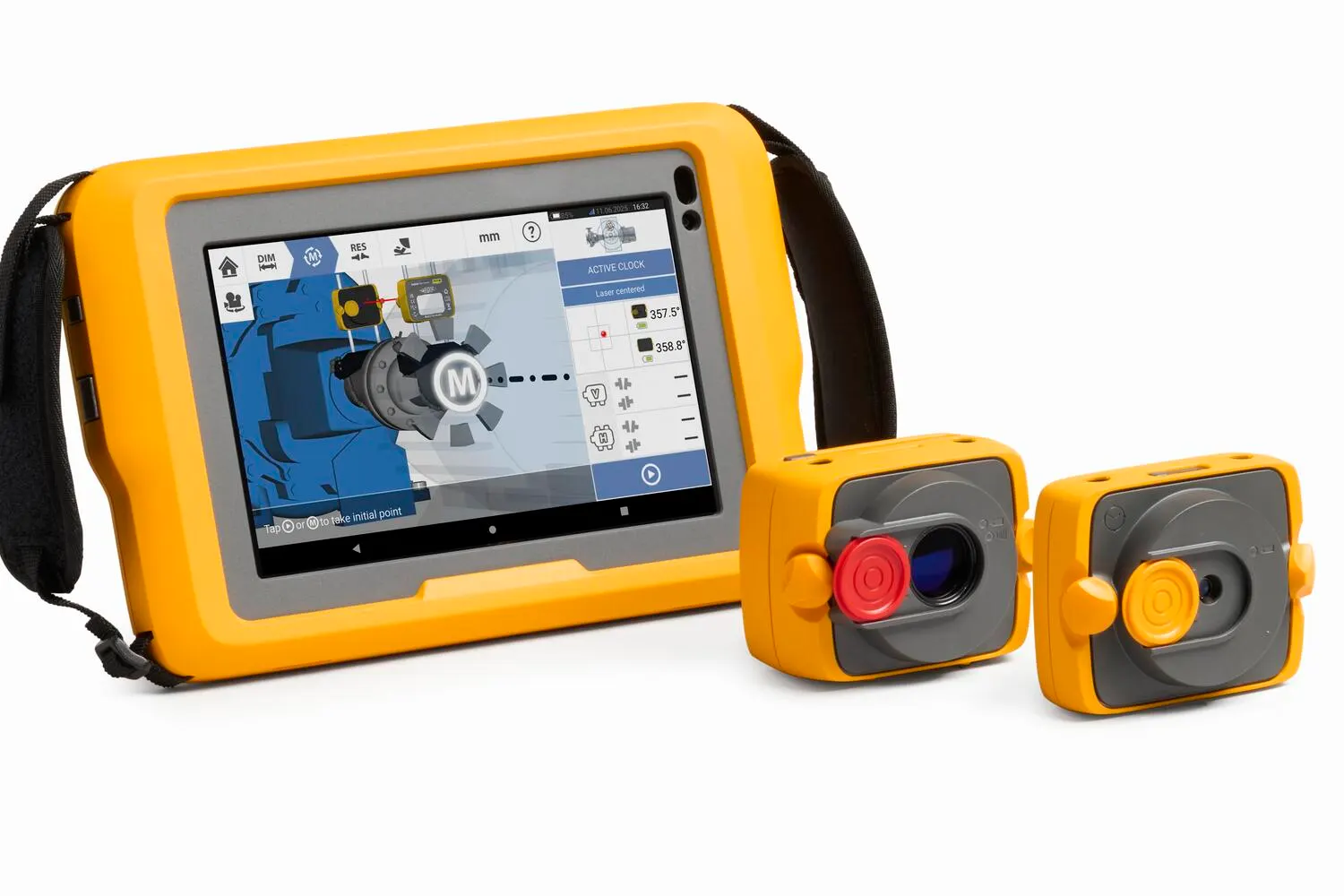

Fluke 832

Fluke 832 delivers fast, precise laser shaft alignment with a single‑laser, dual‑detector system, easy setup, real‑time corrections, and built‑in reporting—ideal for reliable alignment of standard rotating machinery.

Manufacturer part number (MPN)

6120945

Brand

Fluke

Category

Tools

Drop test

1.2 m (4 ft)

Dimensions

267 mm L x 171 mm H x 35 mm D 10 33/64" x 6 47/64" x 1 3/8"

Weight

930 g/2.1 lbs

CE conformity

Refer to the CE compliance certificate

Carrying case Dimensions

595 x 355 x 115 mm (23 1/2" x 14" x 4 1/2")

Type 6-axis

2 planes (4 displacement axes and 2 angles)

Measurement Optical range

14 x 14 mm (0.55 x 0.55 in.)

Measurement Area

Unlimited, dynamically extendible

Measurement Resolution

1 μm (0.04 mil); Angular 10 μRad

Measurement Error

< 2%

Measurement Transmitted rate

Approx. 20 Hz

Inclinometer Resolution

0.1°

Inclinometer Error

Roll +-1°; Pitch +- 3°

LED indicators

1 LED for laser adjustment, battery and charge status; 1 LED for BT communication

Power supply Battery

Lithium-Ion rechargeable battery 3.7 V, 4.7 Wh

Power supply Operating time

30 hours (continuous use)

Power supply Charging time

2.5 h for up to 80%; 4 h for up to 100%

Power supply Charging

USB-C

External interface

Integrated low power 2.4 GHz Radio (BT LE); USB 2.0 Full Speed

Radio transmission distance

Up to 50 m (160 ft) direct line of sight

Environmental protection IP 65

Dustproof and water jets resistant, shockproof

Environmental protection Relative humidity

10% to 90%

Ambient light protection

Optical and active electronic digital compensation

Temperature range Operation

-10°C to 50°C (14°F to 122°F)

Temperature range Charging

0°C to 35°C (32°F to 95°F)

Temperature range Storage

-20°C to 50°C (-4°F to 122°F)

Type

Semiconductor laser diode

Laser Power

< 1 mW

Laser Divergence

0.3 mrad

Laser Wavelength

630-640 nm (red, visible)

Laser Separation distance

Up to 10 m

Laser Adjustment

No

Laser Safety class

Class 2 according to IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019. Safety precaution: Do not look into laser beam
