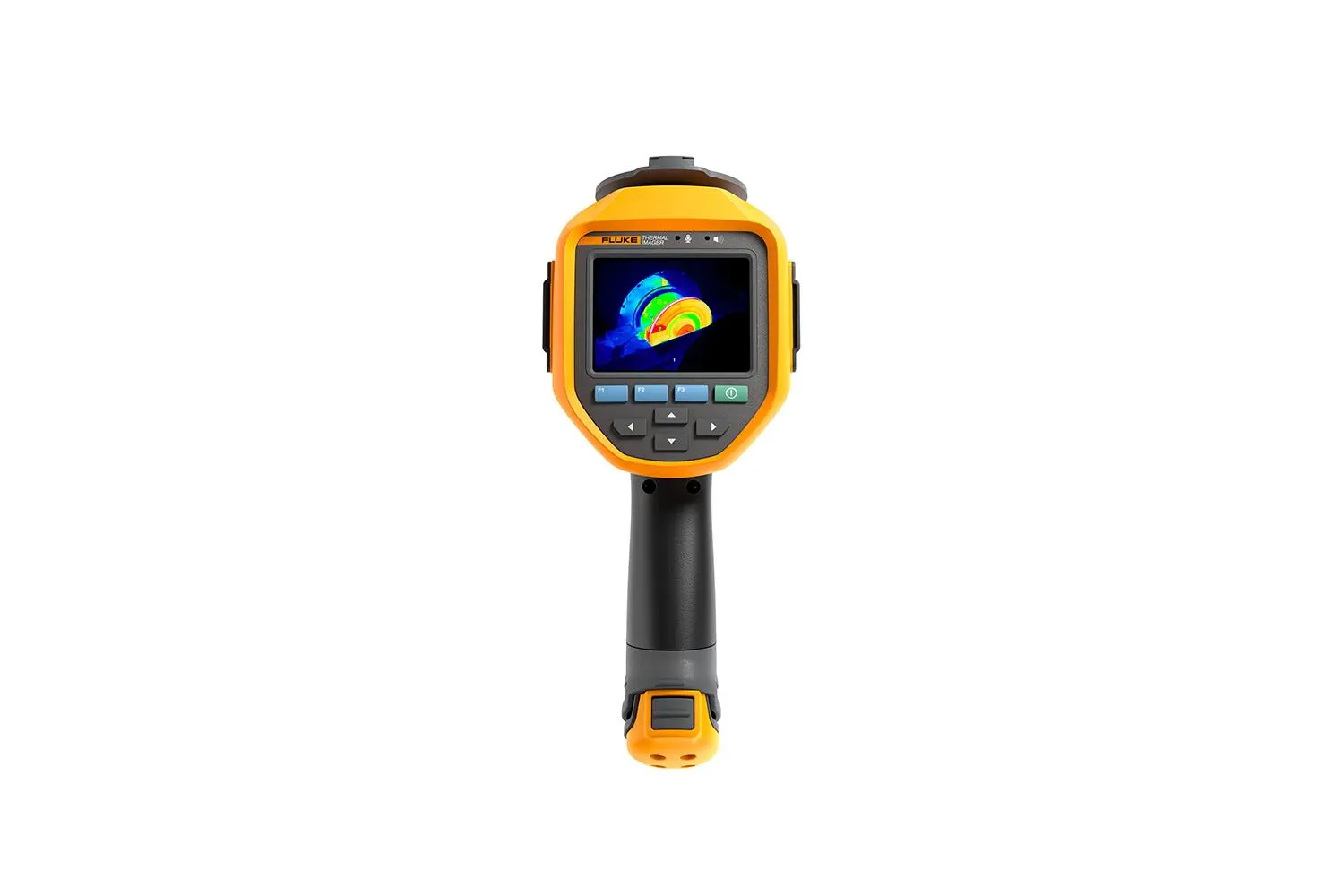

Fluke TI480U / TI401U / TI300U Thermal Imagers

The Ultra Series Thermal Imagers come with superior performance, with improvements in thermal imaging resolution, focus speed, frame rate and software features.

Manufacturer part number (MPN)

5499084 Brand: Fluke Category: Tools Function Parameter Fluke Ti480u: Fluke Ti401u Detector type: Uncooled focal plane infrared detector Thermal sensitivity (NETD) @ 30 °C 50 mk (0.05 °C): 75 mk (0.075 °C) Spectral response: 7 to 14 μm Lens Field of View (FOV): 25° x 19° minimum imaging distance 0.25 m: 0.1 m Lens focal distance f 24.8: f 15 Focus: Auto / Manual Focus Lens recognition: Auto Optional lens: 2x telephoto lens Temperature range -20 °C to 1200 °C: -20 °C to 650 °C Temperature accuracy: ±2 °C or 2%, whichever is greater (@ 23 °C ± 5 °C ambient temperature) Temperature measurement area: Spots: 16 Global temperature measurement correction: Support emissivity, environment temperature, reflected temperature, relative humidity, temperature measurement distance, IR window (temperature and transmittance) correction Area temperature measurement correction: Yes Area audible alarm: Support high and low temperature alarm for the highest, lowest and average temperature of the area Temperature rise function: Reference temperature can be the highest, lowest, or custom temperature of the area On-Imager analysis: The thermal photos or videos are directly analyzed in the Imager Analysis software for PC: SmartView IR Display Screen: 3.5" LCD, 640 × 480 Image mode: Thermal image, Visible image, PIP, Fusion Palettes: Grey, Iron 10, IronRed, Rainbow, Grey10, GreyRed, MidGrey, Yellow and Rain Temperature span mode: Support automatic adjustment of temperature span (min. 3 °C) Color and audible alarm: Yes. Above the temperature, below the temperature and between the temperature Information displayed on the image: Display the global maximum, minimum, average temperature and temperature measurement parameters High/low temperature tracking: Marking and automatically tracks high and low temperature points Picture-in-Picture (PIP): Yes. The size, position and blending degree of infrared window can be adjusted digital camera: Industrial grade digital camera with 13-megapixel lens Memory card: Micro SD card, standard 64 GB; expandable to 128 GB Shooting Mode: Support single frame and time-lapse shooting Image format: .bmp .jpg Code scanning function: Yes. A QR code can be scanned as a label Annotation function: Support voice, text and label annotation Gallery: Support viewing, editing and deleting captured images and video files Bluetooth connection: Support BT4.2 LE USB interface: Type-A, USB 2.0 HDMI interface: Mini HDMI interface, HDMI 1.4 HDMI output: Support connection to a display or a projector via the HDMI interface Laser: Yes Temperature feature measurement: Support measuring the length of the temperature measurement line; support measuring the rectangular and circular area of the temperature measurement area LED torch/flashlight: Support flashlight and flash mode Battery type: 7.2V, 19Whr lithium battery, replaceable and rechargeable on field Battery life: 2 to 3 hours/battery (*Actual life depends on settings and usage) Charge Mode: 10-15 V DC charging Charging time: 2.5 hours to full charge Energy saving management: Auto screen-off Battery charge: Ti SBC3B Two Bay Battery Charger (100 V ac to 240 V ac, 50/60 Hz, included), or in-Imager charging. Optional 12 V automotive charging adapter. External power supply: Power adapter (110 to 220 V, 50/60 Hz AC power) Safety standard: IEC 61010-1: pollution degree 2 Electromagnetic Compatibility (EMC): International: IEC 61326-1: Industrial Electromagnetic Environment; CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) Radio frequency: 2400 MHz to 2483.5 MHz Radio output power: <100 mW Ingress protection rating: IEC 60529: IP52 Drop test: Designed for 1 m drop resistance Operating temperature: -10 °C to 50 °C Storage temperature: -20 °C to 50 °C, without battery Relative humidity: 0% to 95% (non-condensing) Dimensions: 27.9 cm x 12.2 cm x 17.5 cm Weight 1215 g: 1188 g Warranty: 2 years Recommended calibration period: 2 years Supported languages: Simplified Chinese, English, Japanese, Korean, Traditional Chinese Lens name Field of view: minimum imaging distance Standard lens 25° x 19°: 0.1 m (Ti300U)，0.25 m (Ti480/401U) Wide-angle lens 44° x 34°: 0.1 m 2x telephoto lens 12° x 9°: 1.0 m (Ti480U/401U), 0.25 m (Ti300U) 4x telephoto lens 7° x 5°: 3.0 m (Ti480U/401U), 1 m (Ti300U)
