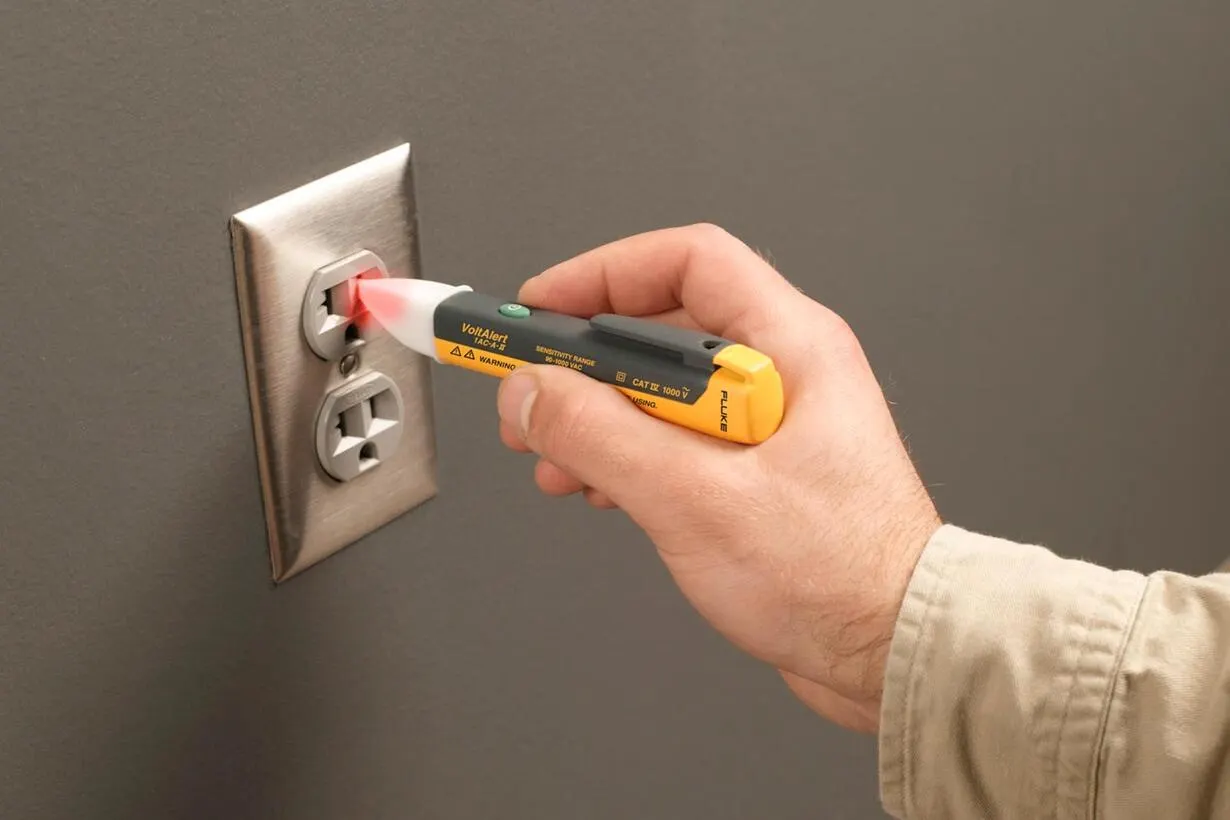

Fluke 1AC II Non-Contact Voltage Tester

Safely test for energized circuits with the easy to use non-contact voltage tester Fluke 1 AC II electrical tester pen or tic tracer. Even detect miss-wires of an electrical outlet.

Manufacturer part number (MPN)

2432932

Brand

Fluke

Category

Tools

Operating Principles

Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.

Voltage sensing ranges

Nominally, 90 V AC to 1000 V AC

Detector tip style

Flat-tip

Light source

One high intensity red LED

Agency Approvals

‍‍‍

Safety

IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 1000 V

EMC

IEC 61326-1: Portable

IP Rating

IP 40

Operating Temperature

-10°C to 50°C (-14°F to 122°F)

Operating Humidity Ranges

0% to 95% (0°C to 30°C)

Operating Altitude

3000 m

Cleaning

Clean with damp cloth

Batteries

2 AAA alkaline batteries included

Battery Life

Typical battery life of greater than 1 year

Warranty Period

Two years

HS Code

9030.33
