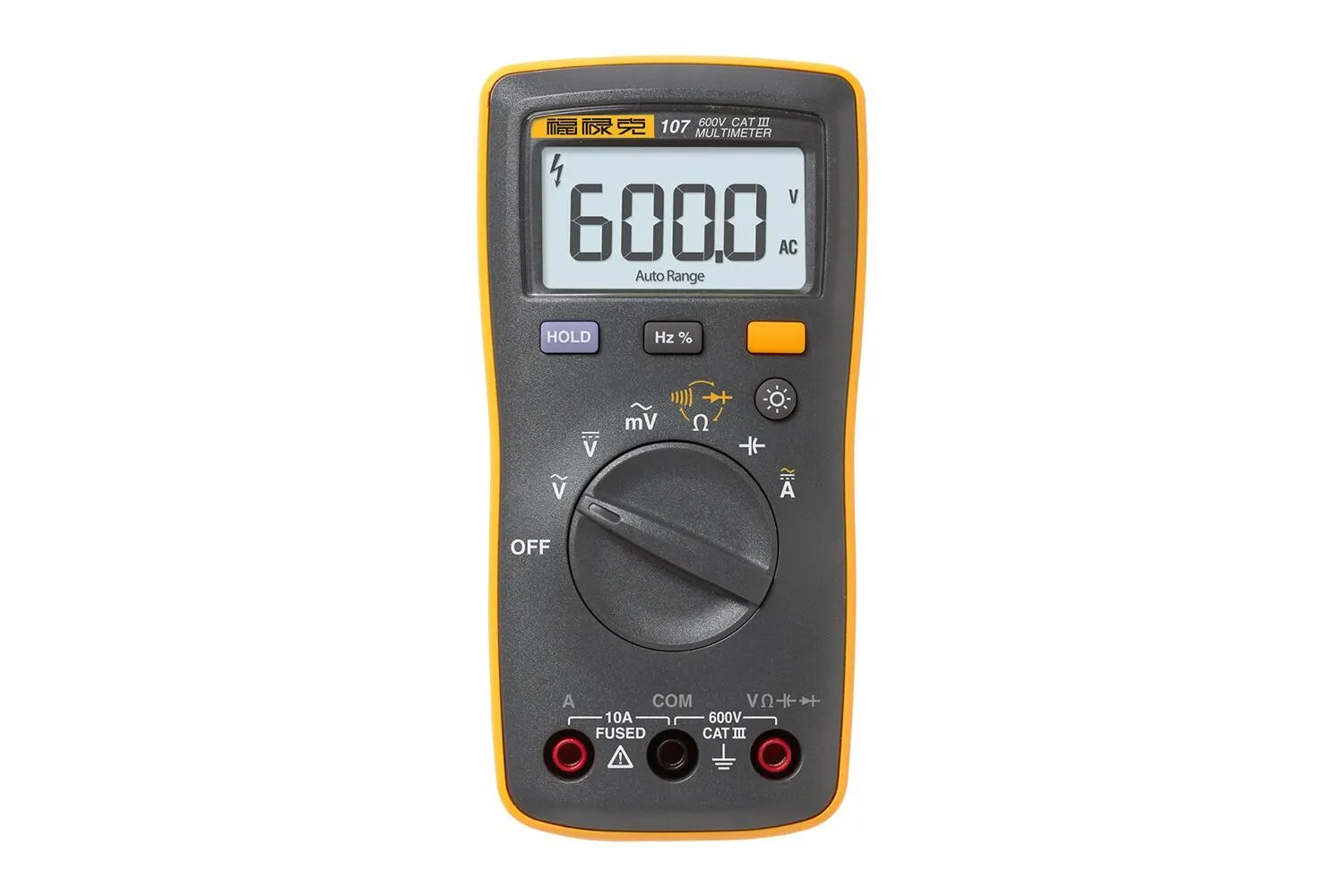

Fluke 107 Pocket Digital Multimeter

Stay safe with the Fluke 107 pocket-size multimeter, measure resistance, current and voltage. Compact and easy-to-use CAT III mini multimeter for everyday use.

Manufacturer part number (MPN)

4367953

Brand

Fluke

Category

Tools

AC voltage (40 Hz to 500 Hz)1 Range

Resolution

6.000 V 60.00 V 600.0 V 0.001 V 0.01 V 0.1 V

1.0 % + 3

DC voltage 6.000 V 60.00 V 600.0 V

0.001 V 0.01 V 0.1 V

Exchange millivolts 600.0 mV

0.1 mV

Diode test2 2.000 V

0.001 V

400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ

0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ

50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF

0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF

50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz

0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz

Duty cycle4 1 % to 99 %

0.10 %

AC current (40 Hz - 200 Hz) 4.000 A 10.00 A

0.001 A 0.01 A

DC 4.000 A 10.00 A

0.001 A 0.01 A

Features Overload protection

Input impedance (nominal value)

AC voltage 600 V 1

>10 MΩ 2

Exchange millivolts 600 mV

>1M, <100 pF

DC voltage 600 V 1

>10 MΩ <100 pF

The highest voltage applied to any terminal and ground

600 V

Display (LCD)

6000 counts, updated three times per second

Type of battery

Two AAA batteries (NEDA 24A, IEC LR03)

Battery life

At least 200 hours

Operating temperature

0 °C to 40 °C

Storage temperature

-30 °C to 60 °C

Working humidity

No condensation below 10 °C ≤ 90 % at 10 °C to 30 °C; ≤ 75 % at 30 °C to 40 °C

Working humidity, 40 MΩ range

≤ 80 % at 10 °C to 30 °C; ≤ 70 % at 30 °C to 40 °C

Working elevation

2000 m

Storage altitude

12,000 m

Temperature coefficient

0.1 X (specified accuracy) / °C (28 °C)

Current input fuse protection

11A, 1000V fast-melting type, must use Fluke designated parts

Volume (height x width x length)

142 mm x 69 mm x 28 mm

Weight

200 g

Protection level

IEC 60529: IP 40

Safety

IEC 61010-1: 600 V CAT III, pollution degree 2

Electromagnetic environment

IEC 61326-1: Portable

Electromagnetic compatibility

Applicable only in Korea. Class A equipment (industrial broadcasting and communication equipment)1

HS Code

9030.33
