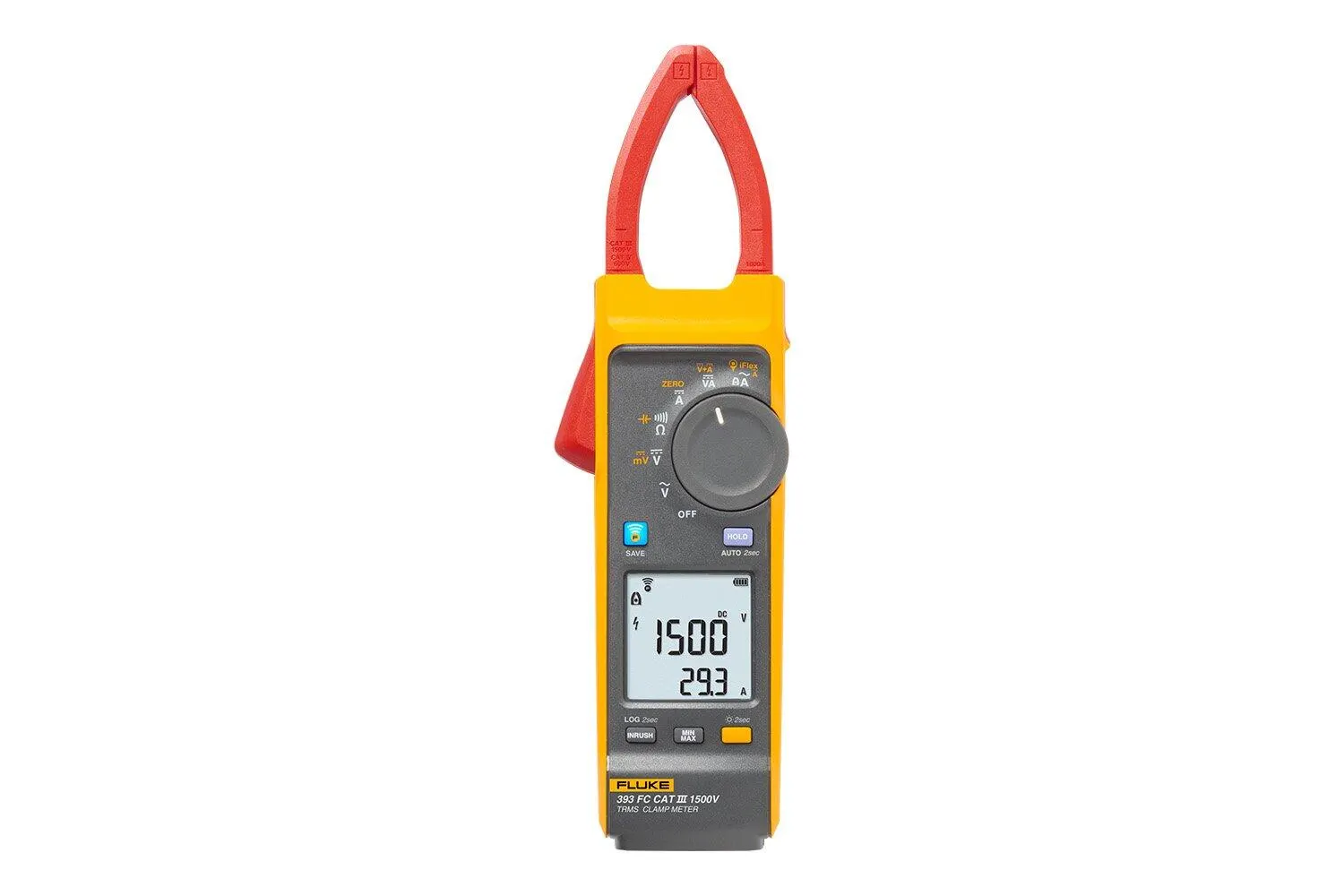

Fluke 393 FC Solar Clamp Meter CAT III 1500 V

393 FC solar clamp meter measures up to 1500 V dc, 1000 V ac, IP54 rated, CAT III. Ideal for PV installation, solar PV arrays, electric railways and data centers.

Manufacturer part number (MPN)

5274864

Brand

Fluke

Category

Tools

Maximum voltage between any terminal and earth ground

1000 V AC 1500 V DC

Batteries

2 AA IEC LR6 alkaline

Display

Dual display with backlight

Automatic power off

20 minutes

Accuracy

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits]).

Temperature coefficients

Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C

Range

999.9 A

Resolution

0.1 A

Crest Factor (50/60 Hz)

2.5 @ 600.0 A 3.0 @ 500.0 A 1.42 @ 999.9 A Add 2 % for C.F. >2

Position sensitivity Distance from Optimum

i2500-10 Flex

A 0.5 in (12.7 mm)

1.4 in (35.6 mm)

B 0.8 in (20.3 mm

2.0 in (50.8 mm

C 1.4 in (35.6 mm)

2.5 in (63.5 mm

HS Code

9030.33
