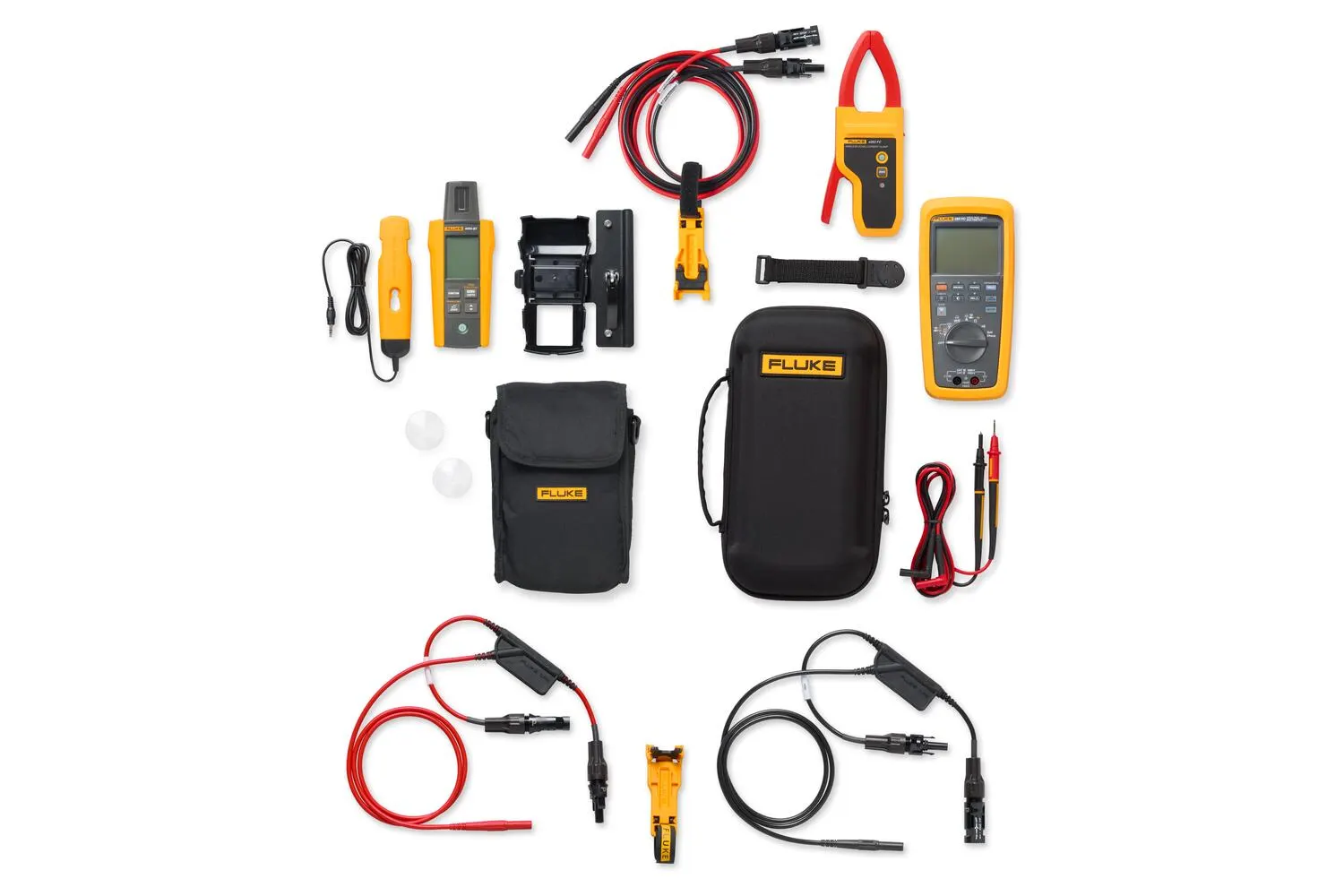

Fluke 283 FC/PV Solar Kit with IRR2-BT, TLPV1 and TLPV2 Test Leads

Solar diagnostic kit with irradiance meter, CAT III 1500 V DMM, and MC4 test leads for PV testing.

Manufacturer part number (MPN)

6162791

Brand

Fluke

Category

Tools

Maximum voltage between any terminal and earth ground

1000 V AC 1500 V DC

Batteries

2 AA IEC LR6 alkaline

Display

Dual display with backlight

Automatic power off

20 minutes

Accuracy

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits]).

Temperature coefficients

Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C

Range

999.9 A

Resolution

0.1 A

Crest Factor (50/60 Hz)

2.5 @ 600.0 A 3.0 @ 500.0 A 1.42 @ 999.9 A Add 2 % for C.F. >2

Position sensitivity Distance from Optimum

i2500-10 Flex

A 0.5 in (12.7 mm)

1.4 in (35.6 mm)

B 0.8 in (20.3 mm

2.0 in (50.8 mm

C 1.4 in (35.6 mm)

2.5 in (63.5 mm

Voltage

Complies to IEC / EN 61010-031 CAT III 1500 V Do Not Disconnect Under Load Not Intended for Permanent Installation

Current

30 A

Temperature Range

+5 °C to +30 °C (+41 °F to +86 °F), < 80 % RH +31 °C to +40 °C (+88 °F to +104 °F), < 50 % RH

HS Code

9030.90
