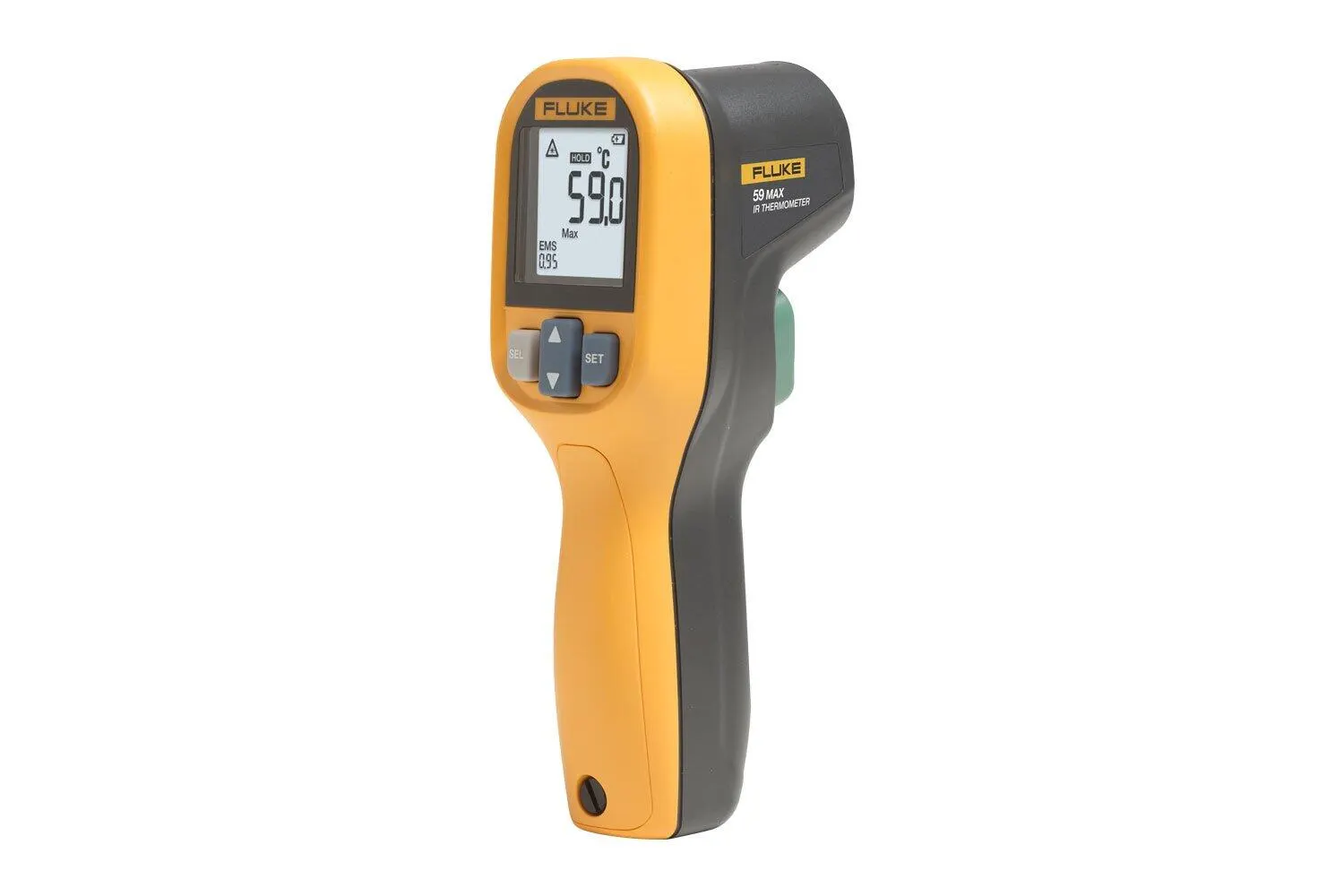

59 MAX Infrared Thermometer

Fluke 59 MAX Infrared Thermometer is a precision non-contact IR thermometer that delivers accurate, repeatable measurements. Reviews, manual, price, datasheet.

Manufacturer part number (MPN)

4393777

Brand

Fluke

Category

Tools

Temperature Range

-30°C to 350°C (-22°F to 662°F)

≥ 0°C

±2.0°C or ±2.0% of reading, whichever is greater

≥ -10°C to <0°C

±2.0°C

< -10°C

±3.0°C

≥ 32°F

±4.0°F or ±2.0% of reading, whichever is greater

≥ 14°F to <32°F

±4.0°F

< 14°F

±6.0°F

Response Time (95%)

< 500 ms (95% of reading)

Spectral Response

8 mm to 14 mm

Emissivity

0.10 to 1.00

Distance to Spot Ratio

8:1 (calculated at 90% energy)

Display Resolution

0.1°C (0.2°F)

Repeatability (% of reading)

±1.0% of reading or ±1.0°C (±2.0°F), whichever is greater

Power

1 AA IEC LR06 Battery

Battery Life

12 hours with laser and backlight on

Weight

220 g (7.76 oz)

Size

156 x 80 x 50 mm (6.14 x 3.15 x 2 in)

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-20°C to +60°C (-4°F to 140°F), (without battery)

Operating Humidity

10% to 90% RH non-condensing @ 30°C (86°F)

Operating Altitude

2000 meters above mean sea level

Storage Altitude

12,000 meters above mean sea level

Drop Test

1 m

Ingress Protection Rating

IP40 per IEC 60529

Vibration and Shock

IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms

Compliance

EN/IEC 61010-1

Laser Safety

FDA and EN 60825-1 Class II

Electromagnetic Compatibility

61326-1 EN 61326-2

HS Code

9025.19
