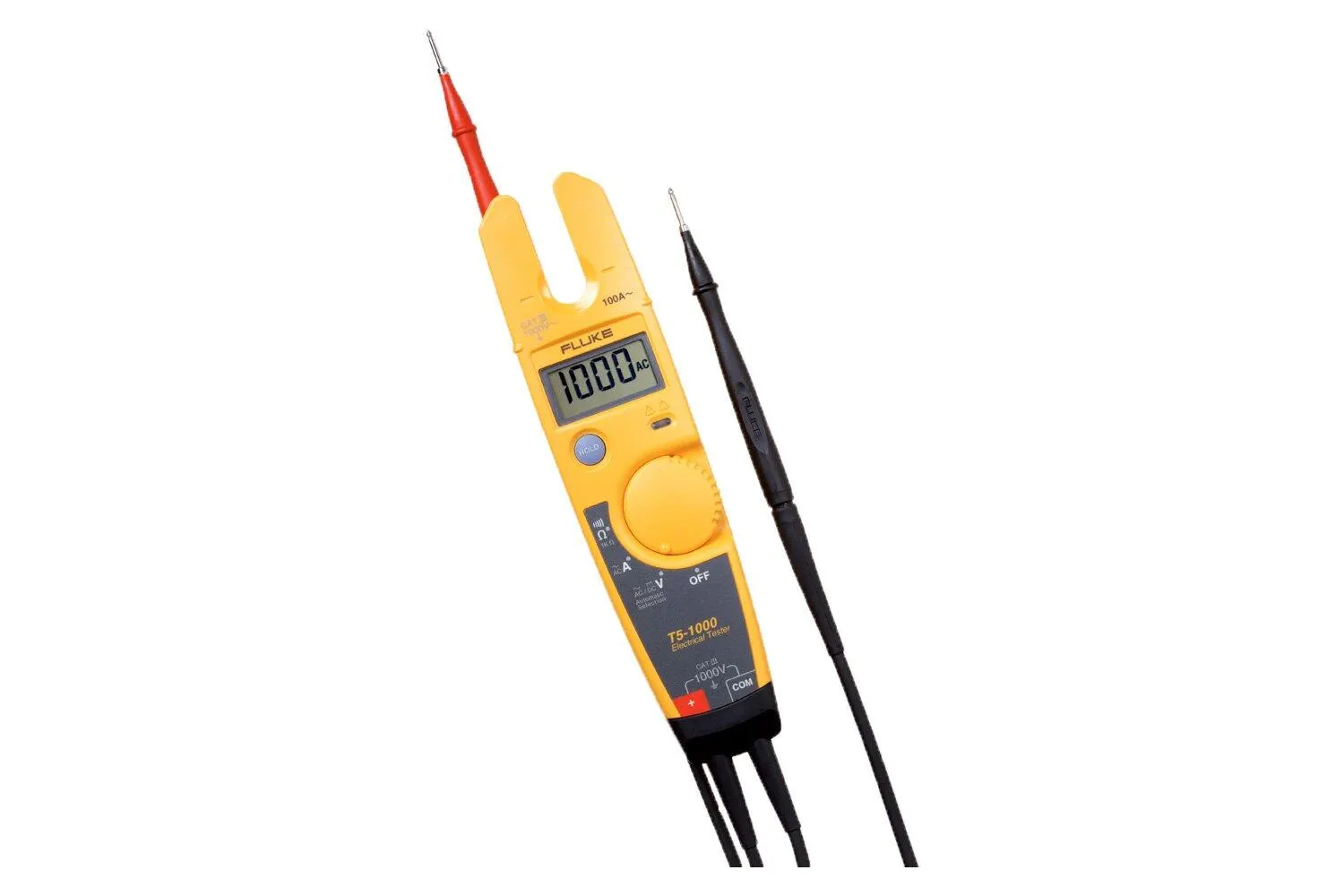

Fluke T5-1000 Voltage, Continuity and Current Tester

Check voltage, continuity and current with Fluke T5-1000 V digital voltmeter. Just select volts, ohms, or current and the tester does the rest!

Manufacturer part number (MPN)

648219

Brand

Fluke

Category

Tools

Jaw opening

12.9 mm (0.5 in)

Max wire size

1/0 THHN Cable

Current range AC rms

0 to 100.0 A

Accuracy AC current (50/60 Hz)

3% ± 3 counts

AC response

Averaging

Voltage range AC/DC

0 to 1000 V

AC

1.5% ± 2 counts

DC

1% ± 1 count

Resistance range

0 to 1000 Ω

Continuity beeper threshold

On at 400 Ω

Volts indicator LED threshold

Guaranteed on by 30 V AC

Operating temperature

-10°C to 50°C

Storage temperature

-30°C to 60°C

Dust/water resistance

Yes

Operating altitude

2000 meters max

Temperature coefficient

0.1 x (specified accuracy)/°C ( 28°C)

Measurement Category

IEC 61010-2-032, IEC61010-2-033: CAT IV 600 V / CAT III 1000 V, 100 A ac

Agency approvals

CSA, TUV

Maximum voltage

1000 V between any terminal and earth ground

Size

30.5 x 51 x 203 mm

Weight

300 g

Warranty

Two-years

Battery life

200 hour zinc chloride, 400 hour alkaline

Battery type

2 x AA

Low battery indicator

Yes

Current sensor opening

12.9 mm

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/basic-testers/fluke-t5-1000
