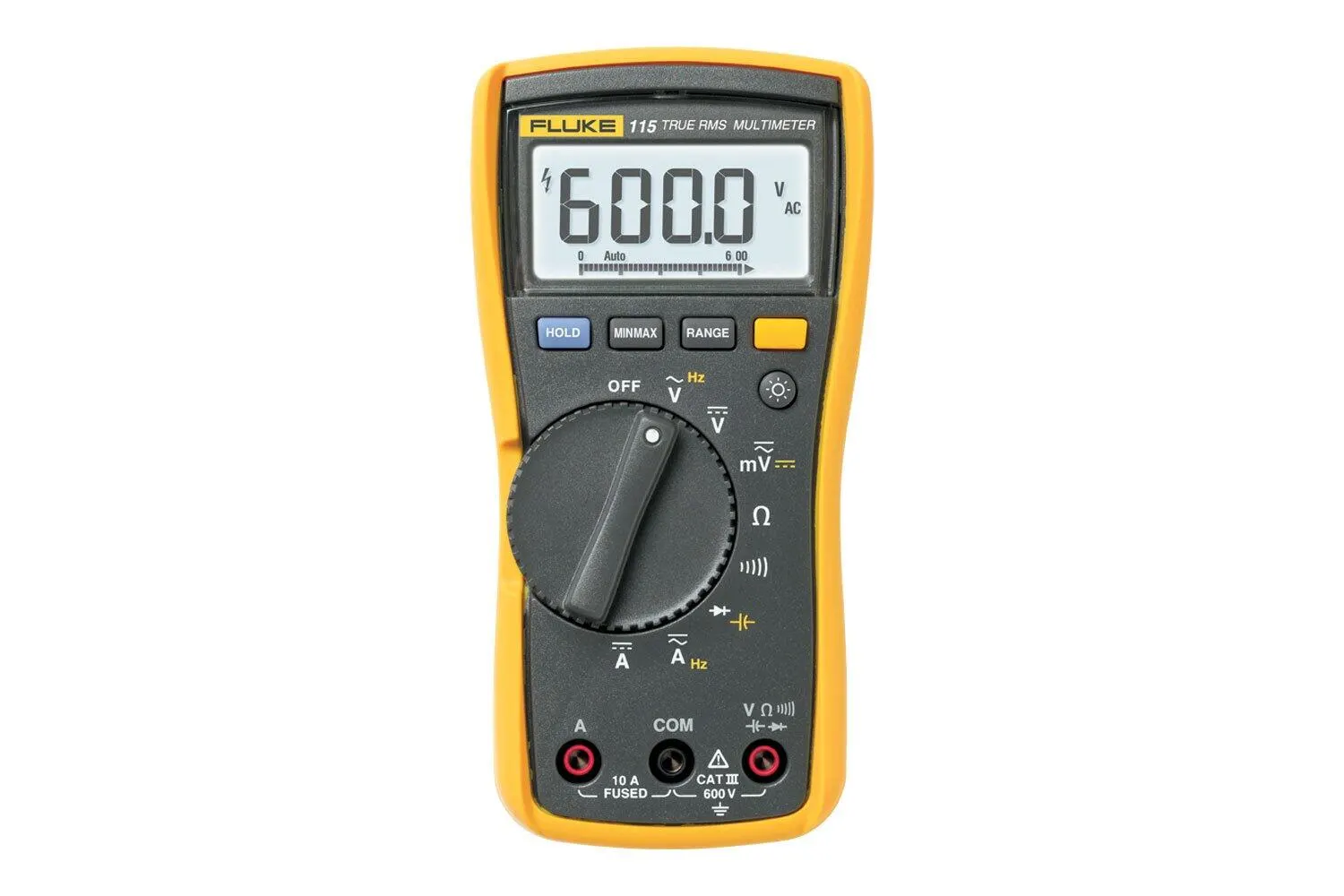

Fluke 115 Field Technicians Digital Multimeter

Get the Fluke 115 True-RMS digital multimeter for all electrical and electronic test requirements. Simple operation, compact design, & easy to use. Buy Now!

Manufacturer part number (MPN)

2538790

Brand

Fluke

Category

Tools

Fluke 115 Field Technicians Digital Multimeter

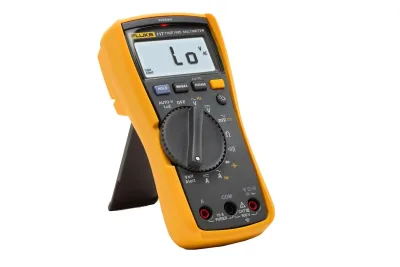

Fluke 117 Electrician's Multimeter

DC millivolts Range/resolution

600.0 mV / 0.1 mV

DC millivolts Accuracy

± ([% of reading] + [counts]): 0.5% + 2

DC volts Range/resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V

DC volts Accuracy

± ([% of reading] + [counts]): 0.5% + 2

AC millivolts1 True RMS Range/resolution

600.0 mV / 0.1 mV

AC millivolts1 True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

AC volts1 True RMS Range/resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V

AC volts1 True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

Continuity Range/resolution

600 Ω / 1 Ω

Continuity Accuracy

Beeper on 250 Ω detects opens or shorts of 500 μs or longer.

Ohms Range/resolution

600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ

Ohms Accuracy

0.9% + 1

Diode test Range/resolution

2.00 V / 0.001 V

Diode test Accuracy

0.9% + 2

Capacitance Range/resolution

1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF

Capacitance Accuracy

1.9% + 2

Lo-Z capacitance Range

1 nF to 500 μF

Lo-Z capacitance Accuracy

10% + 2 typical

AC amps True RMS (45 Hz to 500Hz) Range/resolution

6.000 A / 0.001 A 10.00 A / 0.01 A

AC amps True RMS (45 Hz to 500Hz) Accuracy

1.5% + 3 20 A overload for 30-seconds max

DC amps Range/resolution

6.000 A / 0.001 A 10.00 A / 0.01 A

DC amps Accuracy

1.0% + 3 20 A overload for 30-seconds max

Hz (V or A input)2 Range/resolution

99.99 Hz / 0.01 Hz 999.9 Hz / 0.01 Hz 9.999 kHz / 0.001 kHz 50.00 kHz / 0.01 kHz

Hz (V or A input)2 Accuracy

0.1% + 2

Maximum voltage between any terminal and earth ground

600 V

Safety

IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V

Display

Digital: 6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating temperature

-10℃ to + 50℃

Storage temperature

-40℃ to + 60℃

Battery type

9 volt Alkaline, IEC 6LR61

Battery life

400 hours typical, without backlight

Size

167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

Weight

550 g

Warranty

3 years

HS Code

9030.33
