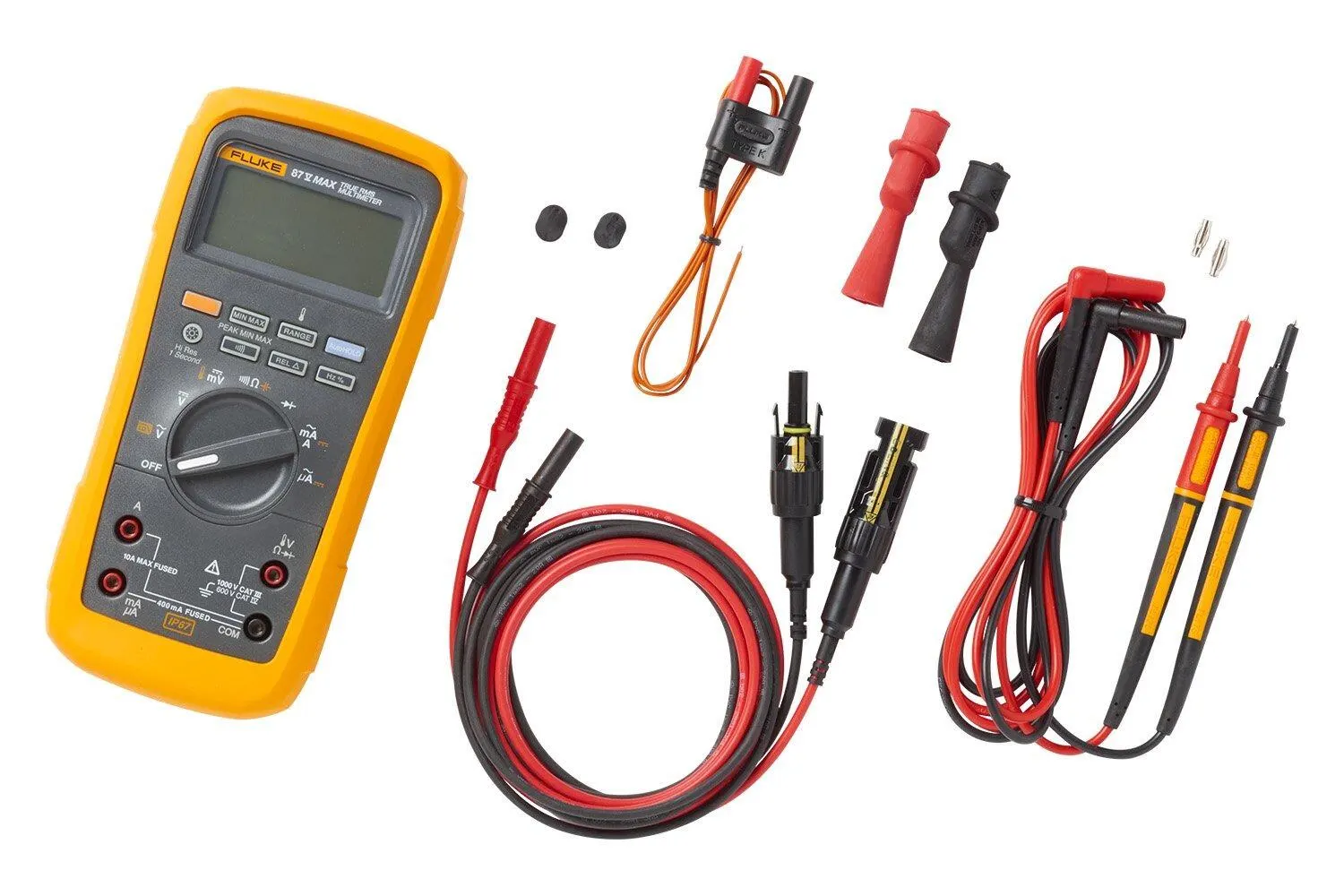

Solar Tools Kit with 87V Max Digital Multimeter and Test Leads

Ideal for PV installations, get the Fluke Solar Tools Kit with 87V Max digital multimeter and PVLEAD1 MC4 Test Leads.

Manufacturer part number (MPN)

5337412

Brand

Fluke

Category

Tools

DC Voltage Range

0.1 mV to 1000 V

DC Voltage Accuracy

±(0.05% + 1)

DC Voltage Maximum resolution

0.1 mV

AC Voltage Range

0.1 mV to 1000 V

AC Voltage Accuracy

±(0.7% + 4) true-rms

AC Voltage AC bandwidth

20 kHz with low pass filter; 3 dB @ 1 kHz

AC Voltage Maximum resolution

0.1 mV

DC Current Range

0.1 μA to 10 A (20 A for 30 seconds maximum)

DC Current Amps accuracy

±(0.2% + 2)

DC Current Maximum resolution

0.1 µA

AC Current Range

0.1 μA to 10 A (20 A for 30 seconds maximum)

AC Current Amps accuracy

±(1.0% + 2) true-rms

AC Current Maximum resolution

0.1 µA

Resistance Range

0.1 Ω to 50 MΩ

Resistance Accuracy

±(0.2% + 1)

Resistance Maximum resolution

0.1 Ω

Capacitance Range

0.01 nF to 9999 μF

Capacitance Accuracy

±(1% + 2)

Capacitance Maximum resolution

0.01 nF

Frequency Range

0.5 Hz to 199.99 kHz

Frequency Accuracy

±(0.005% + 1)

Frequency Maximum resolution

0.01 Hz

Duty cycle Maximum duty cycle

99.9%

Duty cycle Accuracy

±(0.2% per kHz + 0.1%)

Duty cycle Maximum resolution

0.1%

Temperature measurement range

–200.0 °C to 1090 °C –328.0 °F to 1994.0 °F excluding probe

80 BK temperature probe

–40.0 °C to 260 °C, ± 2.2 °C or 2% whichever is greater –40.0 °F to 500 °F, ± 4.0 °F or 2% whichever is greater

Conductance Maximum conductance

60.00 nS

Conductance Accuracy

±(1.0% + 10)

Conductance Maximum resolution

0.01 nS

Diode test Range

2 V

Diode test Resolution

0.001V

Diode test Accuracy

±(1% + 1)

Diagnostics and data storage Peak Min/Max

250 μS

Diagnostics and data storage Min/Max/Avg

Yes

Diagnostics and data storage Reading hold/Auto (Touch) Hold

Yes

Diagnostics and data storage Relative reference

Yes

Display Digital

6000 counts updates 4/second 19,999 counts in high–resolution mode

Display Analog bar graph

32 segments, updates 40/second

Display Backlight

Two level

Low pass filter (VFD measurements)

Yes

Input Alert™

Yes

Safety rating

IEC61010-1: Pollution Degree 2 IEC 61010-2-033: CAT IV 600 V, CAT III 1000 V

Agency approvals

CE, CSA

IP rating

IEC 60529: IP67

Power

Three AA batteries. 800 hours typical, without backlight

Size

6.0 x 10.1 x 21.5 cm (with holster)

Weight

698.5 g (with holster)

Warranty

Limited lifetime

Operating temperature

-15 °C to 55 °C, to -40 °C for 20 minutes when taken from 20 °C

Storage temperature

-40 °C to + 60 °C

Humidity (without condensation)

0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C)

Operating altitude

2000 m

PVLEAD1

PVLEAD3

Length 60”

36”, 12”

HS Code

9030.33
