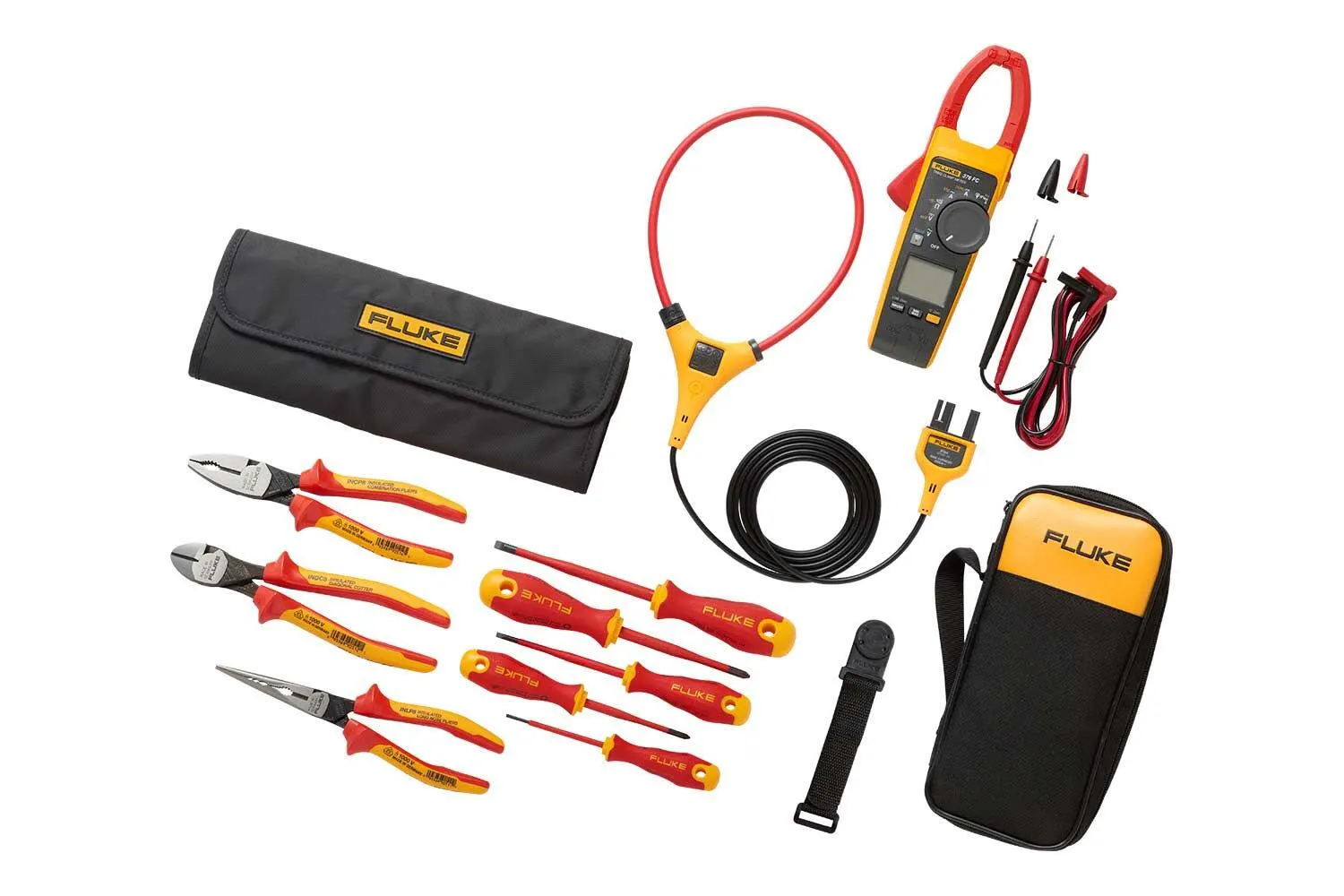

Fluke 376 FC True-RMS Clamp Meter plus insulated hand tools starter kit

Stay safe with the Fluke 1000V insulated tools starter kit with screwdrivers, pliers and cutters combined with Fluke 376 FC True-RMS Clamp Meter. Lifetime warranty.

Manufacturer part number (MPN)

5132939

Brand

Fluke

Category

Tools

Range

999.9 A

Resolution

0.1 A

Accuracy

2% ±5 digits (10 Hz to 100 Hz)

Crest Factor (50 Hz/60 Hz)

3 @ 500 A

Crest Factor (50/60Hz)

3.0 at 1100 A

i2500-10 Flex

i2500-18 Flex

Distance from Optimum 0.5 in (12.7 mm)

1.4 in (35.6 mm)

Distance from Optimum 0.8 in (20.3 mm)

2.0 in (50.8 mm)

Distance from Optimum 1.4 in (35.6 mm)

2.5 in (63.5 mm)

Trigger level

5 Hz to 10 Hz, ≥10 A

Maximum voltage between any terminal and earth ground

1000 V

Batteries

2 AA, NEDA 15A, IEC LR6

Operating temperature

-10 °C to +50 °C

Storage temperature

-40 °C to +60 °C

Operating humidity - non-condensing (< 10°C)

≤90% RH (at 10 °C to 30 °C)

Operating altitude

2000 m

Storage altitude

12,000 m

Size (L x W x H)

249 x 85 x 45 mm

Weight

395 g

Jaw opening

34 mm

Flexible current probe diameter

7.5 mm

Safety

IEC 61010-1, Pollution Degree 2

IP rating

IEC 60529: IP30, non-operating

Radio Frequency Certification FCC ID

T68-FBLE IC:6627A-FBLE

International

IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2

Korea (KCC)

Class A Equipment (Industrial Broadcasting & Communication Equipment)

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Temperature coefficients

Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C

Voltage DC Maximum voltage

1000 V

Voltage DC Accuracy

±(0.05% + 1)

Voltage DC Maximum resolution

10 µV

Voltage AC Maximum voltage

1000 V

Voltage AC Accuracy

±(0.7% + 2) True RMS

Voltage AC AC bandwidth

20 kHz with low pass filter; 3 db @ 1 kHz

Voltage AC Maximum resolution

0.1 mV

Current DC Maximum amps

10 A (20 A for 30 seconds maximum)

Current DC Amps accuracy

±(0.2% + 2)

Current DC Maximum resolution

0.01 µA

Current AC Maximum amps

10 A (20 A for 30 seconds maximum)

Current AC Amps accuracy

±(1.0% + 2) True RMS

Current AC Maximum resolution

0.1 µA

Resistance Maximum resistance

50 MΩ

Resistance Accuracy

±(0.2% + 1)

Resistance Maximum resolution

0.1 Ω

Capacitance Maximum capacitance

9,999 µF

Capacitance Accuracy

±(1% + 2)

Capacitance Maximum resolution

0.01 nF

Frequency Maximum frequency

200 kHz

Frequency Accuracy

±(0.005% + 1)

Frequency Maximum resolution

0.01 Hz

Duty cycle Maximum duty cycle

99.9%

Duty cycle Accuracy

±(0.2% per khz + 0.1%)

Duty cycle Maximum resolution

0.1%

Temperature

–200.0 °C – 1090 °C

80 BK

–40.0 °C – 260 °C

Conductance Maximum conductance

60.00 nS

Conductance Accuracy

±(1.0% + 10)

Conductance Maximum resolution

0.01 nS

Diode Range

3 V

Diode Resolution

1 mV

Diode Accuracy

±(2% + 1)

Duty cycle range Accuracy

Within ±(0.2% per kHz + 0.1%)

Operating

–20 °C to + 55 °C

Storage

–40 °C to + 60 °C

Humidity

0% – 90% (0 °C – 35 °C)

Overvoltage

EN 61010–1 to 1000 V CAT III, 600V CAT IV

Agency

UL, CSA, TÜV, VDE listed

Size

201 x 98 x 52 mm (with holster)

Display Digital

6000 counts updates 4/sec.

Display Analog

32 segments, updates 40/sec

Display Frequency

19,999 counts, updates 3/sec at > 10 Hz

Warranty

Lifetime

Battery Life Alkaline

~400 hours typical, without backlight

Shock

1 Meter drop per IEC 61010–1:2001

Vibration

Per MIL–PRF–28800 for a Class 2 instrument

HS Code

9030.33
