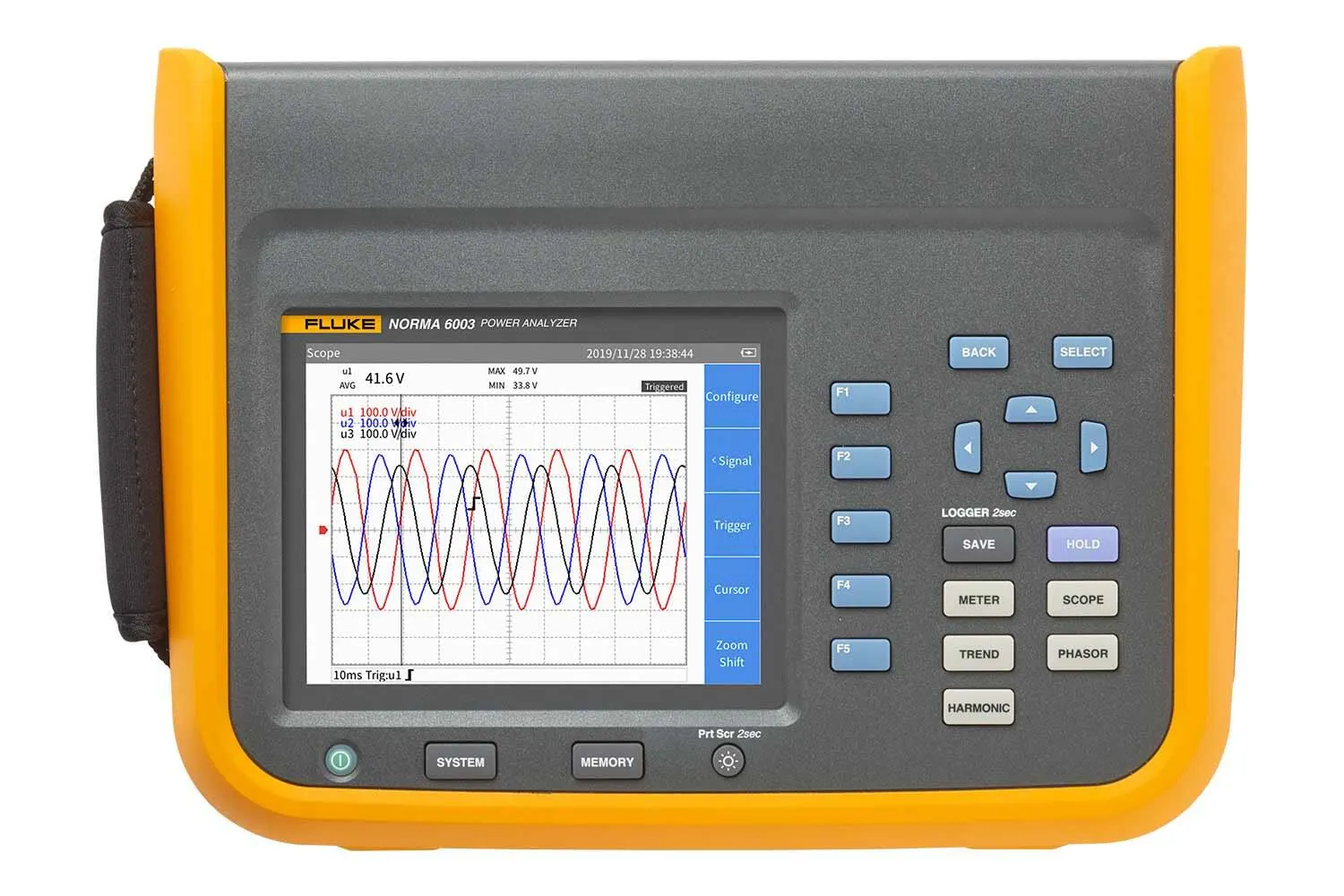

Fluke Norma 6000 Series Portable Power Analyzers

The Fluke Norma 6000 Power Analyzer measures voltage, current, active power, reactive power, apparent power, power factor and harmonics with associated values. Lightweight, 10 hours of battery life.

Manufacturer part number (MPN)

5125211

Brand

Fluke

Category

Tools

Inputs Norma 6003

3 Voltage + 3 Current

Inputs Norma 6004

4 Voltage + 4 Current

Sample rate

200ks/s

Measurement update rate

100ms, 200ms, 500ms, 1s

Dimensions (H * W * L)

298mm x 215m x 96mm

Weight

3.5 kg (7.7 lbs)

Display

5.7 inch, TFT LCD, 640x480

Operating temperature

-10 °C to +50 °C

Storage temperature

-30 °C to +60 °C

Operating humidity

Non-condensing (< 10 °C ) ≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C)

Operating altitude

2000m

Storage altitude

12000m

Ingress protection

IP 50 (Terminals mated) according to IEC 60529:

Battery

BP 291, 10.8V/5000mAh, 54Wh IEC 62133, UN38.3 Operating time: 10 Hours (on battery)

Safety

IEC 61010-1: Pollution Degree 2 IEC 61010-2-030: CAT IV 600V, CAT III 1000 V

EMC

IEC 61326-1: Industrial IEC 61326-2-2

Warranty

1 Year

Communication Interface

USB/RS485

Dual Analyzer Synchronization Mode

Able to extend to 6, 7 or 8 channels (using multiple instruments)

PC Software

Fluke Power Analyzer software

Storage Capacity

32GB

Data trend storage rate

As per display rate

Main Function

Meter, Scope, Harmonic, Phasor, Trend

Range

10 V, 100 V, 1000 V

Crest Factor

CF ≤ 2

Maximum Voltage

10 % overload

Input Impedance

2M Ω/10pF (Typical)

Temperature Coefficient

0.05 * (Spec)/k

Bandwidth

1000V range: 500kHz; 100V range: 200 kHz; 10V range:100 kHz

CMRR

120 dB @ 50/60 Hz

Range 1000 V

100 V

Overload capacity

10 % overload

Measuring Range

0.1 A, 1 A, 10 A

Range 10 A

1 A

DC 0.1 + 0.2

0.1 + 0.5

AC (10Hz to 1kHz) 0.1+0.1

0.1+0.2

Voltage Range

± 10 V dc, 10 % overload

Voltage Channels

2

Accuracy at dc

0.1 % range + 0.1 % reading

Pulse Channels

3

Pulse Logic High Threshold

2 V (Typical)

Pulse Logic Low Threshold

0.8 V (Typical)

Maximum Pulse Frequency

100 kHz

Frequency Accuracy

0.05 % range + 0.05 % reading

Harmonics

100 (50Hz/60Hz)

Calculation method

FFT/Interpolation

HS Code

9030.84
