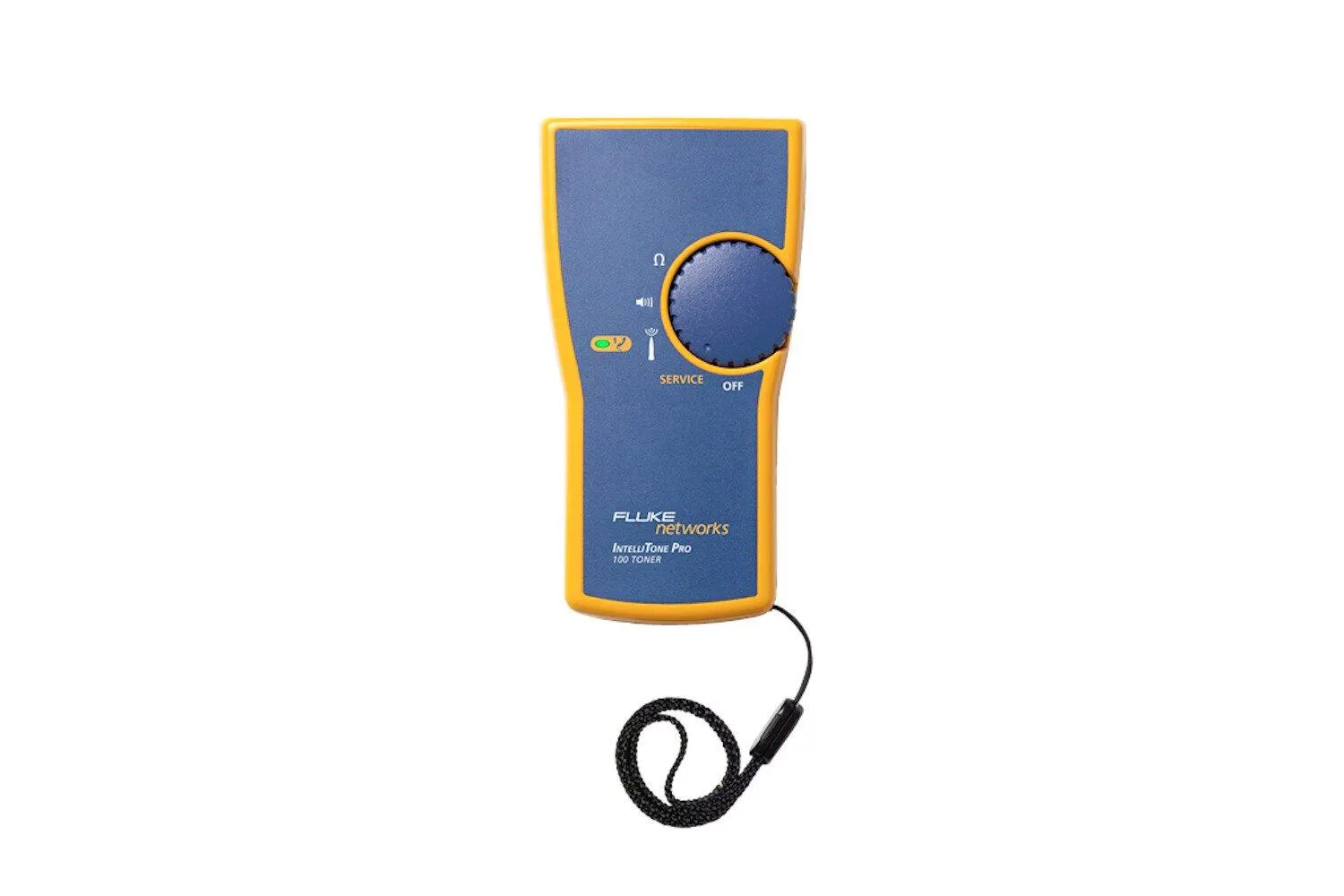

Fluke Networks MT-8200-61-TNR IntelliTone™ Pro 200 Tone Generator

Fluke Networks MT-8200-61-TNR digital and analog tone generator verifies and troubleshoots copper cabling in networks. Supports VDV cables RJ45, RJ11, coaxial, bare wire, banana jacks/test leads.

Manufacturer part number (MPN)

4586079

Brand

Fluke

Category

Tools

Operating temperature

32 °F to 104 °F (0 °C to 40 °C)

Storage temperature

-4 °F to +140°F (-20 °C to °C)

Operating relative humidity (% RH without condensation)

95 % (50 °F to 95 °F; 10 °C to 35 °C) 75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C)

Vibration

Random, 2 g, 5 Hz-500 Hz

Shock

1 m drop test

Safety

EN 61010-1, Category: None

Altitude

3000 m

EMC

EN 61326-1, FCC Part 15 B

Battery type and life

9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical

Applications

Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200.

Dimensions

5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm)

Display

LED

Control

Thumbwheel switch

Toner interface

Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring

Toner frequency

"IntelliTone™ signal: encoded digital signal Analog SmartTone signal: 500 - 1200Hz, 4 songs"

Ouptut power

5 V p-p

Auto power down

Turns off automatically after 2 1/2 hours of inactivity
