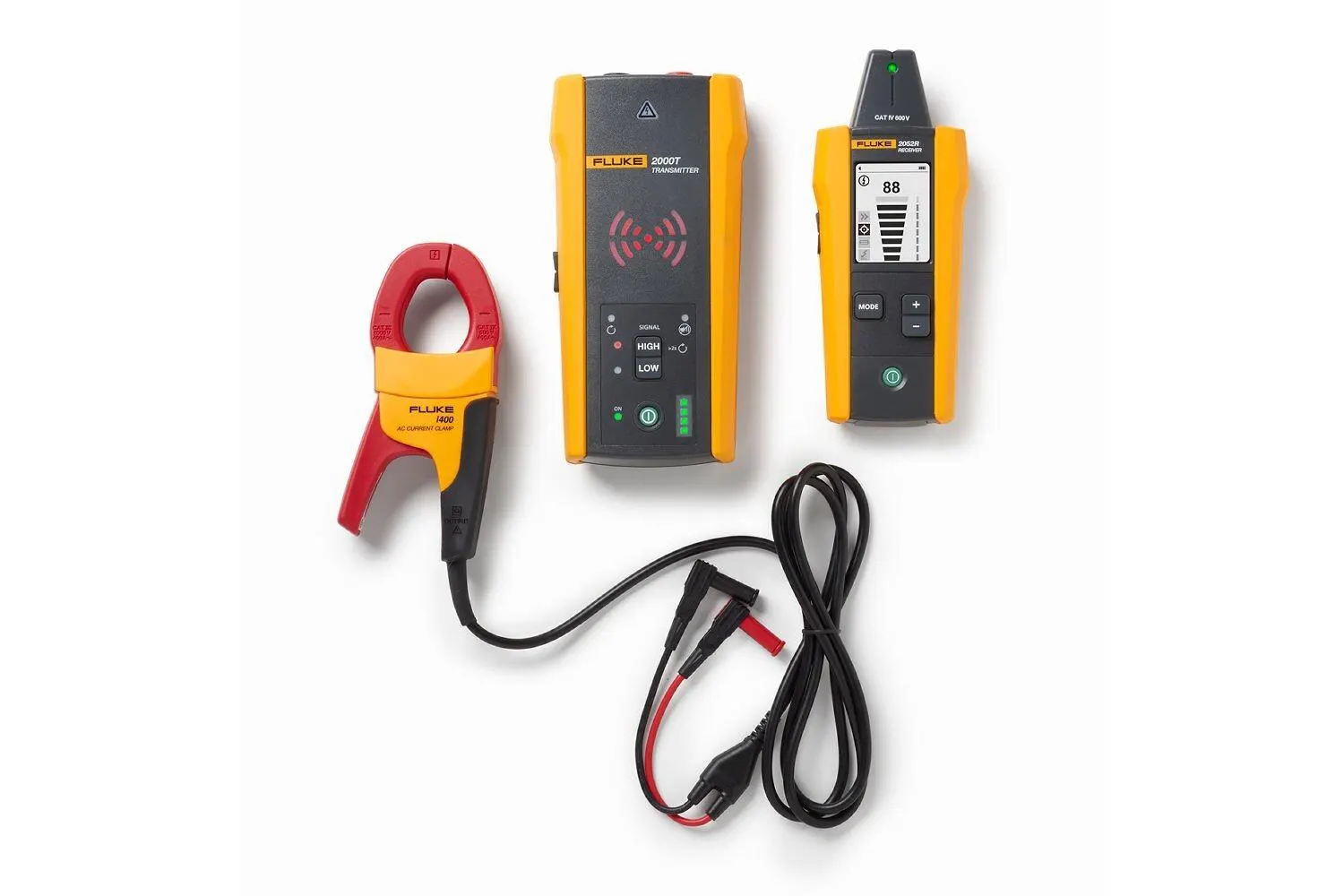

Fluke 2052 Advanced Wire Tracer Kit

The Fluke 2052 Advanced Wire Tracer Kit accurately and safely troubleshoots energized and de-energized wires up to CAT IV 600 V.

Manufacturer part number (MPN)

5353853

Brand

Fluke

Category

Tools

General 2052R Receiver

2000T Transmitter

Numeric, bar graph display and audible beep

LEDs and audible beep

Current output of signal (typical) N/A

Energized circuit: High mode: 60 mA rms Low mode: 30 mA rms De-energized circuit: High mode: 110 mA rms Low mode: 40 mA rms Loop mode with test leads: 160 mA rms Loop mode with i400 AC Current Clamp: 385 mA rms

Display size LCD 63 mm (2.5 in)

LEDs

Display type TFT LCD

LEDs

Display color 16-bit

Operating mode LEDs: red Battery status LEDs: green, yellow, red

Power supply 4 x AA (alkaline)

8 x AA (alkaline)

Power consumption (typical) 110 mA

High/low mode: 70 mA Loop mode with Clamp: 90 mA Consumption without signal transmission: 10 mA

Battery life Approx. 16 h

High/low mode: approx. 25 h Loop mode: approx. 18 h

Fuse N/A

1.6 A, 700 V, fast-acting, Ø 6 x 32 mm, 50 kA interrupt

Approx. 183 x 75 x 43 mm (7.2 x 2.95 x 1.69 in)

Approx. 183 x 93 x 50 mm (7.2 x 3.66 x 1.97 in)

Weight Approx. 0.27 kg (0.6 lb)

Approx. 0.57 kg (1.25 lb)

Mechanical

2000ACC Test Lead Accessory Kit

Includes

2x 1 m test leads (red, black), 1x 7 m test lead (green), 2x test probes (black), 2x alligator clips (red, black), 2x outlet blade adapters (red, black), 2x outlet round adapters (red, black)

Measurement category

CAT IV 600 V (test leads), CAT II 1000 V (test probes), CAT IV 600 V (alligator clips), CAT II 300 V (outlet adapters)

Operating voltage and current

600 V, 10 A max. (red/black leads), 600 V, 10 A max. (green lead), 1000 V, 8 A max. (black probe) 600 V, 10 A max. (alligator clips), 300 V, 10 A max. (outlet adapters)

Operating temperature

0 °C to 50 °C (32 °F to 122 °F)

Operating humidity

10 °C to <30 °C (95 %: 50 °F to <86 °F), 30 °C to <40 °C (75 %: 86 °F to <104 °F), 40 °C to <50 °C (45 %: 104 °F to <122 °F)

Storage temperature and humidity

0 °C to 60 °C (32 °F to 140 °F),

Operating altitude

2000 m (6561 ft)

Pollution degree

2

Water and dust resistance

IP 20

Drop proof

1 m (3.28 ft)

Dimensions

Red/black leads: 1 m (3.28 ft), Green lead: 7 m (22.97 ft), Alligator clips: approx. 95 x 45 x 24 mm (3.74 x 1.77 x 0.94 in), Outlet adapters: 72 x 18 x 18 mm (2.83 x 0.71 x 0.71 in)

Weight

Approx. 0.4 kg (0.88 lb)
