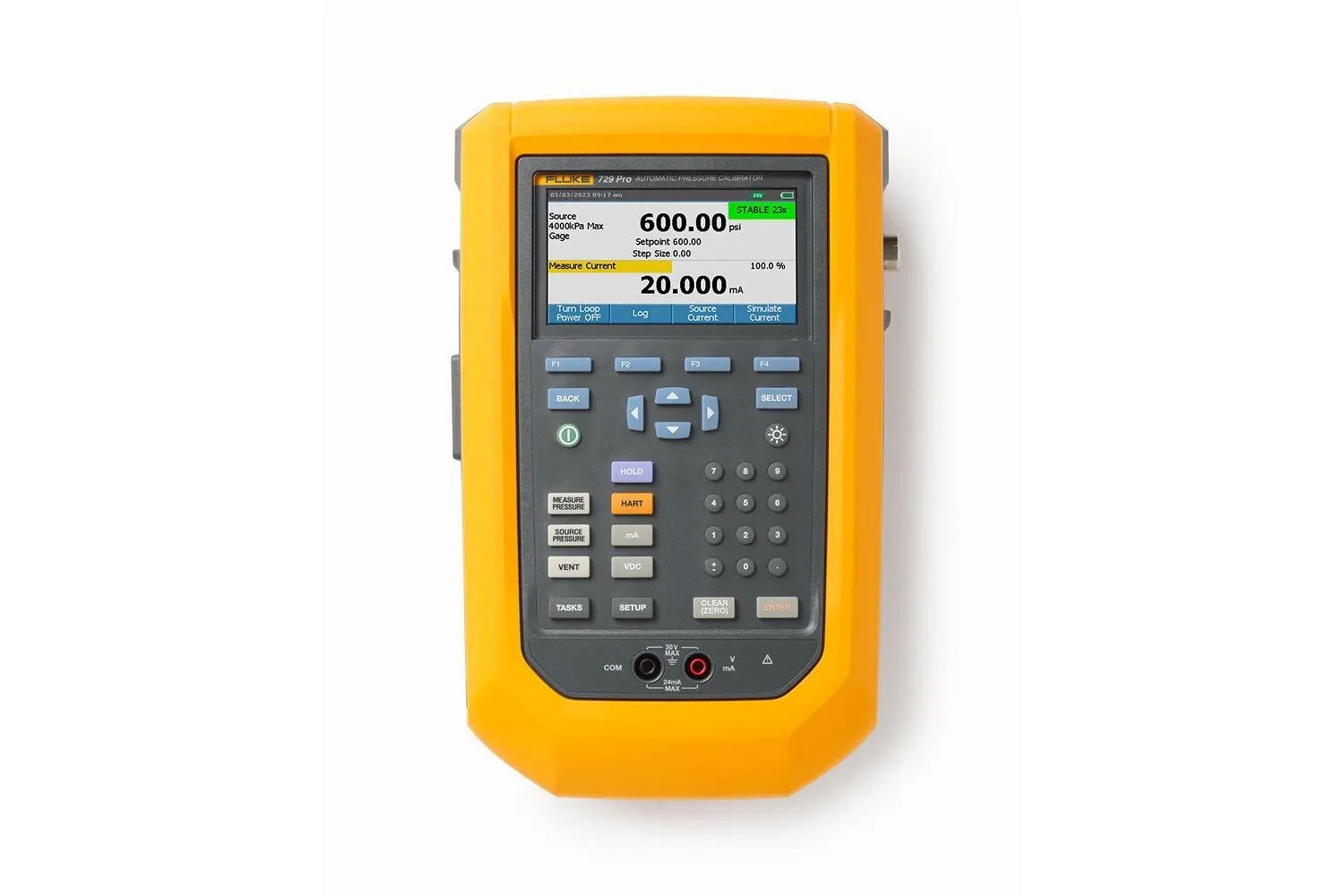

Fluke 729 Pro Automatic Pressure Calibrator

Automatic pressure generation and regulation up to 1000psi, 7Mpa with plug-in replaceable pressure control modules, Fluke 729Pro not only simplifies pressure calibraiton but saves time,reduces errors and improves accuracy

Manufacturer part number (MPN)

5300476

Brand

Fluke

Category

Tools

Key parameters 729 Pro 7M

729 Pro 4M

-13 to 1000 psi, -90 to 7000 kPa, -0.90 to 70 bar

-13 to 600 psi, -90 to 4000 kPa, -0.90 to 40 bar

Pressure type

Gauge/absolute (Depends on the type of internal or external pressure module

Pressure accuracy and Control stability

0.02% of FS, 0.005% of FS

Replaceable pressure measurement modules Yes, 6 modules

Yes, 4 modules

mA sourcing/measurement

Yes

Voltage measurement

Yes

Loop power

24 V dc

Pressure switch testing

Yes

Pressure leakage testing

Yes

HART Communication

Yes, basic commands supported

Autostep / auto ramp

Yes (with customizable speed, mode and style)

Battery

Rechargeable lithium battery with charge indication (charged in the instrument or separately)

Language

English

mA measure, source and simulate

0 mA to 24 mA

Volts dc measurement

0 V dc to 30 V dc

mA dc source, simulate and measure

1 μA

Voltage dc measurement

1 mV

Accuracy

0.01% FS ±2 LSD all ranges (at 23 °C ±5 °C)

Stability

20 ppm FS /°C (-10 °C to +18 °C and 28 °C to 50 °C)

mA simulation working voltage

12 V dc to 30 V dc

Loop compliance voltage

24 V dc @ 20 mA

Temperature measurement , 100 Ω Pt(385) RTD

-50 °C to 150 °C

Temperature resolution

0.01 °C

Temperature accuracy

±0.1 °C ±0.25 °C combined uncertainty when using 720 RTD probe (optional accessory)

Drive capability (mA source)

1200 Ω (without HART resistor), 950 Ω (with internal HART resistor)

Dimension (HxWxL)

290 x 215 x100 mm, (4.3 x 4.4 x 9.4 in)

Weight

4.9 kg, (10.8 lbs)

Operating temperature

-10 °C to 50 °C

Pressure control

0 °C to 50 °C

Battery charging

0 °C to 40 °C

Storage temperature

-20 °C to 60 °C

Operating altitude

<3000 m

Storage altitude

<13000 m

Operating humidity

Non-condensing (<10°C) ≤90 % RH (10 °C to 30 °C) ≤75 % RH (30 °C to 40 °C) ≤45 % RH (40 °C to 50 °C)

Pressure module Pressure type

Range

FLK-PMM-200K Gauge

(-15 to 30) psi

FLK-PMM-200K (-100 to 200) kPa

0.001 kPa

FLK-PMM-200K (-1 to 2) bar

0.00001 bar

FLK-PMM-200KA Absolute

(0 to 30) psi

FLK-PMM-200KA (0 to 200) kPa

0.001 kPa

FLK-PMM-200KA (0 to 2) bar

0.00001 bar

FLK-PMM-2000K Gauge

(-14 to 300) psi

FLK-PMM-2000K (-95 to 2000) kPa

0.01 kPa

FLK-PMM-2000K (-0.95 to 20) bar

0.0001 bar

FLK-PMM-4000K Gauge

(-14 to 600) psi

FLK-PMM-4000K (-95 to 4000) kPa

0.01 kPa

FLK-PMM-4000K (-0.95 to 40) bar

0.0001 ba

FLK-PMM-7000K Gauge

(-14 to 1000) psi

FLK-PMM-7000K (-95 to 7000) kPa

0.01 kPa

FLK-PMM-7000K (-0.95 to 70) bar

0.0001 ba

FLK-PMM-7000KA Absolute

(0 to 1000) psi

FLK-PMM-7000KA (0 to 7000) kPa

0.01 kPa

FLK-PMM-7000KA (0 to 70) bar

0.0001 ba

HS Code

9031.80

• OEM-URL https://www.fluke.com/en-us/product/calibration-tools/pressure-calibrators/729pro
