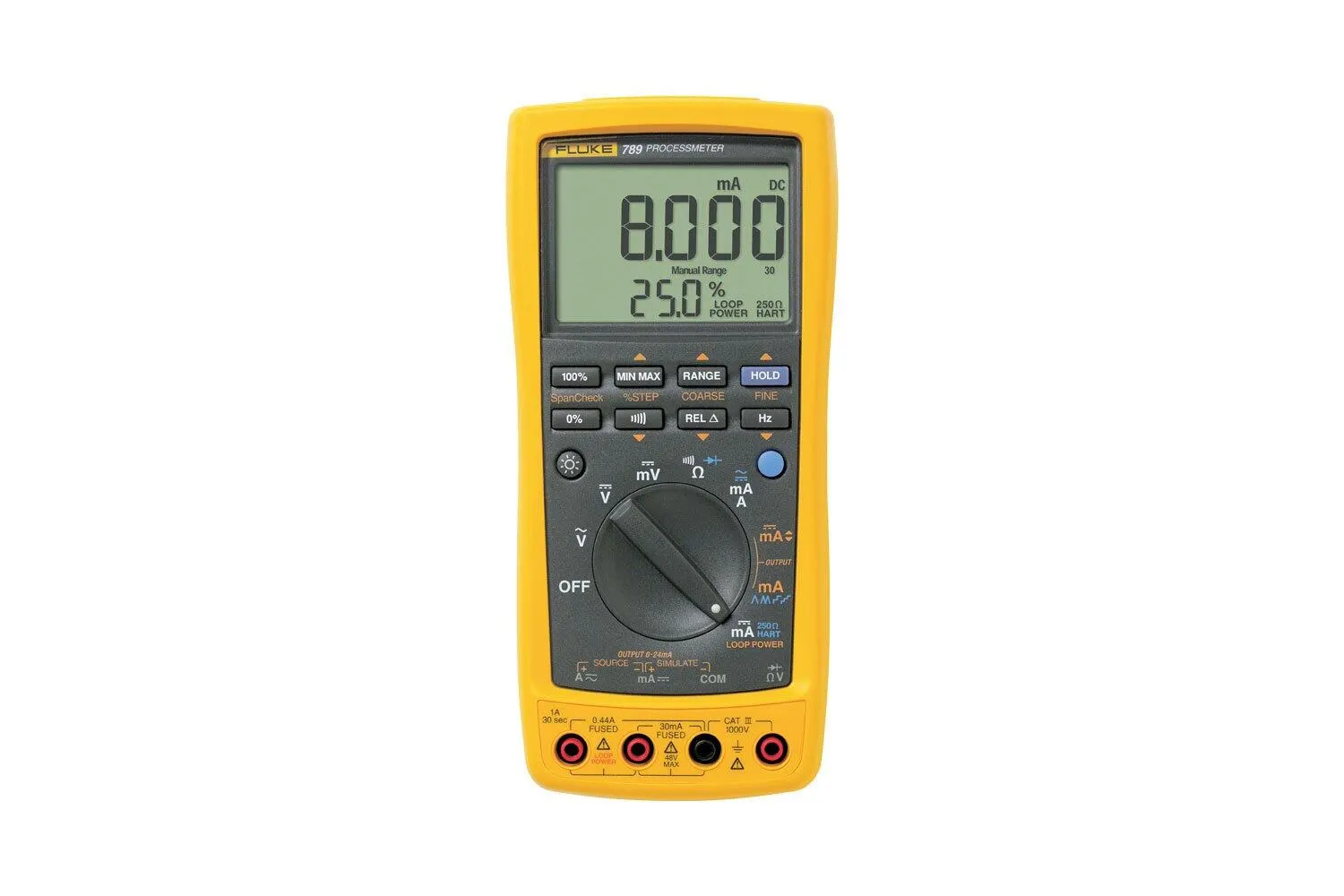

Fluke 789 ProcessMeter™

Fluke 789 ProcessMeter is wireless via Fluke Connect & combines a DMM & loop calibrator. Large, bright dual display. Get specs and buy official Fluke here.

Manufacturer part number (MPN)

1633984

Brand

Fluke

Category

Tools

DC measurement Range

0-1 A DC

DC measurement Resolution

1 mA

DC measurement Accuracy

0.2% + 2 LSD

AC measurement Range

0-1 A AC

AC measurement Resolution

1 mA

AC measurement Accuracy (25 Hz to 2 kHz)

+/- 1% +2 LSD

Current sourcing Range

0-20 mA or 4-20 mA

Current sourcing Resolution

0.001 mA

Current sourcing Accuracy

0.05% of span

Current sourcing Drive capability

24 V Compliance or 1200 Ω @ 20 mA

Continuity

Beeps for resistance < 100 Ω

Voltage measurement Range

0-1000 V AC (true-rms) or DC

Voltage measurement Resolution

0.1 mV to 1.0 V

Voltage measurement Accuracy

0.1% Rdg + 1 LSD (VDC)

Resistance measurement

to 40 MΩ, 0.2% + 1 LSD

Diode test

2.0 V shows diode voltage drop

Display current and % of span

Yes

Auto Step, Auto Ramp

Yes

Operating temperature

-20°C to 55°C

Storage temperature

-40°C to 60°C

Humidity (without condensation)

95% up to 30°C 75% up to 40°C 45% up to 50°C 35% up to 55°C

Temperature coefficient

0.05 x (specified accuracy) per °C (for temperatures 28°C)

Electrical safety

Designed in accordance with IEC 61010-1: Pollution Degree 2

Overvoltage category

IEC 61010-2-033: CAT IV 600 V / CAT III 1000 V

Maximum voltage

1,000 V

Size (H x W x L)

50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)

Weight

610 g (1.6 lbs)

Batteries

4 AA alkaline batteries

Warranty

3 years

Battery life

140 hours typical (measurement), 10 hours typical (sourcing 20 mA)

Shock and vibration

Random, 2 g, 5-500 Hz 1 meter drop test
