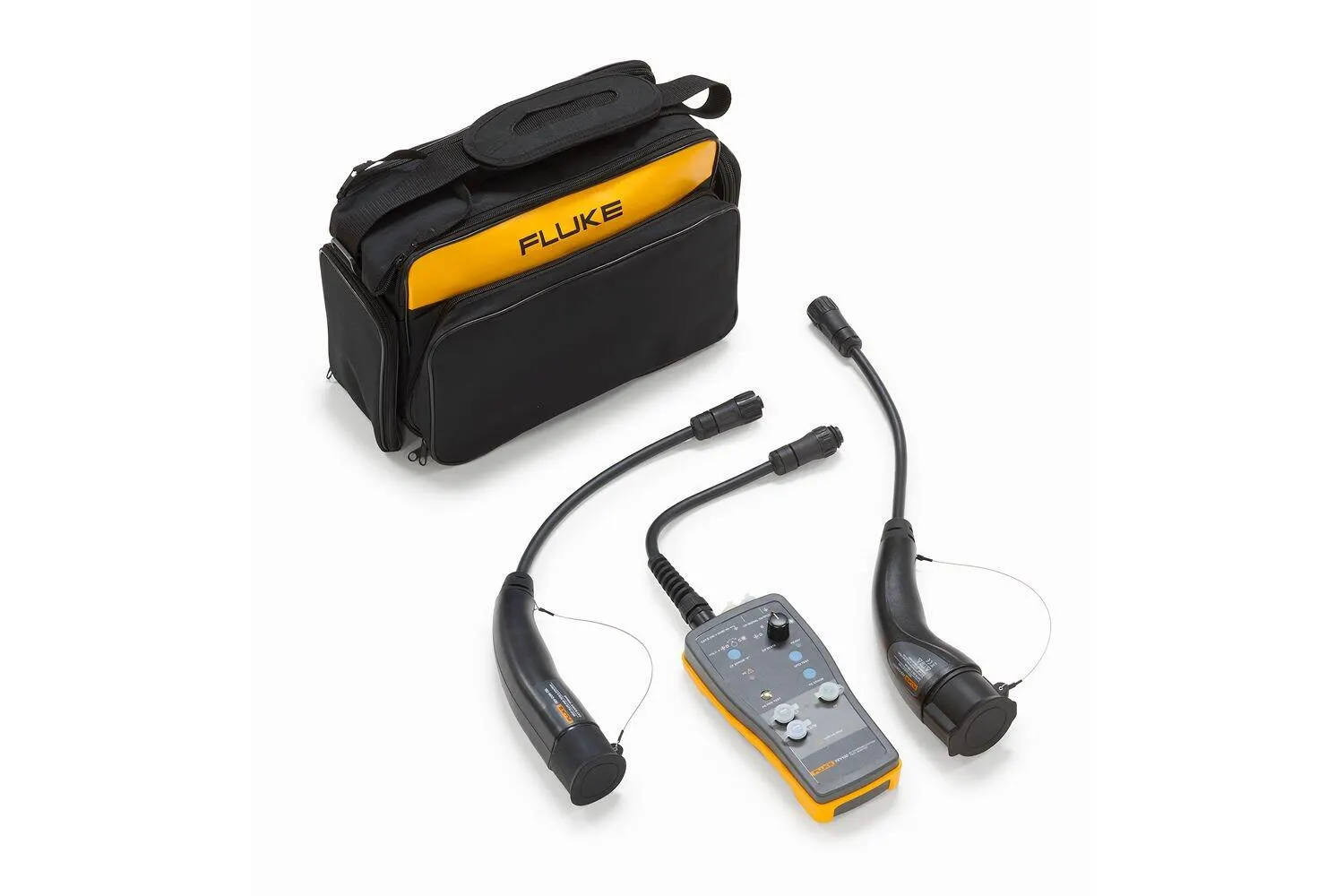

eMobility Tools Kit: FEV100 Test Adapter and Connector for Tesla™ Station

Ideal for EVSE installation and O&M technicians, the Fluke eMobility Tools Kit includes the FEV100 test adapter and connector for Tesla™ station.

Manufacturer part number (MPN)

5348051

Brand

Fluke

Category

Tools

Input voltage

UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 208 V, 60 Hz (three-phase system) or UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 240 V, 60 Hz (single-phase system), ±10% voltage fluctuations from nominal

EV connector

SAE J1772 socket (type 1, 5P single-phase) Connector for Tesla™ station

Internal power consumption

2 W max.

Operating temperature

-4 °F to 104 °F (-20 °C to 40 °C)

Storage temperature

-4 °F to 122 °F (-20 °C to 50 °C)

Operating humidity range

10 % to 85 % relative humidity non-condensing

Storage relative humidity

0 % to 85 % non-condensing

Operating altitude

6561 ft (2000 m) max.

Dimensions (H × W × D)

Approx. 8.66 x 4.33 x 1.77 in (220 x 110 × 45 mm) without cable assembly

Weight

Approx. 4.4 lb (2 kg)

Safety standards

IEC 61010-1, Pollution Degree 2

Measurement category

CAT II 250 V

IP protection class

IP54

International

IEC 61326-1: Basic Electromagnetic Environment

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

CP States

A, B, C, D

CP Error “E”

On/off

PE Error

On/off

GFCI Test

Yes, test resistor of 2 kΩ connected between L1 and PE, time limitation 40 ms

PE Pre-Test (typical)

Visible indication >30 V on PE conductor

Measuring terminals

Max. 250 V 50/60 Hz, CAT II 250 V

CP signal output terminals

Approx. ±12 V (under normal conditions), in case of wrong wiring or error of the charging station these terminals can be hazardous ≥ max. 250 V against PE
