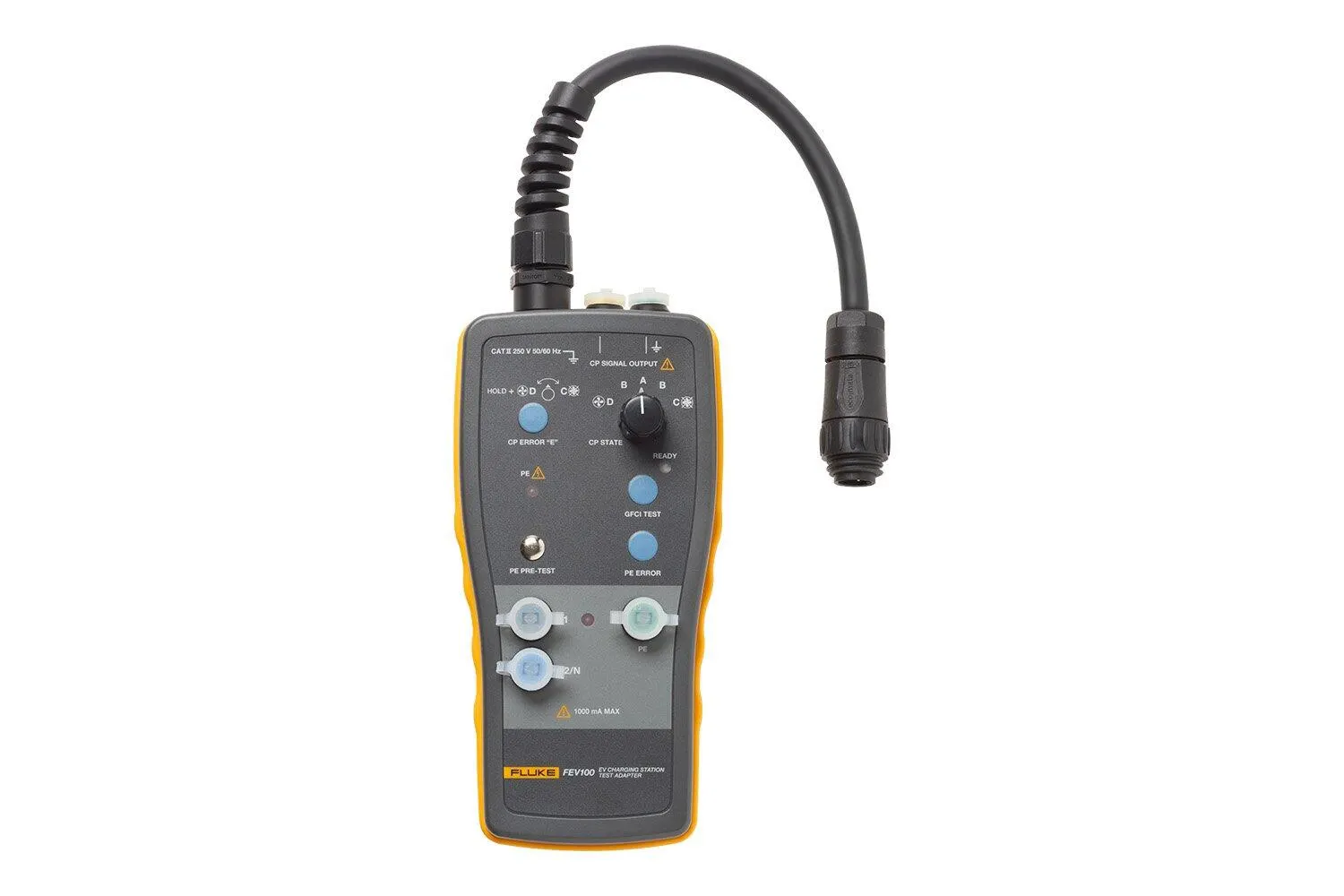

Fluke FEV100 Electric Vehicle Charging Station EVSE Test Adapter

Fluke FEV100 EVSE Adapter for Electric Vehicle Charger Testing is essential electrical safety test equipment for EVSE systems from installation electric vehicle charging equipment to troubleshooting.

Manufacturer part number (MPN)

5258790

Brand

Fluke

Category

Tools

Input voltage

UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 208 V, 60 Hz (three-phase system) or UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 240 V, 60 Hz (single-phase system), ±10% voltage fluctuations from nominal

EV connector (EVC-13)

SAE J1772 socket, 16 A (type 1, 5P single-phase)

Internal power consumption

2 W max.

Operating temperature

-4 °F to 104 °F (-20 °C to 40 °C)

Storage temperature

-4 °F to 122 °F (-20 °C to 50 °C)

Operating humidity range

10 % to 85 % relative humidity non-condensing

Storage relative humidity

0 % to 85 % non-condensing

Operating altitude

6561 ft (2000 m) max.

Dimensions (H × W × D)

Approx. 8.66 x 4.33 x 1.77 in (220 x 110 × 45 mm) without cable assembly

Weight

Approx. 4.4 lb (2 kg)

Safety standards

IEC 61010-1, Pollution Degree 2 IEC 61010-2-030

Measurement category

CAT II 250 V

IP protection class

IP54

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

CP States

A, B, C, D

CP Error “E”

On/off

PE Error

On/off

GFCI Test

Yes, test resistor of 2 kΩ connected between L1 and PE, time limitation 40 ms

PE Pre-Test (typical)

Visible indication >30 V on PE conductor

Measuring terminals L1, L2/N, PE

Max. 250 V 50/60 Hz, CAT II 250 V

CP signal output terminals

Approx. ±12 V (under normal conditions), in case of wrong wiring or error of the charging station these terminals can be hazardous ≥ max. 250 V against PE

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/installation-testers/fev100
