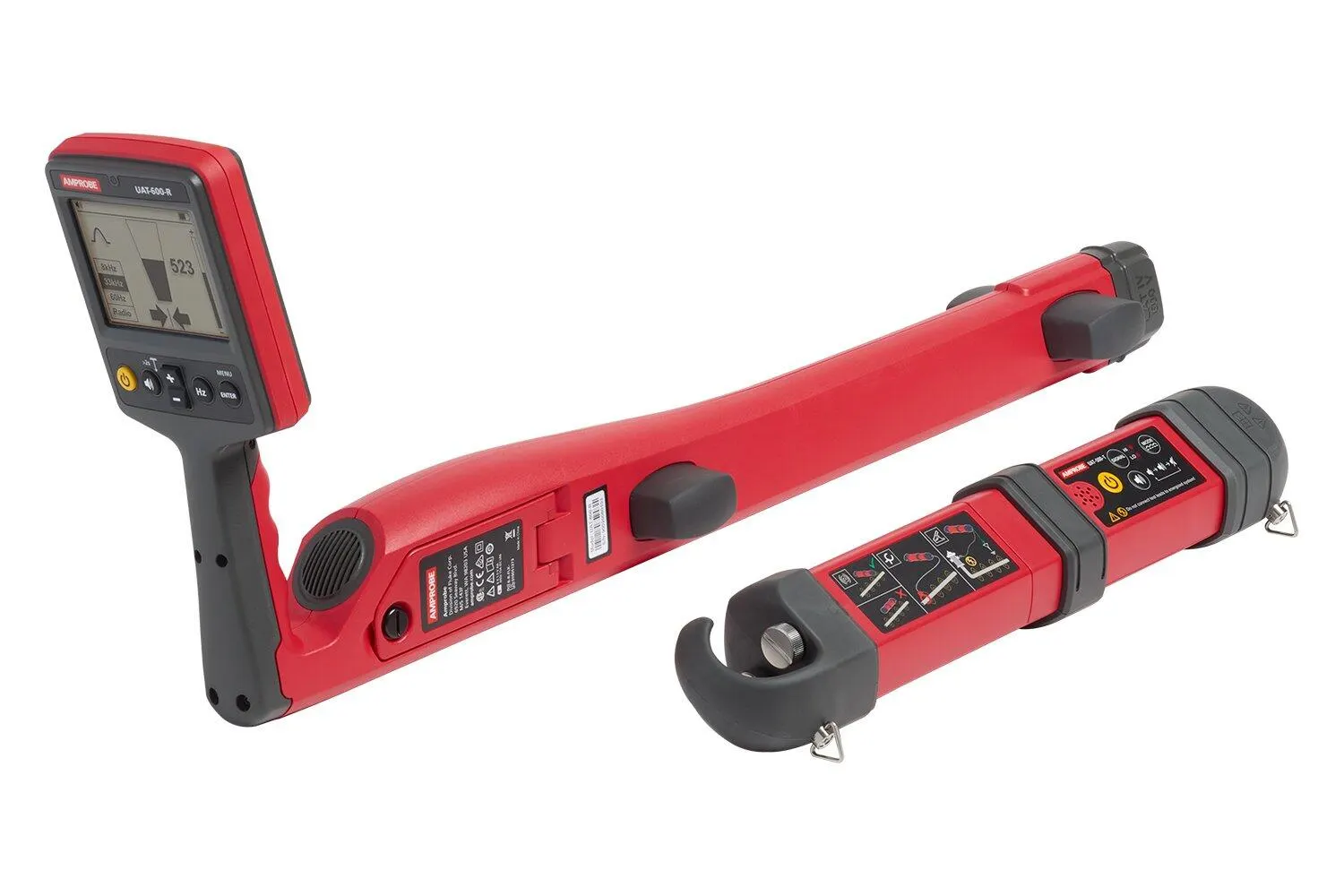

Amprobe UAT-505 Underground Utilities Locator Kit

Locate underground metal pipes, wires and cables. The UAT-505 Underground Utilities Locator Kit comes with a transmitter, receiver, test lead kit and batteries.

Manufacturer part number (MPN)

5258663

Brand

Fluke

Category

Tools

Operating voltage

De-energized circuit only for Direct Connection Mode

Transmitting frequency

33 kHz

Tracing modes

De-energized: - Induction Mode - Direct Connection Mode - Clamp Mode

Transmitting mode power output

Max. 1 watt

Output voltage

Max. 35 V rms

Output current

Max. 100 mA rms

Visual signal indication

Two LEDs indicating LO and HI signal

Audio signal indication

Continuous Signal Mode: Continuous audio tone Pulse Signal Mode: Fast pulsed audio tone

Compatible receiver

UAT-600-R Receiver

Compatible accessories

SC-600 Signal Clamp TL-UAT-500 Test lead set

Operating temperature and humidity

'-4 °F to 122 °F (-20 °C to 50 °C), ≤ 80% RH

Storage temperature and humidity

'-40 °F to 140 °F (-40 °C to 60 °C), ≤ 80% RH

Operating altitude

< 6561 ft (< 2000 m)

Pollution degree

2

IP-rating

IP54

Power supply

Four (4) 1.5 V D cell alkaline batteries

Battery life

Approx. 12 hours at 70 °F (21 °C) (Typical)

Low battery indication

Both LO and HI LEDs blink every 1.5 seconds and audio sound pulses every 1.5 seconds

Safety compliance

IEC 61010-1, CSA/UL 61010-1, IEC 61010-031, CSA/UL 61010-031 (test leads)

Size (H x W x L)

Approx. 18.1 x 3.5 x 2.6 in (460 x 90 x 65 mm)

Weight

Approx. 3.9 lb (1.77 kg) (batteries installed)

Locating modes

Peak and Null

Sensitivity adjustment (gain control)

Yes

Depth measurement

Up to 6 m (20 ft)

Depth measurement accuracy

4 in (0.1 m) to 10 ft (3m): ± 3 % 10 ft (3 m) to 20 ft (6 m): ± 5 %

Sensitivity at 1 m (typical)

Power: 2 mA Radio: 20 μA 8 kHz: 5 μA 33 kHz: 5 μA

Display backlight

Automatic

Audio indication

Increasing closer to the signal

Compatible transmitter

UAT-600-T Transmitter

Display

4.3 in (109 mm), 320 x 240 BW outdoor LC-Display with auto backlight

Update rate

Instantaneous

Drop proof

3.28 ft (1 m)

Auto power off

15 minutes idle Will auto turn off after 15 min of no button pressing

Measurement Category

CAT IV 600 V

Operating voltage and current

50 V max, 1 A

Leads length

11.5 ft (3.5 m)

SC-600 Signal Clamp

Not included, optional accessory

Operating voltage & current

0 to 600 V, 100 A max.

Operating frequency

33 kHz (32,768 Hz) and 8 kHz (8,192 Hz)

Signal voltage output (nominal)

23 V rms at 8 kHz 30 V rms at 33 kHz

• OEM-URL https://www.fluke.com/en-us/product/building-infrastructure/wire-tracers/505-utilities-locator-kit
