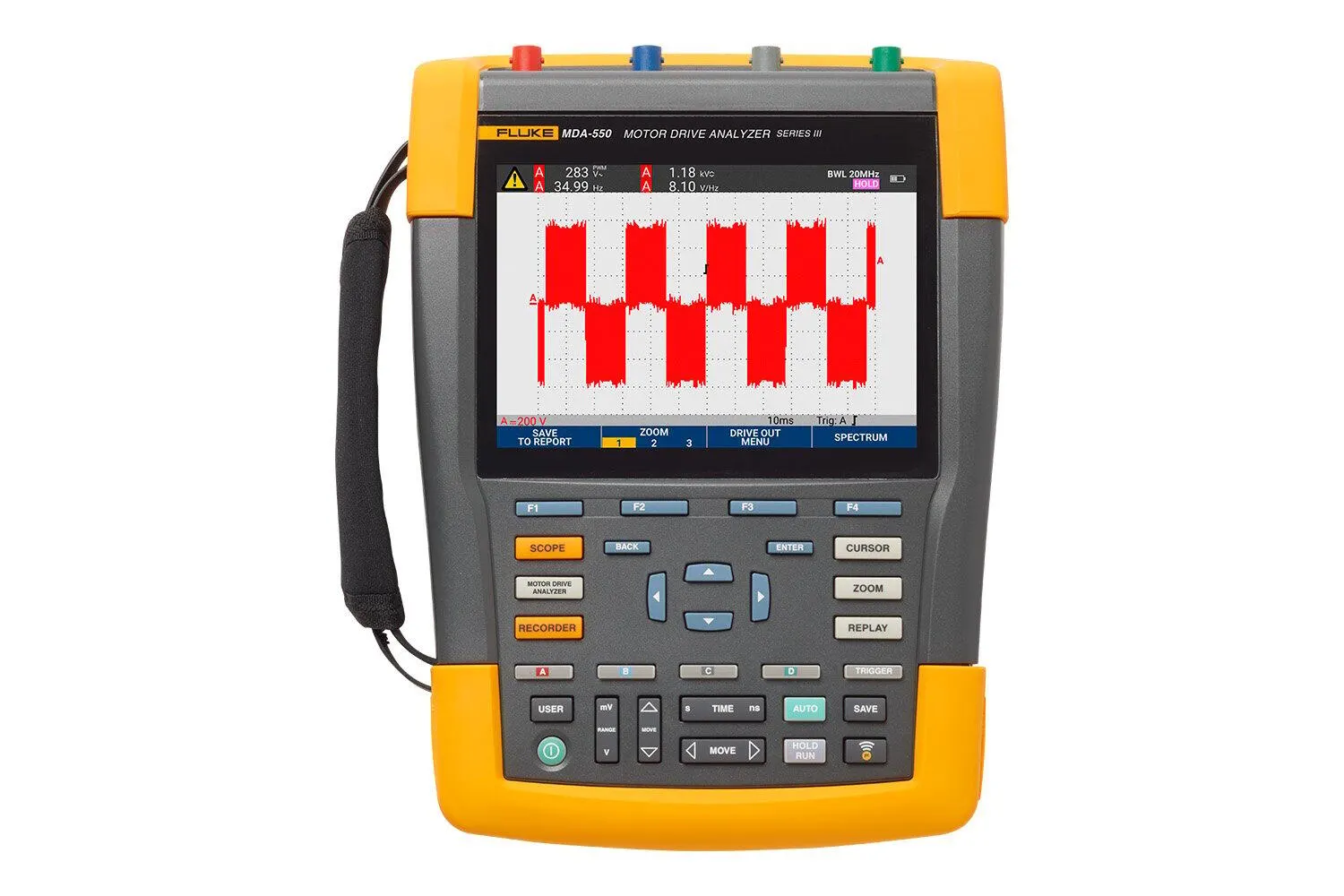

Fluke MDA-550 Series III Motor Drive Analyzer

The Fluke MDA 550 III Motor Drive Analyzer simplifies complex motor drive troubleshooting. Guided test setups and automated drive measurements provide reliable, repeatable test results.

Manufacturer part number (MPN)

5282560

Brand

Fluke

Category

Tools

Measurement Function

Specification

Full scale reading

999 counts

Accuracy at 4 s to 10 us/div

± (1.5 % + 6 counts)

DC to 60 Hz

± (1.5 % + 10 counts)

60 Hz to 20 kHz

± (2.5 % + 15 counts)

20 kHz to 1 MHz

± (5 % + 20 counts)

1 MHz to 25 MHz

± (10 % + 20 counts)

Purpose

To measure on pulse width modulated signals, like motor drive inverter outputs

Principle

Readings show the effective voltage based on the average value of samples over a whole number of periods of the fundamental frequency

Accuracy

As Vac+dc for sinewave signals

Modes

Max peak, min peak, or pk-to-pk

Max peak, min peak

± 0.2 division

Pk-to-pk

± 0.4 division

Ranges

Same as V ac, Vac+dc or V peak

Scale Factors

0.1 mV/A, 1 mV/A, 10 mV/A, 20 mV/A, 50mV/A, 100 mV/A, 200 mV/A, 400 mV/A

Range

1.000 Hz to 500 MHz

Readings

Voltage difference (dV), time difference (dt), voltage vs time difference (dV/dt), overshoot

Harmonics

DC to 51st

Spectrum ranges

1…9 kHz, 9-150 kHz (20 MHz filter on), up to 500 MHz (voltage modulation)

Events / second

Indicative percentage based on rise and fall time (Impulse discharges) measurements

Number of screens

Typical 50 screens can be saved in reports (depends on compression ratio)

Transfer to PC

Using 32 GB or smaller 2 GB USB stick or mini-USB to USB cable or WiFi link and FlukeView™ 2 for ScopeMeter®

Voltage Probe

1:1, 10:1, 100:1, 1000:1, 20:1, 200:1

Current Clamp

0.1 mV/A, 1 mV/A, 10 mV/A, 20 mV/A, 50 mV/A, 100 mV/A, 200 mV/A, 400 mV/A

Shaft Voltage Probe

1:1, 10:1, 100:1

General

IEC 61010-1: Pollution Degree 2

Measurement

Measurement IEC 61010-2-030: CAT IV 600 V / CAT III 1000 V

Maximum voltage between any Terminal and Earth Ground

1000 V

Max. input voltages

Via VPS410-II or VPS421 1000 V CAT III / 600 V CAT IV

BNC Input

A, B, C, D directly 300 V CAT IV

Working voltage between probe tip and probe reference lead

VPS410-II: 1000 V VPS421: 2000 V
