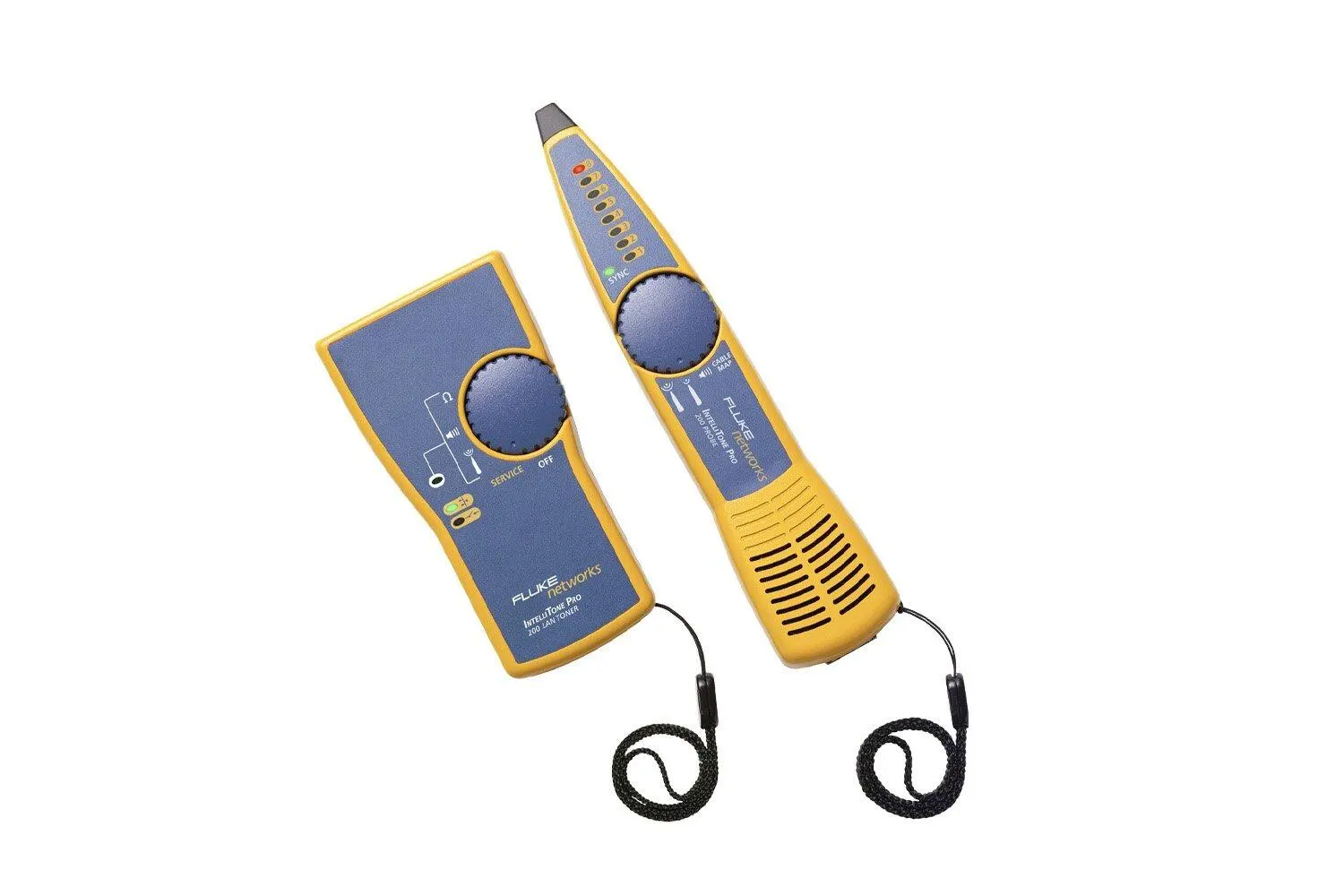

Fluke Networks MT-8200-60-KIT IntelliTone™ Pro 200 Toner and Probe Kit

Fluke Networks MT-8200-60 Kit is the first network cable toner and probe to offer digital and analog signaling all in one network toner and probe.

Manufacturer part number (MPN)

4586068

Brand

Fluke

Category

Tools

Operating temperature

32 °F to 104 °F (0 °C to 40 °C)

Storage temperature

-4 °F to +140°F (-20 °C to °C)

Operating relative humidity (% RH without condensation)

95 % (50 °F to 95 °F; 10 °C to 35 °C) 75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C)

Vibration

Random, 2 g, 5 Hz-500 Hz

Shock

1 m drop test

Safety

EN 61010-1, Category: None

Altitude

3000 m

EMC

EN 61326-1, FCC Part 15 B

Battery type and life

9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical

Applications

Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200.

Dimensions

5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm)

Display

LED

Control

Thumbwheel switch

Toner interface

Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring

Toner frequency

IntelliTone™ signal: encoded digital signal Analog SmartTone signal: 500 - 1200Hz, 4 songs

Ouptut power

5 V p-p

Auto power down

Turns off automatically after 2 1/2 hours of inactivity

Audio

IntelliTone: Microprocessor controlled audio files Analog: Detected toner signal

Tone detection

Detects IntelliTone™ digital signal for Locate, Isolate, and Cable Map Detects analog SmartTone signal (500-1200Hz) and other analog toners.
