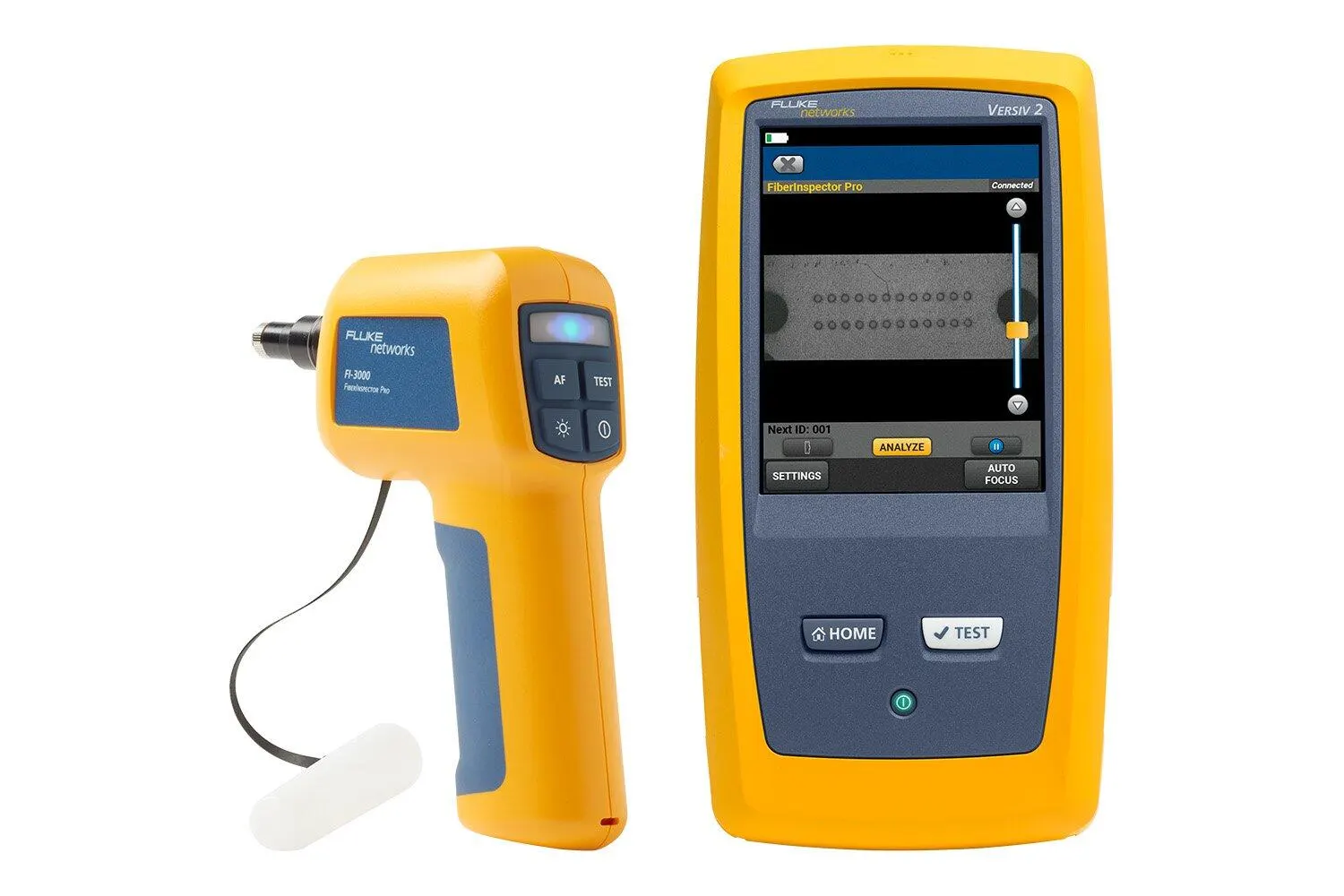

Fluke Networks FI2-7300 FiberInspector™ Pro, Includes Versiv Mainframe

Inspect MPO and single fiber optic cables easily with the Fluke Networks FI2-7300 FiberInspector™ Pro including Versiv. Instant, real-time image to view the full connector down to individual end faces.

Manufacturer part number (MPN)

5102097

Brand

Fluke

Category

Tools

Temperature range

Operating: -10 °C to +45 °C (+14 °F to +113 °F) Storage: -10 °C to +60 °C (+14 °F to +140 °F)

Humidity range

Operating: 0 % to 95 % (32 °F to 95 °F, 0 °C to 35 °C) RH non-condensing Storage: 0 % to 95 % (95 °F to 113 °F, 35 °C to 45 °C) RH non-condensing

Altitude

Operating: 4,000 m (3,200 m with AC adapter) Storage: 12,000 m

Vibration

2 g, 5 Hz to 500 Hz

Shock

1 meter drop test

Safety

IEC 61010-1: Pollution Degree 2

EMC

IEC 61326-1: Controlled Electromagnetic Environment; IEC 61326-2-1 CISPR 11: Group 2, Class A USA (FCC): 47 CFR 15 Intentional Radiators: This device complies with part 15 of the FCC Rules.

Endtype support

Single Fiber and MPO: 1x8 (8 fibers), 1x12 (8, 10, or 12 fibers), 1x16 (16 fibers), 2x12 (16, 20, or 24 fibers), 2x16 (32 fibers)

Test limits

IEC 61300-3-35 ED. 2 MM IEC 61300-3-35 ED. 2 SM APC Document Only

Optional automated pass/fail test time

Less than 2 seconds per fiber

Camera type

5 Megapixel 1/4-inch CMOS sensor

Field of view

610 µm x 460 µm

Resolution

1 µm

Light source

LED, >100,000 hr life

Endface illumination

Coaxial blue LED

Battery type

Lithium-ion; 10.8 hour life

Power adapter

Input: 100 to 240 VAC ±10%, 50/60Hz Output: 15 VDC, 2 A maximum Class II

Wireless transmission*

Output power: <100 mW Frequency ranges: 2.4 GHz (2412 MHz to 2462 MHz)

Dimensions

6.625 x 5.375 x 2.125 in (168 x 137 x 54 mm) (with no dust cap or adapter tip) Length with dust cap: 7.5 in (191 mm)

Weight

11.5 oz (326 gm) (with dust cap and no adapter tip)
