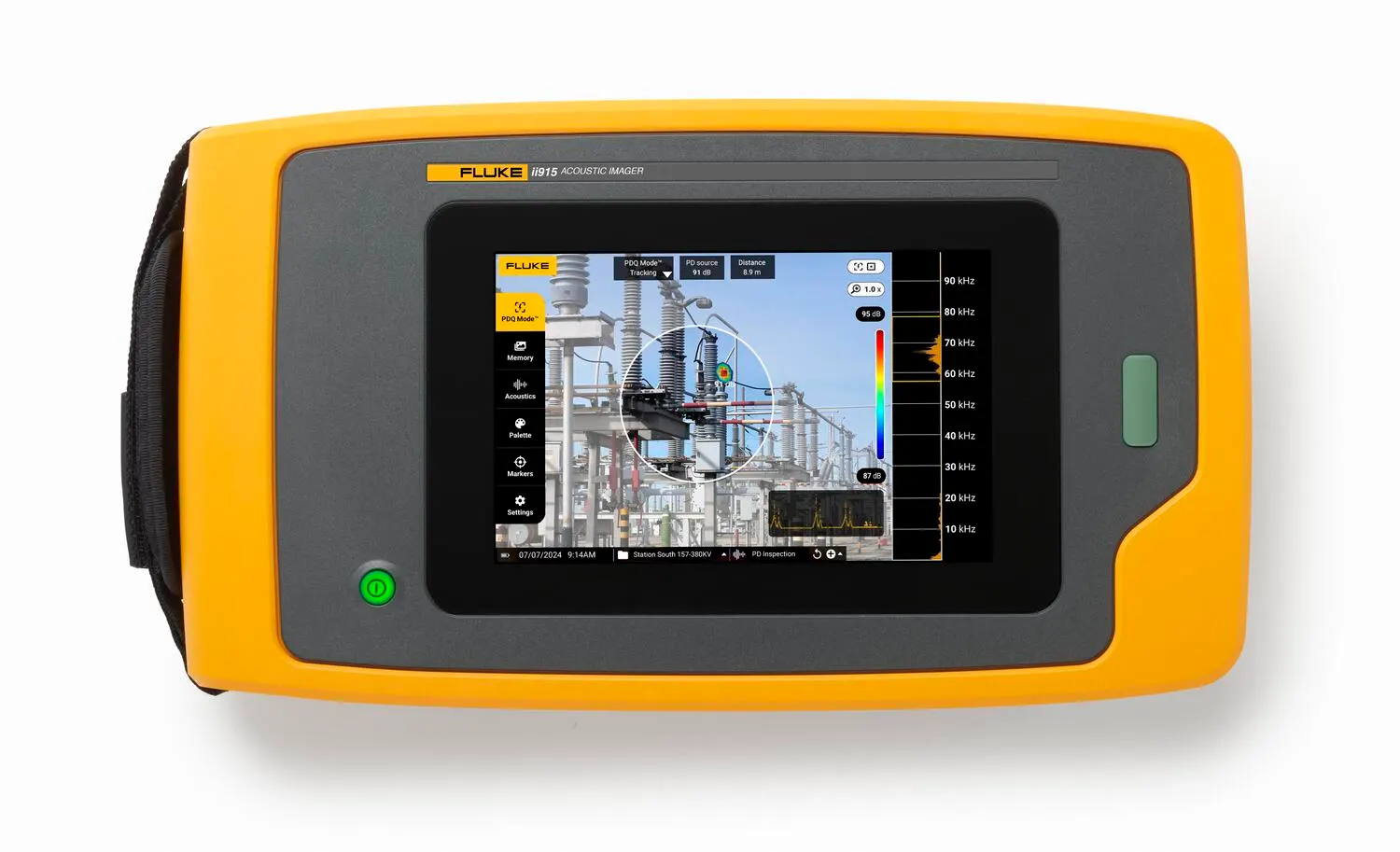

Fluke II915 Acoustic Imager

The Fluke ii915 Acoustic Imager provides easy, fast, and safe detection and assessment of compressed gas leaks, partial discharges, and mechanical anomalies.

Manufacturer part number (MPN)

5594661

Brand

Fluke

Category

Tools

Frequency band

2 kHz to 100 kHz 2 kHz to 52 kHz

Detection range1

0.5 to > 120 meters (1.6 to > 393 feet)

Field of view (FOV)

63°± 5°

Nominal frame rate

25 FPS

Focus

Fixed lens

Zoom

3 x digital zoom

Resolution

5 MP

Size

7" LCD with backlight, sunlight readable

Touchscreen

Capacitive

Acoustic image

SoundMapTM image

Storage capacity

32 GB (> 8,000 pictures / > 1,600 videos)

Image format

Blended visual and SoundMapTM .JPG or .PNG

Video format

Blended visual and SoundMapTM .MP4

Video length

Up to 5 minutes

Digital export

USB-C for data transfer

Measurement range (typical)

12.1 to 114.6 dB SPL (± 1 dB SPL 2 kHz) 4.4 to 101.2 dB SPL (± 2 dB SPL 19 kHz) 12.8 to 119.2 dB SPL (± 1 dB SPL 35 kHz) 19.8 to 116.1 dB SPL (± 3 dB SPL 52 kHz) 41.4 to 129.0 dB SPL (± 1 dB SPL 80 kHz) 54.4 to 135.5 dB SPL (± 1 dB SPL 100 kHz)

LeakQTM

Leak size scale, Leak rate, and Leak cost estimation

PDQ ModeTM

Partial discharge type classification

MecQTM

Mechanical anomaly detection

Auto max/min dB gain

Auto or manual, user selectable

Frequency band selection

User selectable through user-made presets or manual entry

Battery

Rechargeable and field replaceable Li-ion battery

Battery life

6 hours

Battery charging time

~3,5 hours

Battery charging system

Internal (USB-C)

Ease of use

Intuitive user interface

Grayscale mode

Yes

Centerpoint markers

On/Off

Trend graphs

Frequency and dB scale

Spotmarkers

dB level reading at center point of image

Leak values

Leak costs, Leak volume, LeakQTM scale (1-10)2

Master admin menu

Yes

Annotation

Asset name; Asset ID; Asset type; Leak type; Gas type; Pressure

Photo notes

Up to 4 photos notes for reference

Asset inspection status

'As left', 'As found', 'Undetermined'

Asset ID

Text input and automatic QR code based asset ID identification

Actions annotation

Action requirements, Action priority level, Action notes

Other

Operating conditions, Weather notes

Tripod holder / connector

Yes: 1/4"-20

USB

2 x USB-C

Wireless

Wifi

Operating Temperature

-10 to 45 °C (14 to 113 °F)

Storage Temperature

-20 to 70 °C (-4 to 158 °F) without batteries installed

Relative humidity

10 to 95 % non-condensing

Size (H x W x L)

186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches)

Weight (battery included)

2 kg (4.4 pounds)

Ingress Protection (IP)

IP40

Warranty

2 year

Fluke Premium Care

Premium Care Standard3

Self-diagnostic notification

Array-health test to identify when microphone array needs attention

Supported languages

Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Simplified Chinese, Spanish, Swedish, Traditional Chinese

RoHS compliant

Yes

General safety

IEC 61010-1

Electromagnetic Compatibility (EMC) International

IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2 CISPR 11: Group 1, Class A

Korea (KCC)

Class A Equipment (Industrial Broadcasting and Communication)

USA (FCC)

47 CFR 15 sub part B. This product is considered an exempt device per clause 15.103
