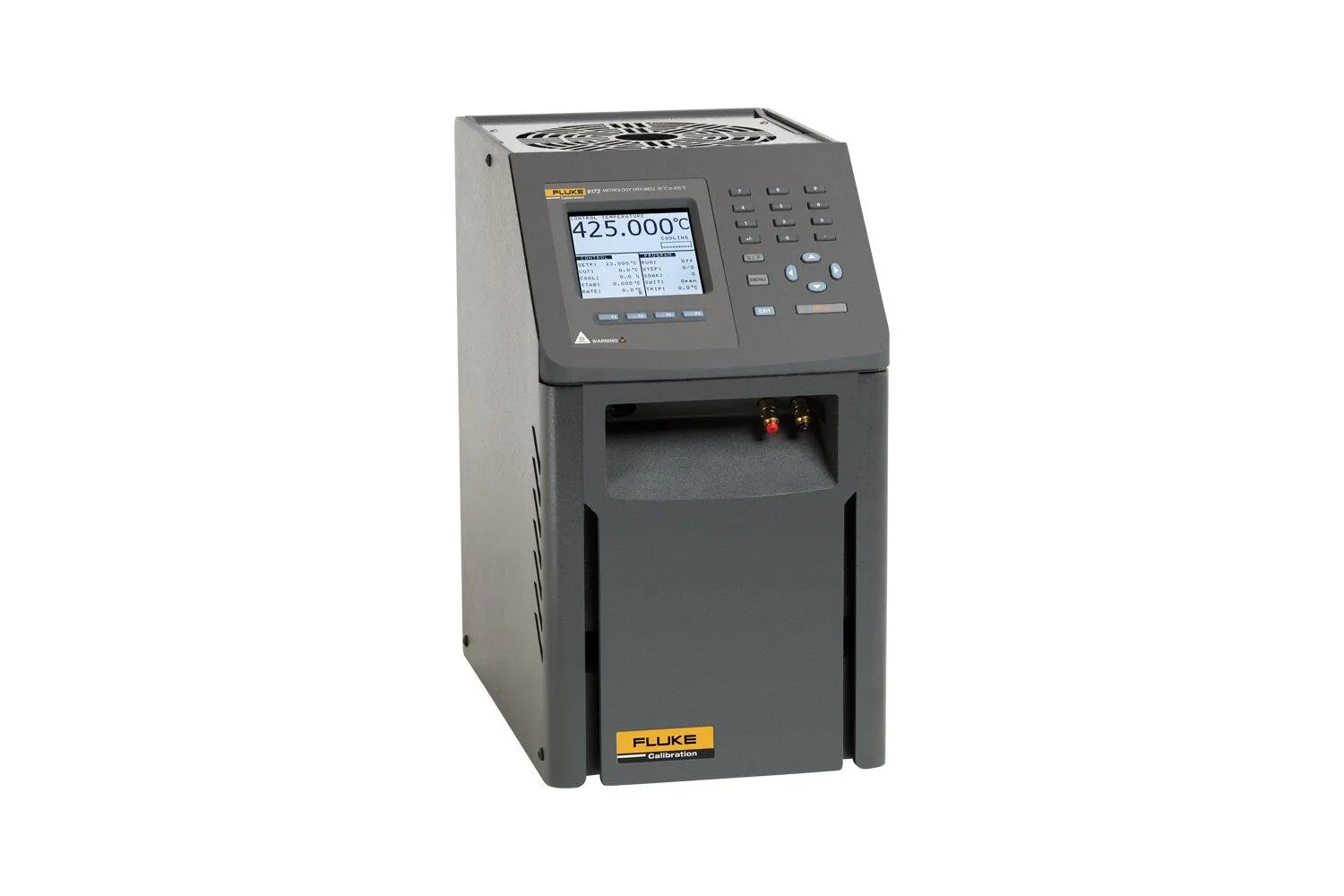

Fluke Calibration 9172 Metrology Well

9172 Metrology Wells. Now we’ve combined bath-level performance with dry-well functionality and legitimate reference thermometry to create Metrology Wells. Metrology Wells light you bring lab-quality performance into whatever field environment you might work in.

Manufacturer part number (MPN)

2459286

Brand

Fluke

Category

Tools

Range (at 23°C ambient)

35°C to 425°C (95°F to 797°F)

Display accuracy

±0.1°C: 35°C to 100°C ±0.15°C: 100°C to 225°C ±0.2°C: 225°C to 425°C

Stability

±0.005°C: 35°C to 100°C ±0.008°C: 100°C to 225°C ±0.01°C: 225°C to 425°C

Axial uniformity

±0.05°C: 35°C to 100°C ±0.1°C: 100°C to 225°C ±0.2°C: 225°C to 425°C

Radial uniformity

±0.01°C: 35°C to 100°C ±0.02°C: 100°C to 225°C ±0.025°C: 225°C to 425°C

Hysteresis

0.04°C

Well depth

203 mm (8 in)

Resolution

0.001°C

Display

LCD, °C or °F, user-selectable

Key pad

Ten key with decimal and ± button. Function keys, menu key, and °C / °F key.

Cooling time

220 min: 425°C to 35°C 100 min: 425°C to 100°C

Heating time

27 min: 35°C to 425°C

Size (H x W x D)

366 x 203 x 323 mm (14.4 x 8 x 12.7 in)

Weight

13.2 kg (29 lb)

Power

115 V AC (±10%), or 230 V AC (±10%), 50/60 Hz, 1025 W

Computer interface

RS-232 Interface

Traceable calibration (NIST)

Data at 100°C, 150°C, 250°C, 350°C, and 425°C

Specifications

Built-in Reference Input

Temperature range

–200°C to 962°C (–328°F to 1764°F)

Resistance range

0 Ω to 400 Ω, auto-ranging

Characterizations

ITS-90 subranges 4, 6, 7, 8, 9, 10, and 11 Callendar-Van Dusen (CVD): R0, a, b, d

Resistance accuracy

0 Ω to 20 Ω: 0.0005 W 20 Ω to 400 Ω: 25 ppm

Resistance resolution

0 Ω to 20 Ω: 0.0001 Ω 20 Ω to 400 Ω: 0.001 Ω

Measurement period

1 second

Probe connection

4-wire with shield, 5-pin DIN connector

Calibration

NVLAP accredited (built-in reference input only), NIST-traceable calibration provided

HS Code

9031.80
