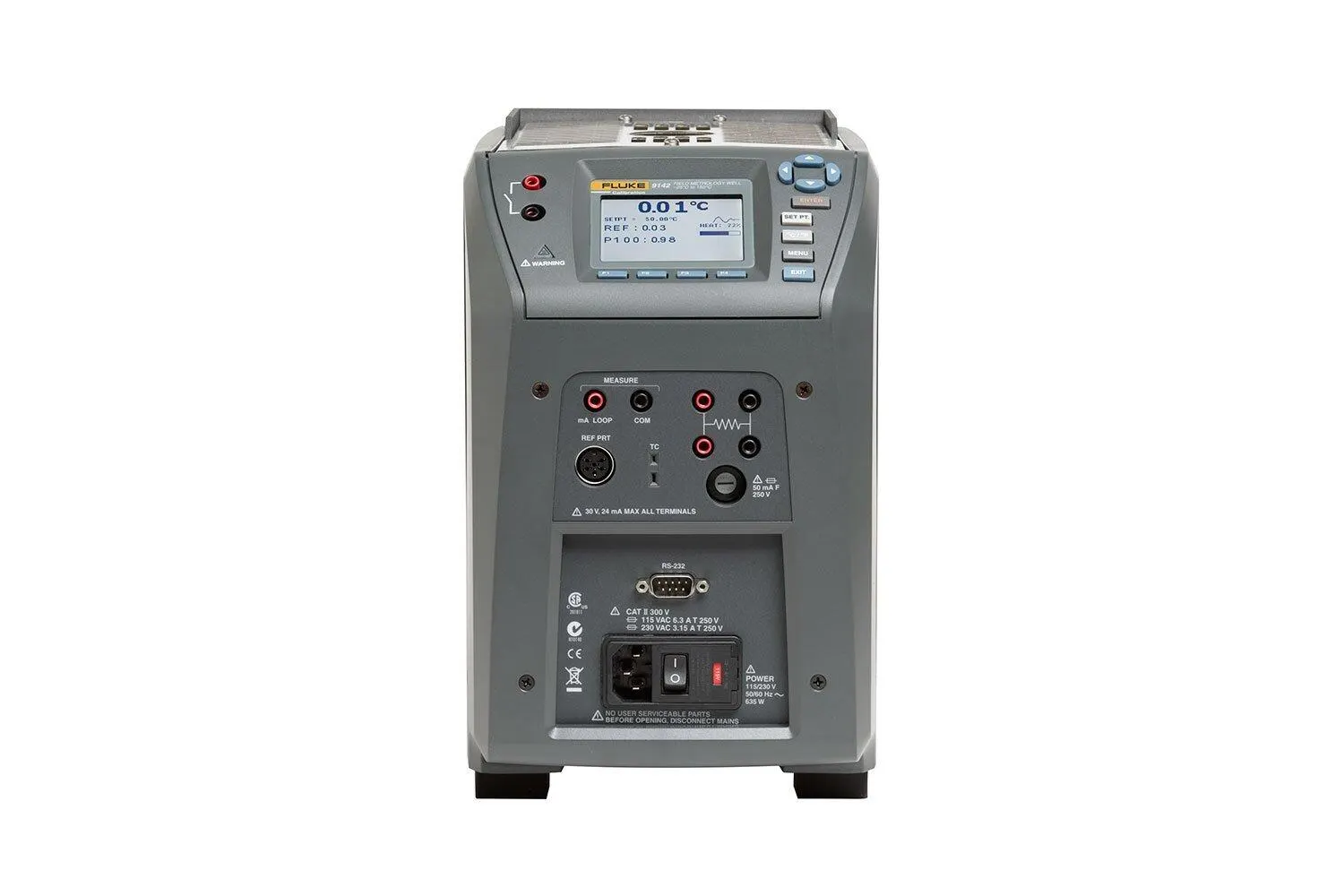

Fluke Calibration 9142 Field Metrology Well

Fluke 9142 Field Metrology Wells: ✅ High performance. ✅ Free shipping at fluke.com. ✅ Unmatched value. ✅ Official Fluke. Learn more

Manufacturer part number (MPN)

3054127

Brand

Fluke

Category

Tools

Temperature range at 23°C

–25°C to 150°C (–13°F to 302°F)

Display accuracy

±0.2°C full range

Stability

±0.01°C full range

Axial uniformity at 40 mm (1.6 in)

±0.05°C full range

Radial uniformity

±0.01°C full range

Hysteresis

0.025

Operating conditions

0°C to 50°C, 0% to 90% RH (non-condensing)

Immersion (well) Depth

150 mm (5.9 in)

Insert OD

30 mm (1.18 in)

Heating time

16 min: 23°C to 140°C 23 min: 23°C to 150°C 25 min: –25°C to 150°C

Cooling time

15 min: 23°C to –25°C 25 min: 150°C to –23°C

Resolution

0.01°

Display

LCD, °C or °F user-selectable

Size (H x W x D)

290 x 185 x 295 mm (11.4 x 7.3 x 11.6 in)

Weight

8.16 kg (18 lb)

Power requirements

100 V to 115 V (±10%) 50/60 Hz, 635 W 230 V (±10%) 50/60 Hz, 575 W

Computer interface

RS-232 interface

Calibration

Accredited calibration included

Automation

Use the 1586A Super-DAQ to automate temperature sensor calibration

Reference resistance range

0 ohms to 400 ohms

Reference resistance accuracy2

0 ohms to 42 ohms: ±0.0025 ohms 42 ohms to 400 ohms: ±60 ppm of reading

Reference characterizations

ITS-90, CVD, IEC-751, Resistance

Reference measurement capability

4-wire

Reference probe connection

6-pin Din with Infocon Technology

Built-in RTD thermometer readout accuracy

NI-120: ±0.015°C at 0°C PT-100 (385): ±0.02°C at 0°C PT-100 (3926): ±0.02°C at 0°C PT-100 (JIS): ±0.02°C at 0°C

RTD resistance range

0 ohms to 400 ohms

RTD resistance accuracy2

0 ohms to 25 ohms: ±0.002 ohms 25 ohms to 400 ohms: ±80 ppm of reading

RTD characterizations

PT-100 (385),(JIS),(3926), NI-120, Resistance

RTD measurement capability

4-wire RTD (2-,3-wire RTD w/ Jumpers only)

RTD connection

4 terminal input

Built-in TC thermometer readout accuracy

Type J: ±0.7°C at 660°C Type K: ±0.8°C at 660°C Type T: ±0.8°C at 400°C Type E: ±0.7°C at 660°C Type R: ±1.4°C at 660°C Type S: ±1.5°C at 660°C Type M: ±1.4°C at 660°C Type L: ±0.7°C at 660°C Type U: ±0.75°C at 600°C Type N: ±0.9°C at 660°C Type C: ±1.1°C at 660°C

TC millivolt range

–10 mV to 75 mV

Voltage accuracy

0.025% of reading + 0.01 mV

Internal cold junction compensation accuracy

±0.35°C (ambient of 13°C to 33°C)

TC connection

Small connectors

Built-in mA readout accuracy

0.02% of reading + 2 mV

mA range

Cal 4-22 mA, Spec 4-24 mA

mA connection

2 terminal input

Loop power function

24 V DC loop power

HS Code

9031.80
