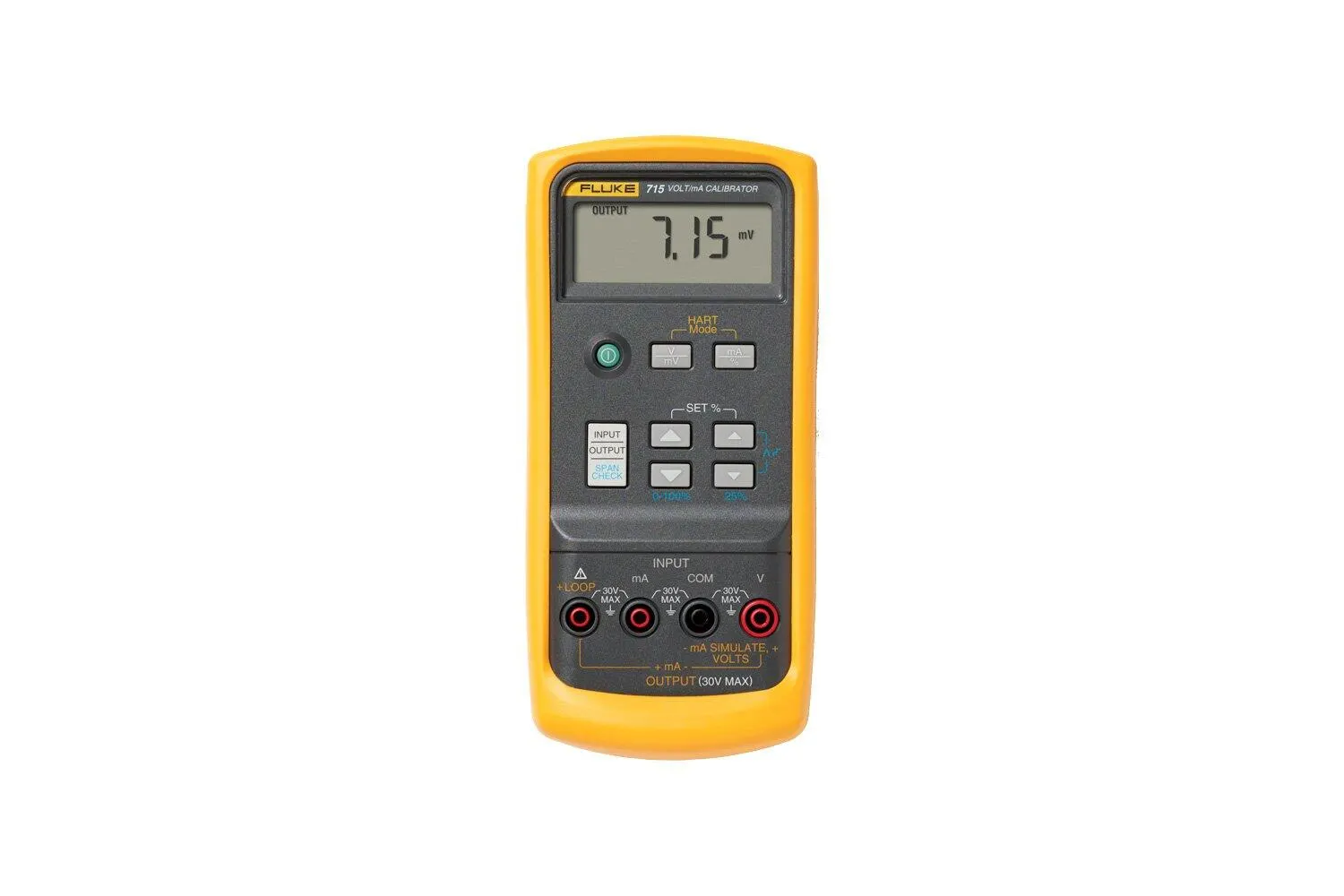

Fluke 715 Volt/mA Loop Calibrator

The Fluke 715 Volt/mA Loop Calibrator measures loop current (0-20 mA, 4-20 mA) signals with 0.01 % accuracy and 1 µA resolution. Get specs & free demo here.

Manufacturer part number (MPN)

620101

Brand

Fluke

Category

Tools

Measure / Source mV Range

0 to 200 mV

Measure / Source mV Resolution

0.01 mV

Measure / Source mV Accuracy

0.015% + 2 counts

Measure / Source V Range

0 to 20 V

Measure / Source V Resolution

0.001 V

Measure / Source V Accuracy

0.01% + 2 counts

Measure / Source/ Simulate mA (% of span) Range

0 to 24 mA (-25% to 125%)

Measure / Source/ Simulate mA (% of span) Resolution

0.001 mA

Measure / Source/ Simulate mA (% of span) Accuracy

0.01% + 2 counts

Loop power Range

24 V DC

Loop power Accuracy

±10%

Loop power Display

Clear 5 digit LCD

Operating temperature

-10°C to 55°C

Storage temperature

-40°C to 60°C

Humidity (without condensation)

95% (10°C to 30°C)

Operating altitude

3,000 m max

Safety

CSA C22.2 No. 1010.1:1992

Size (L x W x D)

187 x 87 x 32 mm

Weight

Approx. 330 g

Warranty

3 years

Shock and vibration

Random, 2 G, 5-500 Hz

Battery type

Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline

HS Code

9031.80
