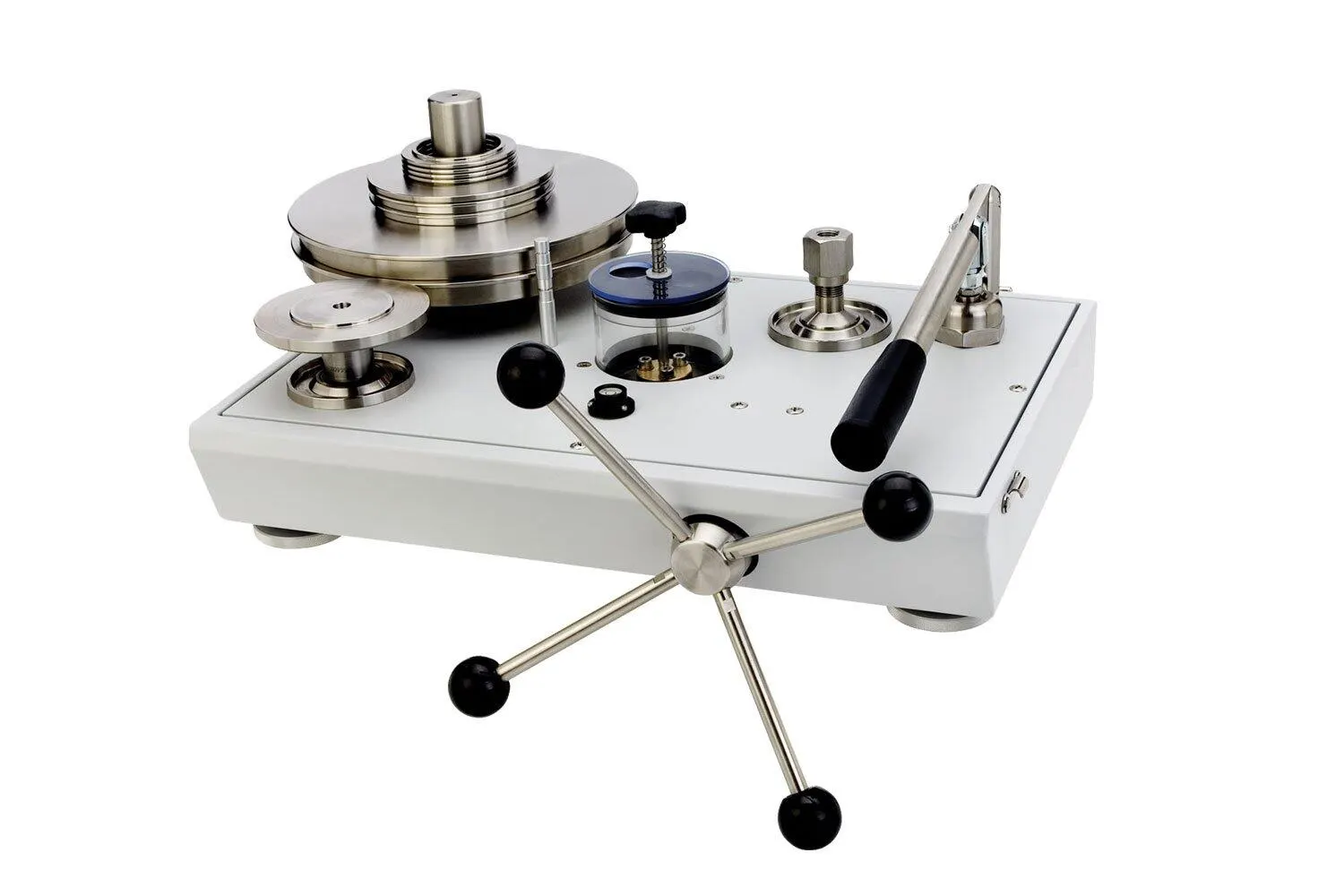

Fluke Calibration P3100 Hydraulic Deadweight Testers

The highly accurate, quick and easy to use oil operated P3100 hydraulic deadweight testers are available in single or dual piston formats for increased operating ranges.

Manufacturer part number (MPN)

3892242 Brand: Fluke Category: Tools Oil operated: Ranges to 20,000 psi (1400 bar) Accuracy1: ±0.015% of reading (±0.008% optional) Standard weight material: Series 3 non-magnetic austenitic stainless steel Weight density: 7.8 g/cm³ Optional fractional weights: Solution heat treated aluminum Piston material: Tungsten carbide with nickel binder Density- 15.0 g/cm³ Cylinder material: Hardened martensitic steel Tungsten carbide (water above 500 psi, 35 bar) Thermal coefficients of expansion: Oil piston/cylinder 16.5 ppm/°C Water (above 500 psi, 35 bar) 11 ppm/°C Test port adaptors: 1/8, 1/4, 3/8 and ½ NPT or BSP Instrument weight: 36 lbs (16 kg) Instrument size (W x D x H): 17.5 x 12 x 8.5 Mass set weight (typical): 80 lbs (36 kg) Reservoir volume: 150 cc Screw press displacement: 5.5 cc Pump displacement: 4.7 cc per stroke O-ring seal materials: Buna N as standard, Viton and EPDM available minimum standard weight increments: Up to 500 psi (35 bar): 1 psi (0.1 bar) 500 to 5000 psi (35 to 350 bar): 10 psi (1 bar) 5000 to 20,000 psi (350 to 1400 bar): 20 psi (2 bar) Model P3112: 1 psi (0.1 bar) Mineral oil: Shell spindle oil 22, our reference 55-655, viscosity 40 cs @ 20°C PressCal software: Windows-based software program that allows users to easily apply all necessary corrections to enhance the deadweight tester performance. Calibration details are then stored and/or used to automatically create a calibration certificate. PressCal is provided as standard with all 0.008% instruments.

HS Code

9031.80
