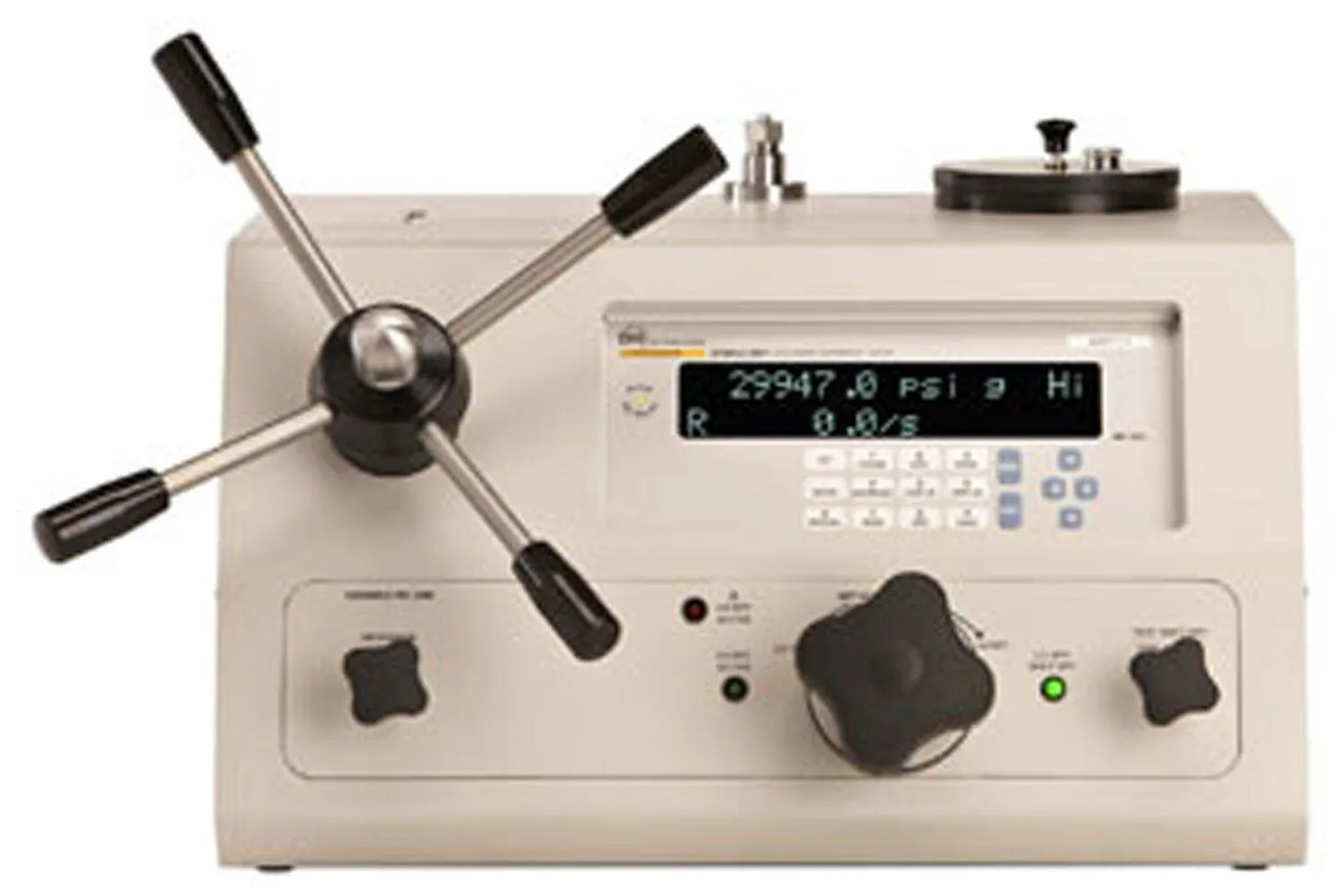

Fluke Calibration 6531, 6532 E-DWT Electronic Deadweight Tester Kits

A powerful, complete hydraulic pressure calibration system to cover a wide workload

Manufacturer part number (MPN)

4183623

Brand

Fluke

Category

Tools

Pressure range

Up to 200 MPa (30k psi), depending on configuration

Operating medium

All 6531 and 6532 E-DWT Kits are shipped dry, standard preparation. Can be filled with di-ethyl-hexyl sebacate, silicon oils, propylene glycol, fully fluorinated liquids, partially fluorinated liquids, isopropyl alcohol and distilled water or mineral oil.

Reservoir capacity

300 cc (18 in3)

Variable volume displacement

3 cc (0.18 in3), 200 MPa (30,000 psi) maximum

Filling and priming pump displacement

3.7 cc (0.23 in3)

Warm up time

15 minute temperature stabilization recommended from cold power up

Normal Operating Temperature Range

10 °C to 40 °C (50 °F to 104 °F)

Resolution

Default: 0.01 % of active range User adjustable to 1 ppm of Q-RPT maximum or 10 ppm of active AutoRange, whichever is larger

Precision1

200 MPa (30,000 psi) ranges: ± 0.018 % of reading or 0.0036 % of Q-RPT span, whichever is greater All other ranges: ± 0.018 % of reading or 0.0018 % of Q-RPT span, whichever is greater

HS Code

9030.33
