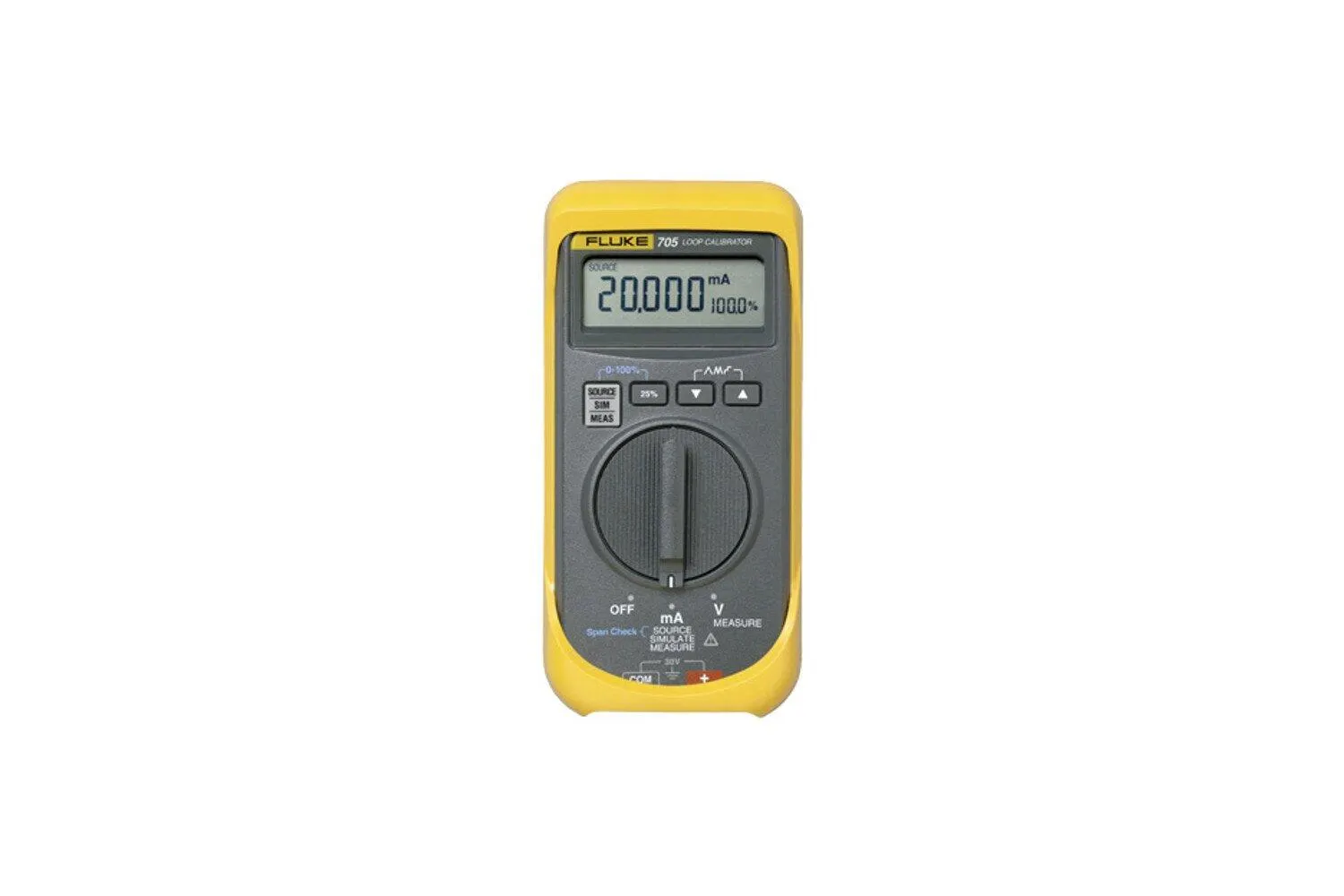

Fluke 705 Loop Calibrator

The Fluke 705 Loop Calibrator is a cost-effective, integrated solution for calibration, repair, & maintenance of milliamp loops. Get specs & details here.

Manufacturer part number (MPN)

665091

Brand

Fluke

Category

Tools

Current measurement Range

0 to 24 mA

Current measurement Resolution

0.001 mA

Current measurement Accuracy

0.02% Rdg + 2 LSD

Current sourcing Range

0 to 20 mA or 4 to 20 mA

Current sourcing Accuracy

0.025% Rdg + 2 LSD

Current sourcing Drive capability

1000 Ω @ 24 mA

Current simulation Range

0 to 20 mA or 4 to 20 mA

Current simulation Accuracy

0.025% Rdg + 2 LSD

Current simulation Ext. loop voltage requirement

12-30 V

Loop power

While measuring mA, 24 V

Voltage measurement Range

0 to 28 V DC

Voltage measurement Resolution

1 mV

Voltage measurement Accuracy

0.025% Rdg + 2 LSD

Operating temperature

-10°C to 55°C

Storage temperature

-40°C to 60°C

Humidity (without condensation)

0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)

Temperature coefficient

-10°C to 18°C, 28°C to 55°C, ±.005% of range per°C

Safety

CSA C22.2 No. 1010.1:1992

EMC

EN50082-1:1992 and EN55022:1994 Class B

Maximum voltage

30 V

Size

152 x 70 x 41 mm

Weight

340 g

Batteries

One 9 V battery

Warranty

Three years

Shock and vibration

per MIL-T-28800 for a Class 2 Instrument

Display current and % of span

Yes

Auto step, auto ramp

Yes

Span check

Yes

HS Code

9031.80
