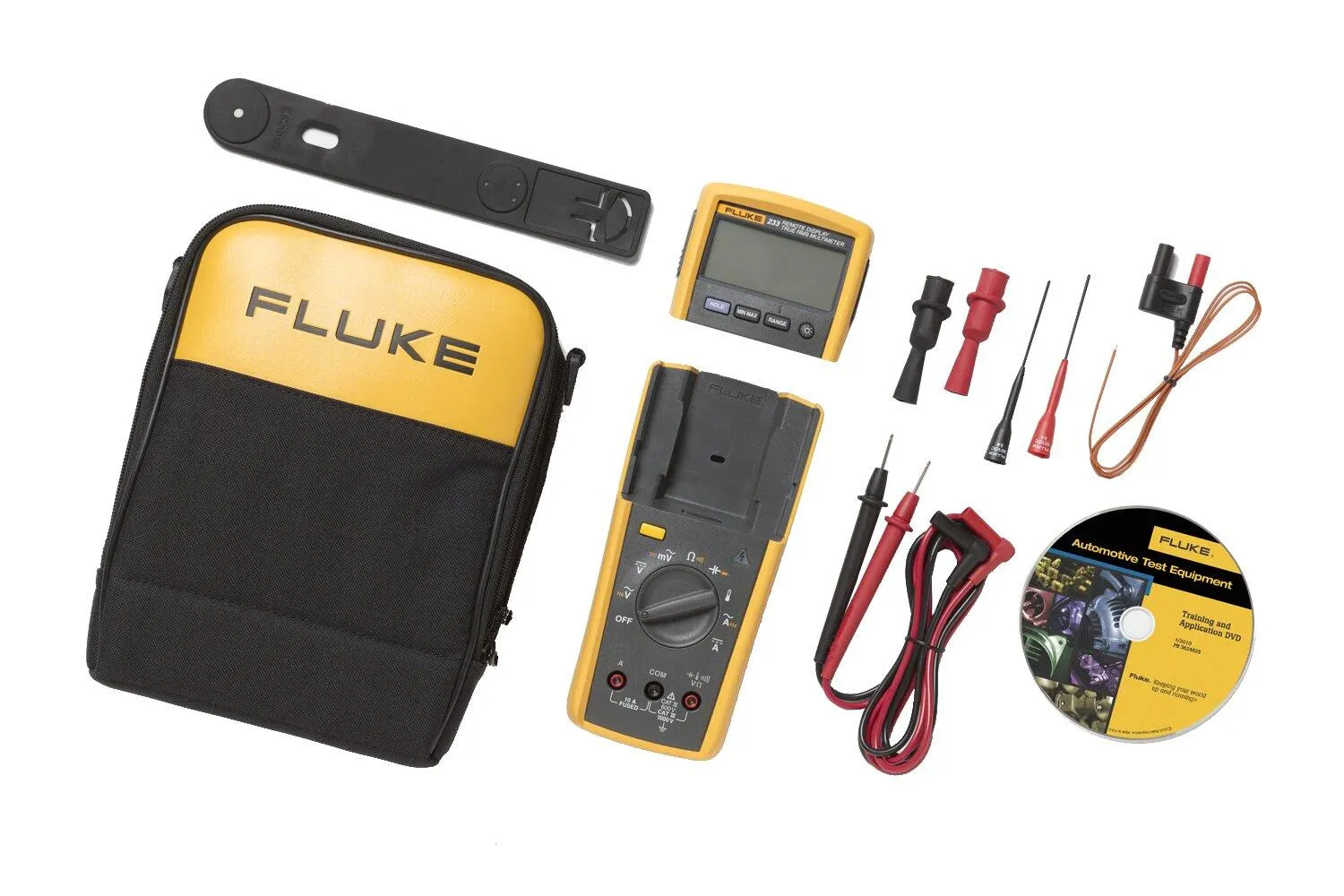

Fluke 233/A Remote Display Automotive Digital Multimeter Kit

Automotive Multimeter - Fluke 233 with removable display allows you to connect to one point of the car and read results in another. Learn More.

Manufacturer part number (MPN)

3566508

Brand

Fluke

Category

Tools

DC voltage Range

0.1 mV to 1000 V

DC voltage Accuracy

0.25% + 2

AC voltage Range

0.1 mV to 1000 V

AC voltage Accuracy

1.0% + 3

DC current Range

1 mA to 10 A

DC current Accuracy

1.0% + 3

AC current Range

1 mA to 10 A

AC current Accuracy

1.5% + 3

Resistance Range

0.1 Ω to 40 MΩ

Counts

6000

Capacitance Range

1 nF to 9999 μF

Capacitance Resolution

1nF

Frequency Range

5 Hz to 50 kHz

Frequency Resolution

0.01Hz

Temperature

-40°C to +400°C

Power

AA batteries: Three for main body; two for display

Battery life

400 hours

Wireless frequency

2.4 GHz ISM Band 10 meter range

Safety rating

CAT IV 600 V , CAT III 1000 V

Basic features AC true-rms

Yes

Basic features Ranging

Auto/Manual

Display Backlight

Yes

Data storage Min/Max/Avg

Yes

Other features Battery type

AA alkaline

Other features Removable display

Yes

Warranty and protection Safety rating

CAT IV 600 V/CAT III 1000 V

Warranty and protection External protection

Rubber overmold

Warranty and protection Warranty

Three-years

Warranty and protection Size (H x W x L)

5.3 x 9.3 x 19.3 cm (2.08 x 3.6 x 7.6 in)

Warranty and protection Weight

604 g (1.3 Ib)

HS Code

9030.33
