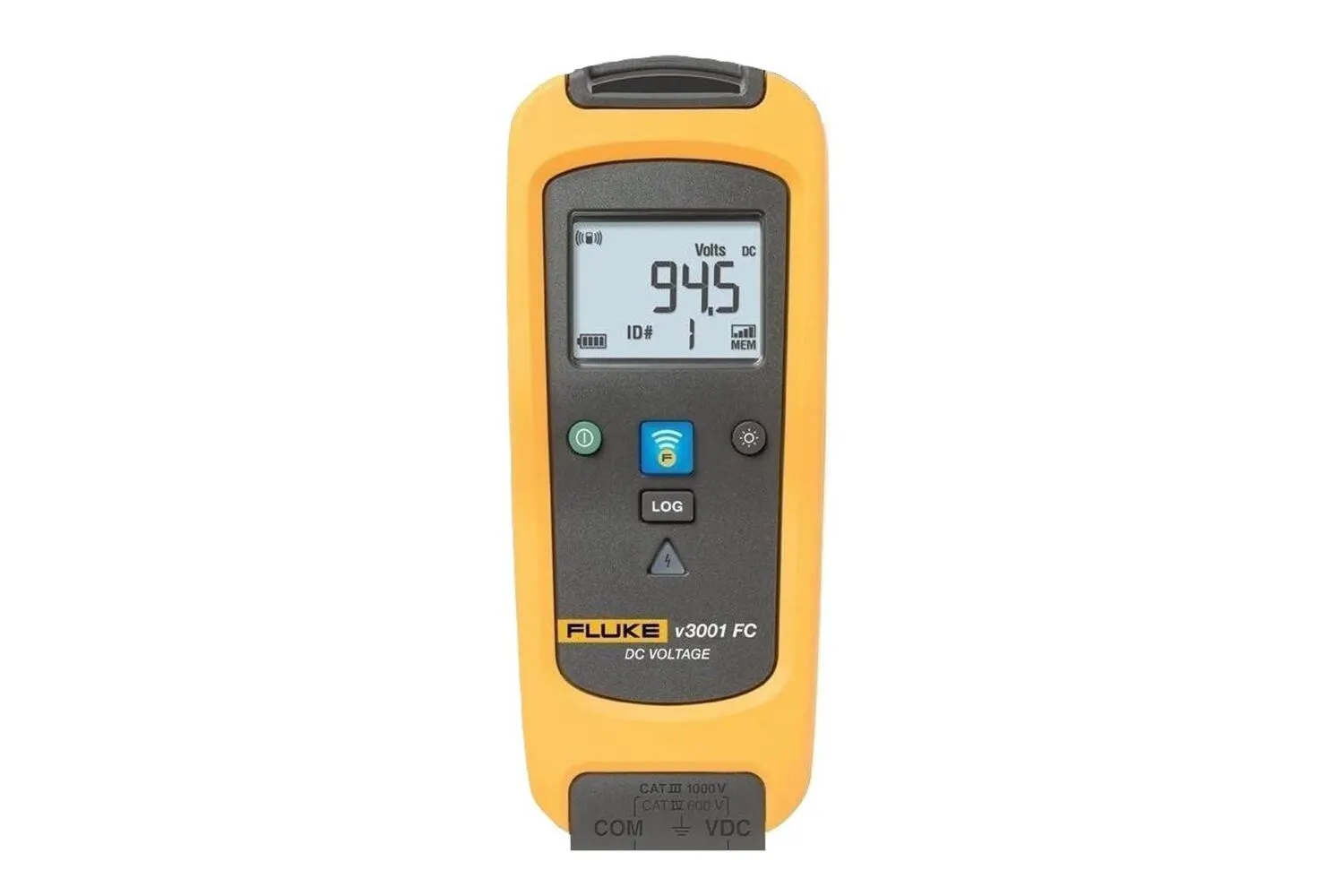

Fluke V3001 FC Wireless DC Voltage Module

A fully functional DC voltage meter that wirelessly relays DC voltage measurements to other Fluke Connect® enabled master units

Manufacturer part number (MPN)

4459421 Brand: Fluke Category: Tools mV DC Range¹ / resolution: 600.0 mV / 0.1 mV mV DC Accuracy: 0.09% + 3 VDC Range¹ / resolution: 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V VDC Accuracy: 0.09% + 3 LCD w/ backlight: 3 ½ digits, 6000 counts, 4/sec update rate Battery type: 2 AA Alkaline batteries, NEDA 15A, IEC LR6 Log rate/interval: Adjustable by PC from 1 sec to 1 hr, default 1 min Battery life: 400 hours minimum Memory: Record up to 65,000 readings RF communications: 2.4 GHz ISM Band RF communication range Open air, unobstructed: Up to 20 m RF communication range Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m Operating temperature: -10°C to +50°C Storage temperature: -40°C to +60°C Temperature coefficient: 0.1 x (specified accuracy) / °C ( 28°C) Relative humidity: 0% to 90% (0°C to 35°C), 0% to 75% (35°C to 40°C), 0% to 45% (40°C to 50°C) EMC: IEC 61236–1, Portable Safety compliance: IEC 61010–1, 600 V CAT IV / 1000 V CAT III, 3rd edition, Pollution Degree 2 Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE Ingress Protection (IP) rating: IP42 Size (H x W x D): 160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in) Weight: 0.255 kg (9 oz) Warranty: Three years

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/digital-multimeters/fluke-v3001-fc
