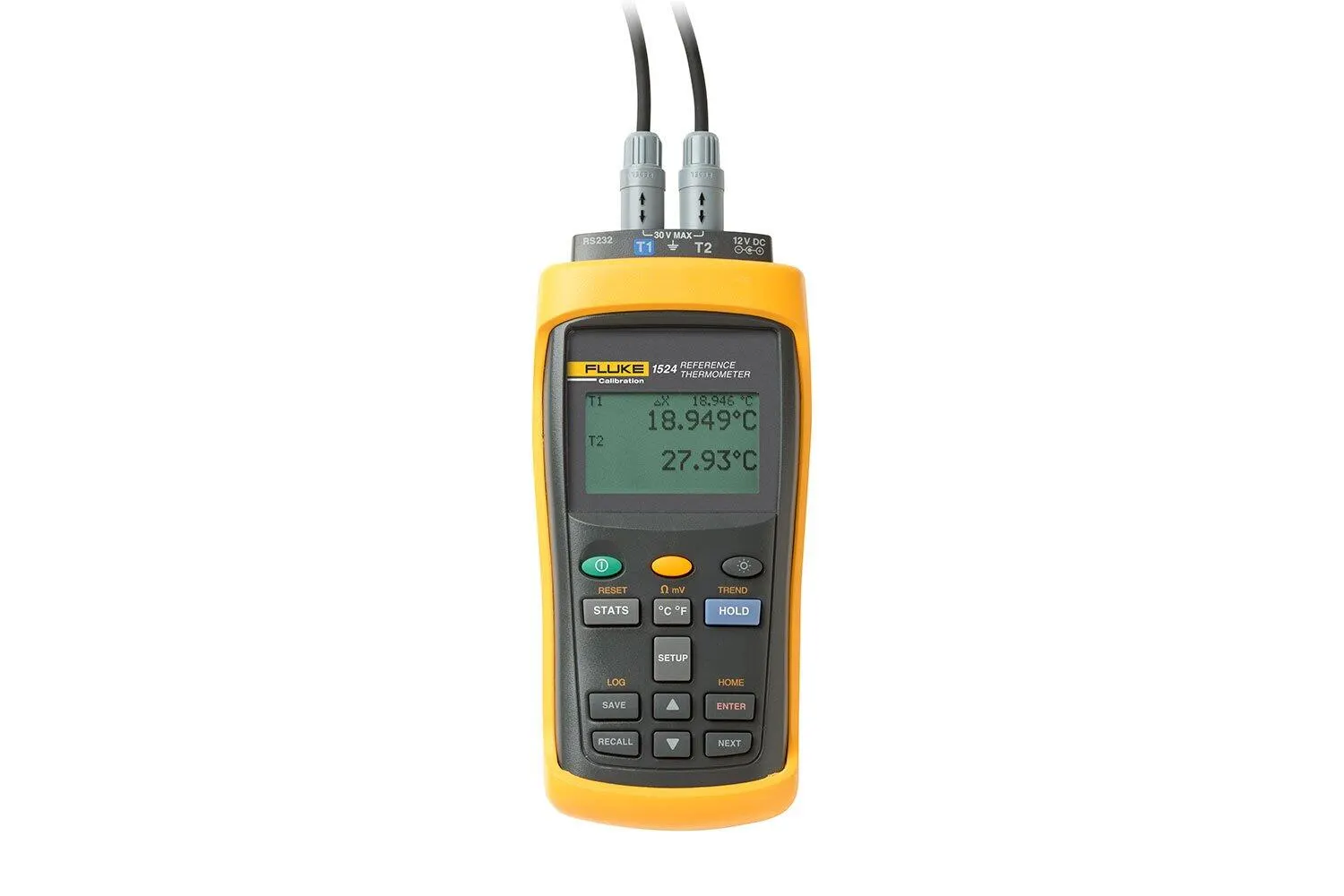

Fluke Calibration 1524 Handheld Thermometer Readout

The 1524 Reference Thermometers from Fluke’s Hart Scientific Division measure, graph, and record PRTs, thermocouples, and thermistors.

Manufacturer part number (MPN)

3376600

Brand

Fluke

Category

Tools

Input channels

2

Logging

15,000 time and date stamped; 25 readings with statistics

Sample interval (normal)

1 second

Sample interval (fast mode)

0.3 seconds (see technical manual for details)

Sensor types

PRTs, RTDs, thermistors, and thermocouples

Thermocouple types

C, E, J, K, L, M, N, T, U, B, R, S

Operating temperature

-10°C to 60°C (Best accuracy 13°C to 33°C)

Power requirements

3 AA alkaline batteries

Size

96 x 200 x 47 mm (3.75 x 7.9 x 1.86 in)

Weight

0.65 kg (1.4 lb)

Environmental conditions for best accuracy

13°C to 33°C

Millivolt range and accuracy

–10 mV to 75 mV ±(0.005% + 5 μV)

Resistance range and accuracy

0 Ω to 400 Ω ±(0.004% + 0.002 Ω) 200 Ω to 50 kΩ ±(0.01% + 0.5 Ω) 50 kΩ to 500 kΩ ± (0.03%)

Excitation current, resistance

1 mA (0 Ω to 400 Ω) 10 μA (0 Ω to 50 kΩ) 2 µA (50 kΩ to 500 kΩ)

Type B

±0.85°C from 600°C to 800°C ±0.68°C from 800°C to 1000°C ±0.57°C from 1000°C to 1800°C

Type C

±0.32°C from 100ºC to 550°C ±0.71°C from 550°C to 2300°C

Type E

±0.52°C from -200°C to 0°C ±0.22°C from 0°C to 950°C

Type J

±0.52°C from -200°C to 0°C ±0.23°C from 0°C to 1200°C

Type K

±0.61°C from -200°C to 0°C ±0.24°C from 0°C to 1370°C

Type L

±0.36°C from -200°C to 0°C ±0.23°C from 0°C to 1370°C

Type M

±0.26°C from -20°C to 0°C ±0.25°C from 0°C to 400°C ±0.22°C from 400°C to 1400°C

Type N

±0.72°C from -200°C to 0°C ±0.28°C from 0°C to 1300°C

Type R

±1.09°C from -20°C to 0°C ±0.97°C from 0°C to 500°C ±0.49°C from 500°C to 1750°C

Type S

±1.05°C from -20°C to 0°C ±0.95°C from 0°C to 500°C ±0.56°C from 500°C to 1750°C

Type T

±0.60°C from -200°C to 0°C ±0.25°C from 0°C to 400°C

Type U

±0.54°C from -200°C to 0°C ±0.24°C from 0°C to 400°C

-200°C

5616-12: 0.014 5615-6: 0.025 5627A-12: 0.027 5610-9: n/a

0°C

5616-12: 0.021 5615-6: 0.021 5627A-12: 0.049 5610-9: 0.009

100°C

5616-12: 0.027 5615-6: 0.028 5627A-12: 0.065 5610-9: 0.009

300°C

5616-12: 0.040 5615-6: 0.043 5627A-12: 0.103 5610-9: n/a

420°C

5616-12: 0.050 5615-6: n/a 5627A-12: 0.130 5610-9: n/a

400°C

±0.031

600°C

±0.039

25°C

±0.003

50°C

±0.006

75°C

±0.014

HS Code

9025.19
