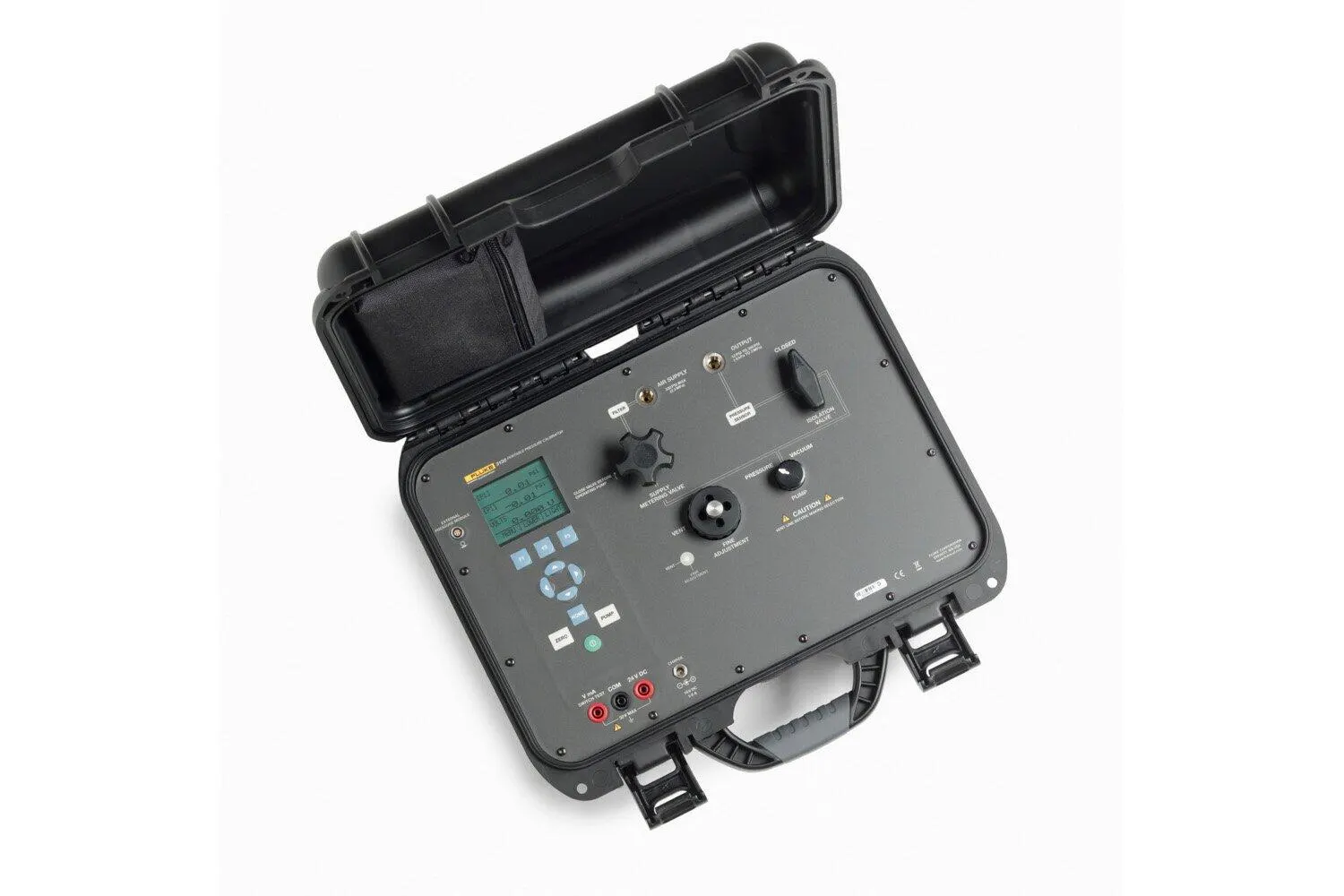

Fluke 3130-G2M Portable Pressure Calibrator

The 3130-G2M Portable Pneumatic Pressure Calibrator is ideal for calibrating pressure transmitters, transducers, gauges and similar devices.

Manufacturer part number (MPN)

4317885

Brand

Fluke

Category

Tools

Operating temperature

-10°C to +50°C

Storage Temperature

-20°C to +60°C

Power requirements

12 V DC (Universal ac adapter/charger supplied)

Battery

Internal 3800 mAh advanced NiMH pack

On full charge

Approx 50 hours (Measure only or external air; no pump)

Using internal pump

Approx 100 calibration cycles to 300 psi

Dimensions (L x W x D)

15.25 x 12 x 7 in

Weight

~7 kg (15 lb)

EMI/RFI conformance

EN61326:2006 Annex A

Connectors/ports

1/8 in NPT (External supply port and test port)

Included accessories

Manual, NIST-traceable certificate, test leads, universal ac adapter/charger

Pressure (internal pump)

-80 kPa to 2 MPa (-12 to 300 psi, -0.8 to 20 bar)

Pressure (external air)

0 to 2 MPa (0 to 300 psi, 0 to 20 bar)

mA

0 to 24.000 mA

Volts

0 to 30.000 V DC

Engineering units

psi, bar, mbar, kPa, MPa, kgf/cm2, mmH2O @ 4°C, mmH2O @ 20°C, cmH2O @ 4°C, cmH2O @ 20°C, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, mmHg @ 0°C, inHg @ 0°C

Pressure

0.025% of reading ±0.01% FS

HS Code

9031.80
