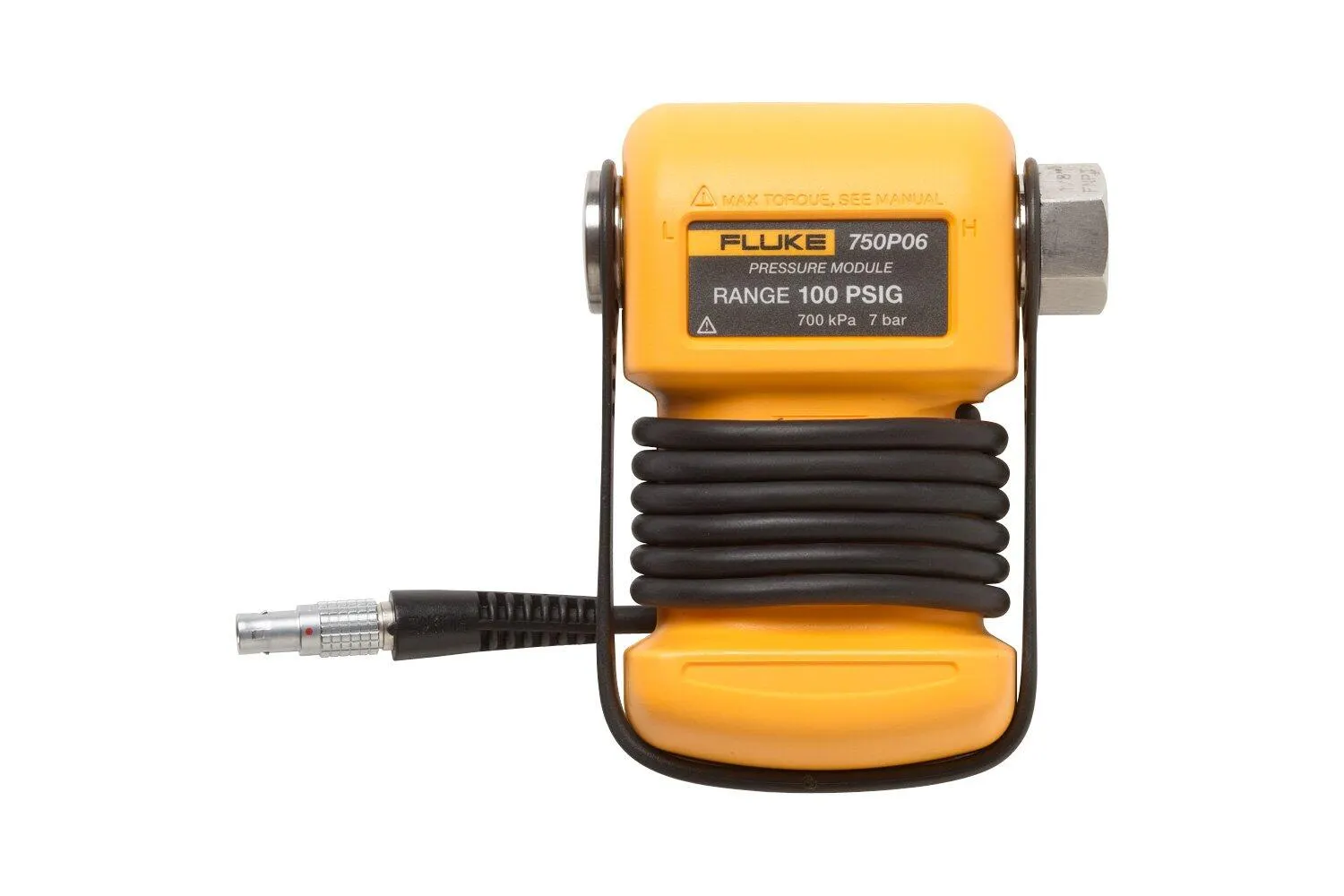

Fluke 750P Series Pressure Modules

Extend the capabilities of Fluke Calibration 750 and 720 series calibrators with 750P pressure modules for gage, differential, and absolute pressure measurements.

Manufacturer part number (MPN)

4352270

Brand

Fluke

Category

Tools

Model Parameter / range

Burst rating6

750P00 0 to 1 inH2O (0 to 2.5 mBar)

30X

750P3IN 0 to 3 Inch H2O (0 to 7.5 mbar)

10X

750P5IN 0 to 5 Inch H2O (0 to 12.5 mbar)

6X

750P017 0 to 10 inH2O (0 to 25 mBar)

3X

750P02 0 to 1 psi (0 to 70 mBar)

3X

750P22 0 to 1 psi (0 to 70 mBar)

3X

750P03 0 to 5 psi (0 to 350 mBar)

3X

750P23 0 to 5 psi (0 to 350 mBar)

4X

750P04 0 to 15 psi (0 to 1 bar)

3X

750P247 0 to 15 psi (0 to 1 bar)

4X

Model Reference uncertainty4

Total uncertainty 1-year (15-35°C)

750P00 ±0.15%

±0.3%

750P3IN ±0.15%

±0.3%

750P5IN ±0.15%

±0.3%

750P017 ±0.1%

±0.2%

750P02 ±0.050%

±0.1%

750P22 ±0.050%

±0.1%

750P03 ±0.02%

±0.04%

750P23 ±0.02%

±0.04%

750P04 ±0.0175%

±0.035%

750P247 ±0.0175%

±0.035%

750P057 0 to 30 psi (0 to 2 bar)

4X

750P067 0 to 100 psi (0 to 7 bar)

4X

750P277 0 to 300 psi (0 to 20 bar)

4X

750P07 0 to 500 psi (0 to 35 bar)

4X

750P08 0 to 1000 psi (0 to 70 bar)

3X

750P097 0 to 1500 psi (0 to 100 bar)

3X

750P2000 0 to 2000 psi (0 to 140 bar)

3X

750P057 ±0.0175%

±0.035%

750P067 ±0.0175%

±0.035%

750P277 ±0.0175%

±0.035%

750P07 ±0.0175%

±0.035%

750P08 ±0.0175%

±0.035%

750P097 ±0.0175%

±0.035%

750P2000 ±0.0175%

±0.035%

750P29 0 to 3000 psi (0 to 200 bar)

3X

750P30 0 to 5000 psi (0 to 340 bar)

3X

750P31 0 to 10000 psi (0 to 700 bar)

2X

750P29 ±0.0175%

±0.035%

750P30 ±0.0175%

±0.035%

750P31 ±0.0175%

±0.035%

750PA3 0 to 5 psia (0 to 350 mBar)

4X

750PA47 0 to 15 psia (0 to 1 bar)

4X

750PA5 0 to 30 psia (0 to 2 bar)

4X

750PA6 0 to 100 psia (0 to 7 bar)

4X

750PA27 0 to 300 psia (0 to 20 bar)

4X

750PA7 0 to 500 psia (0 to 35 bar)

4X

750PA8 0 to 1000 psia (0 to 70 bar)

3X

750PA9 0 to 1500 psia (0 to 100 bar)

3X

750PA3 ±0.03%

±0.06%

750PA47 ±0.03%

±0.06%

750PA5 ±0.03%

±0.06%

750PA6 ±0.03%

±0.06%

750PA27 ±0.03%

±0.06%

750PA7 ±0.03%

±0.06%

750PA8 ±0.03%

±0.06%

750PA9 ±0.03%

±0.06%

750PV3 -5 psi (-350 mBar)

4X

750PV4 -15 psi (-1 bar)

4X

750PV3 ±0.03%

±0.06%

750PV4 ±0.03%

±0.06%

750PD2 -1 to 1 psi (-70 to 70 mBar)

4X

750PD3 -5 to 5 psi (-350 to 350 mBar)

4X

750PD10 -10 to 10 psi (-700 to 700 mBar)

4X

750PD4 -15 to 15 psi (-1 to 1 bar)

4X

750PD5 -15 to 30 psi (-1 to 2 bar)

4X

750PD50 -15 to 50 psi (-1 to 3.5 bar)

4X

750PD6 -15 to 100 psi (-1 to 7 bar)

4X

750PD7 -15 to 200 psi (-1 to 14 bar)

4X

750PD27 -15 to 300 psi (-1 to 20 bar)

4X

750PD2 ±0.05%

±0.1%

750PD3 ±0.03%

±0.06%

750PD10 ±0.025%

±0.05%

750PD4 ±0.0175%

±0.035%

750PD5 ± 0.0175%

± 0.035%

750PD50 ± 0.0175%

± 0.035%

750PD6 ± 0.0175%

± 0.035%

750PD7 ± 0.0175%

± 0.035%

750PD27 ± 0.0175%

± 0.035%

750R045 0 to 15 psi (0 to 1 bar)

3X

750R065 0 to 100 psi (0 to 7 bar)

4X

750R27 0 to 300 psi (0 to 20 bar)

4X

750R07 0 to 500 psi (0 to 35 bar)

4X

750R085 0 to 1000 psi (0 to 70 bar)

3X

750R29 0 to 3000 psi (0 to 200 bar)

3X

750R30 0 to 5000 psi (0 to 340 bar)

3X

750R315 0 to 10000 psi (0 to 700 bar)

2X

750RD5 -15 to 30 psi (-1 to 2 bar)

4X

750RD65 -12 to 100 psi (-0.8 to 7 bar)

4X

750RD27 -12 to 300 psi (-0.8 to 20 bar)

4X

750R045 ±0.01% of FS

±0.02% of FS

750R065 ±0.01% of FS

±0.02% of FS

750R27 ±0.01% of FS

±0.02% of FS

750R07 ±0.01% of FS

±0.02% of FS

750R085 ±0.01% of FS

±0.02% of FS

750R29 ±0.01% of FS

±0.02% of FS

750R30 ±0.01% of FS

±0.02% of FS

750R315 ±0.01% of FS

±0.02% of FS

750RD5 ±0.01% of FS

±0.02% of FS

750RD65 ±0.01% of FS

±0.02% of FS

750RD27 ±0.01% of FS

±0.02% of FS
