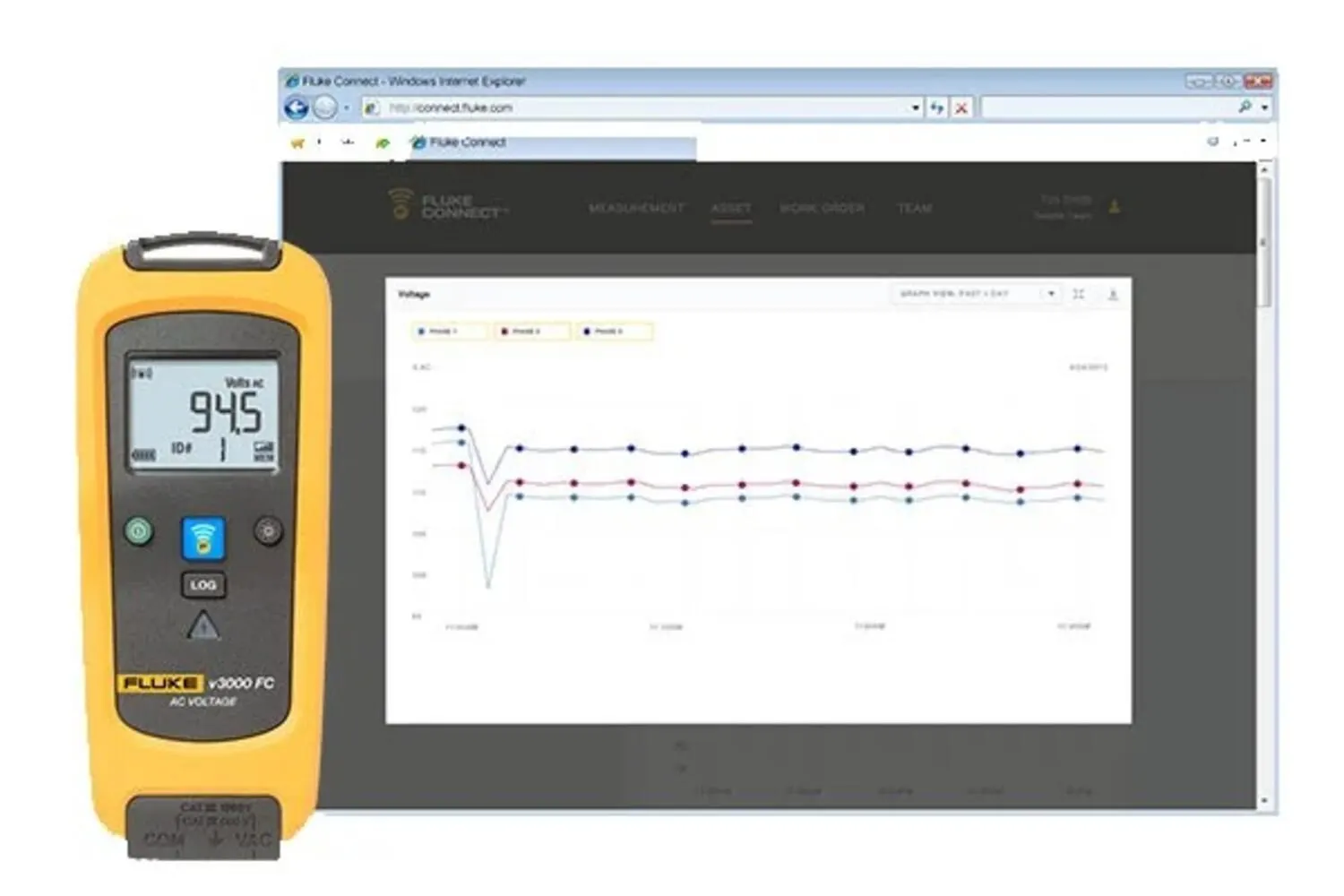

Fluke V3000 FC Wireless AC Voltage Module

A fully functional AC voltage meter that wirelessly relays AC voltage measurements to other Fluke Connect® enabled master units

Manufacturer part number (MPN)

4401556

Brand

Fluke

Category

Tools

Range¹ / Resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V

Accuracy234 45 Hz to 500 Hz

1.0% + 3

Accuracy234 500 Hz to 1 kHz

2.0% + 3

LCD w/backlight

3½ digits, 6000 counts, updates 4/sec

Battery type

2 AA, NEDA 15 A, IEC LR6

Battery life

400 Hours

Memory

Record up to 65000 readings

RF communications

2.4 GHZ ISM Band

RF communication range Open air, unobstructed

Up to 20 m

RF communication range Obstructed, sheetrock wall

Up to 6.5 m

Obstructed, concrete wall or steel electrical enclosure

Up to 3.5 m

Operating temperature

-10°C to +50°C

Storage temperature

-40°C to +60°C

Temperature coefficient

0.1 X (specified accuracy)/°C ( 28°C)

Operating humidity

90% at 35°C, 45% at 40°C, 45% at 50°C

Altitude Operating

2,000 m

Altitude Storage

12,000 m

EMC

EN 61326–1:2006

Safety compliance ANSI/ISA 61010–1 / (82.02.01)

3rd edition

Safety compliance CAN / CSA–C22.2 No 61010–1–12

3rd edition

Safety compliance UL 61010–1

3rd edition

Safety compliance IEC/EN 61010–1

2010

Safety rating

CAT IV 600 V, CAT III 1000 V

Certifications

CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE

Ingress Protection (IP) rating

IP42

Pollution Degree

2

Size (HxWxD)

16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in)

Weight

.22 kg (8 oz)

Warranty

Three years
