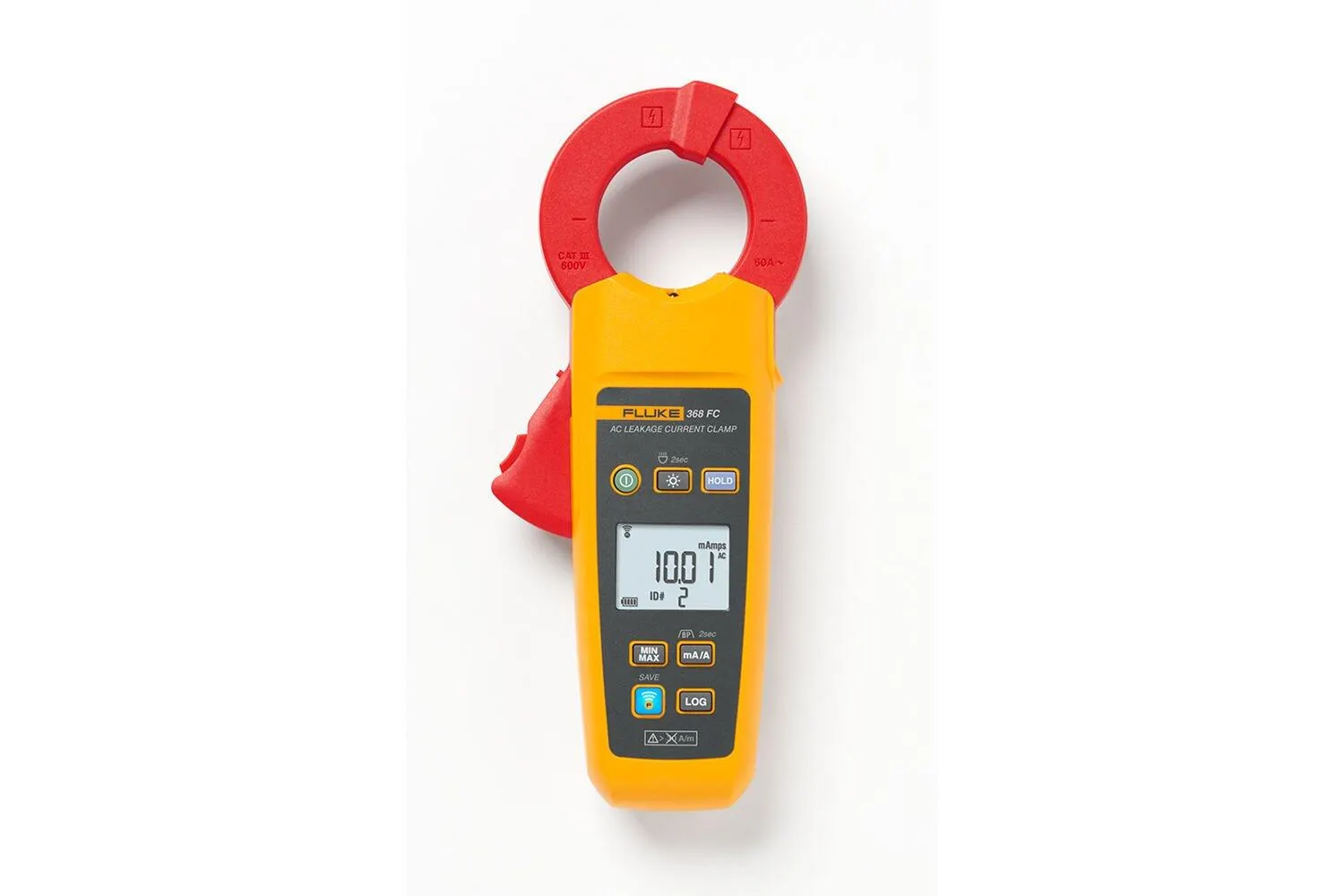

Fluke 368 FC Leakage Current Clamp Meter

The Fluke 368 FC true-rms leakage current clamp meter helps you measure small problems before they become large problems, all without taking equipment off line.

Manufacturer part number (MPN)

4709907

Brand

Fluke

Category

Tools

Measurement function

Alternating current

AC ampere range

3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A

Range / Resolution

3 mA¹ / 0.001 mA

3 mA – 30 A 60 A

1% + 5 digits 2% + 5 digits

Frequency

40 Hz to 1 kHz

Crest Factor

3

Display (LCD)

Digital readout: 3300 count

Display refresh rate

4 times / sec

Maximum conductor diameter

40 mm

Dimensions

234 x 101 x 46 mm

Weight

500 g

Battery

2 AA, IEC LR6, NEDA 15A, alkaline

Battery life

Expected battery life, without using backlight and spotlight, is more than 150 hours

Automatic shut-down

Meter automatically shuts down after 15 minutes of inactivity

General safety

IEC 61010-1: Pollution Degree 2

Measurement safety

IEC 61010-2-032: CAT III 600 V / CAT IV 300 V

Operating temperature

-10 °C to +50 °C

Storage temperature

-40 °C to +60 °C

Operating humidity

Non-condensing (

Protection class

IEC 60529: IP30 (jaw closed)

Operating altitude

2000 m

Storage altitude

12000 m

Current sensor action category

IEC 61557-13: Class 2, ≤30 A / m

IEC 61326-1

Industrial Electromagnetic Environment

CISPR 11

Group 1 Class B

Group 1

Generated inside the equipment and / or use radio frequency energy associated with conducting the energy for the device's own internal functions is essential.

HS Code

9030.33
