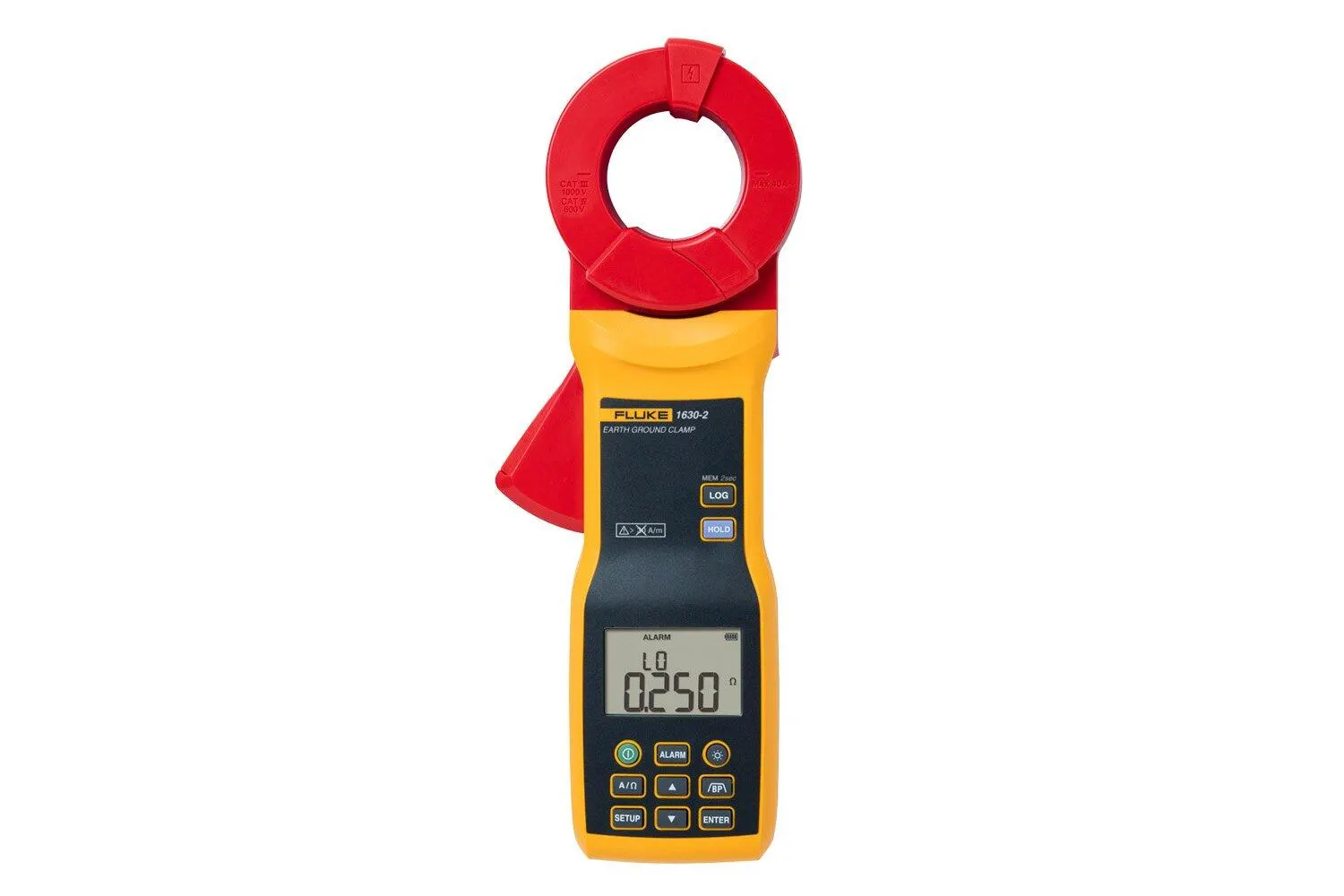

Fluke 1630-2 FC Earth Ground Clamp

The Fluke 1630-2 FC Stakeless Earth Ground Clamp is a heavy-duty clamp jaw that allows you to test the grounding components of equipment in hard-to-reach spaces.

Manufacturer part number (MPN)

4829532 Brand: Fluke Category: Tools Maximum voltage to earth ground: 1000 V Battery type: AA alkaline IEC/EN LR6 (x4) Battery life: More than 15 hours* Frequency range: 40 Hz to 1 kHz Ingress protection: IEC/EN 60529: IP30 with jaw closed LCD digital reading: 9999 counts LCD Refresh rate: 4 per second Storage temperature: -20 °C to + 60 °C Operating humidity: Non condensing (<10 °C) (< 50 °F) Operating altitude: 2000 m (6561 feet) Storage altitude: 12 000 m (39,370 feet) Reference temperature: 23 °C ±5 °C (73 °F ±9 °F) Temperature coefficient: 0.15% x (specified accuracy)/ °C (28 °C [82.4 °F]) Overload indication: OL Data logging capacity: minimum of 32,760 measurements Data logging interval: 1 second to 59 minutes and 59 seconds Input (Ω) minimum: Maximum General: IEC/EN 61010-1: Pollution Degree 2 IEC/EN 61557-1 Measurement: IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V Current clamp for leakage current measurements: IEC/EN 61557-13: Class 2, ≤30 A/m Resistance to earth: IEC/EN 61557-5 Effectiveness of thepProtective measures: IEC/EN 61557-16 Electromagnetic compatibility (EMC) International: IEC/EN 61326-1: Portable Electromagnetic Environment Electromagnetic compatibility (EMC) Korea (KCC): Class A equipment (Industrial Broadcast & Communications Equipment) Electromagnetic compatibility (EMC) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 Output power: <10 mW Radio frequency certification: FCC ID:T68-FBLE IC:6627A-FBLE Conductor size: 40 mm (1.57 in) approximately Dimensions (L x W x H): 283 x 105 x 48 mm (11.1 x 4.1 x 1.9 in) Weight: 880g (31 oz) Warranty: One year Range: Accuracy1 ± (% of reading + Ω) 0.025 Ω to 0.249 Ω: 1.5% + 0.02 Ω 0.250 Ω to 0.999 Ω: 1.5% + 0.05 Ω 1.000 Ω to 9.999 Ω: 1.5% + 0.10 Ω 10.00 Ω to 49.99 Ω: 1.5% + 0.30 Ω 50.00 Ω to 99.99 Ω: 1.5% + 0.50 Ω 100.0 Ω to 199.9 Ω: 3.0% + 1.0 Ω 200.0 Ω to 399.9 Ω: 5.0% + 5.0 Ω 400 Ω to 599 Ω: 10.0% + 10 Ω 600 Ω to 1500 Ω: 20.00% Range Resolution: Accuracy1 ± (% of reading + mA) 0.200 mA to 3.999 mA 1 μA: 2.0% + 0.05 mA 4.00 mA to 39.99 mA 10 μA: 2.0% + 0.03 mA 40.0 mA to 399.9 mA 100 μA: 2.0% + 0.3 mA 0.400 A to 3.999 A 1 mA: 2.0% + 3 mA 4.00 A to 39.99 A 10 mA: 2.0% + 30 mA

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/earth-ground/fluke-1630-2-fc
